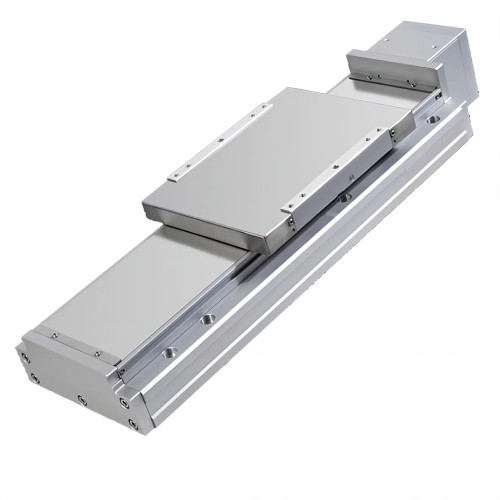

Installation Guidelines for Linear Slide Rails: Alignment, Mounting, and Calibration

Practical steps to ensure smooth motion and long-term system stability.





The installation of linear slide rails is a critical process that directly influences the performance and longevity of the entire mechanical system. Whether applied in robotics, CNC machines, or automated assembly lines, proper installation ensures smooth, efficient, and precise movement. Misalignment or incorrect mounting can result in increased friction, excessive wear, and reduced accuracy, which will, in turn, negatively affect the overall system reliability. In this article, we will explore the essential steps required for aligning, mounting, and calibrating linear slide rails to ensure long-term stability and consistent motion.







Before beginning the installation of linear slide rails, it is important to ensure that all the necessary tools, materials, and environmental conditions are in place.



Ensure clean working conditions



Dust, dirt, and other contaminants can cause serious damage to the rail and its components. A clean, dust-free environment is essential to prevent foreign particles from interfering with the smooth movement of the rail. Prior to installation, the area around the machine should be thoroughly cleaned to ensure that the rails remain free from contaminants.



Check rail specifications and alignment requirements



Verify the specifications for the rail, including its dimensions, material, load capacity, and intended application. Understanding these requirements will guide the alignment and mounting process. Ensure that the rail matches the design and configuration of the system in which it will be installed.



















The stability and alignment of the linear slide rail depend heavily on the quality and condition of the surface to which it is mounted.



Inspect and prepare mounting surfaces



The mounting surface should be flat, rigid, and free from imperfections. A warped or uneven surface can introduce misalignment and lead to poor rail performance. Engineers should use a precision level and surface plate to ensure the mounting surface is within acceptable tolerance limits. Any imperfections or warping should be corrected before proceeding.



Surface cleaning and lubrication



Clean the surface thoroughly to remove grease, oil, and debris that may interfere with proper rail installation. For certain systems, applying a thin layer of grease or oil on the mounting surface can help prevent corrosion and reduce friction. Be sure to use lubrication that is compatible with the materials of the rail and the mounting surface.

























Achieving proper alignment is one of the most important steps in the installation process. Misalignment can lead to uneven wear, increased friction, and misoperation of the system. It is essential to take care during this stage to ensure the rail is installed with precision.



Use alignment tools and instruments



To achieve precise alignment, engineers should use specialized tools such as dial indicators, laser alignment devices, or optical levels. These tools help in confirming that the rail is parallel to the intended motion direction and aligned with the system’s design requirements.



Install the rail with proper tolerances



Ensure the rail is aligned with the surface and secured at the correct angle. Typically, linear slide rails need to be aligned to within a fraction of a millimeter, depending on the application’s precision requirements. Misalignment can result in binding, inaccurate positioning, or uneven load distribution, all of which can lead to premature rail wear.







Once the rail is properly aligned, the next step is securely mounting it to the machine structure.



Tightening and securing the mounting bolts



The rail should be fastened using the appropriate bolts and torque specifications as provided by the manufacturer. Over-tightening or under-tightening can cause warping, lead to misalignment, or damage the rail. It is essential to apply even torque across all fastening points. Use a torque wrench to achieve the required tightening torque.



Avoiding stress concentration



Mount the rail in such a way that it is evenly supported along its entire length. Stress concentration at any point can lead to deformation or failure under load. If necessary, use spacers or additional support brackets to distribute forces evenly and maintain the integrity of the rail system.







After the rail is mounted, calibration ensures that the motion system operates within the required specifications. Calibration helps achieve the highest level of accuracy, repeatability, and smoothness.



Check for smoothness of motion



Manually move the slide along the rail to ensure there is no binding, roughness, or uneven resistance. A smooth, consistent movement is a good indicator that the rail is properly installed. Any irregularity in movement suggests an issue with alignment, mounting, or the rail itself.



Verify parallelism and straightness



Using precision measurement tools, verify that the rail is parallel and that the slide moves along the intended path without deviation. Even small errors in straightness can result in significant performance issues over time. If the system includes multiple rails, ensure that they are aligned to each other within specified tolerances.



Perform load testing



Once the system is aligned and calibrated, engineers should conduct a series of load tests to ensure that the rail performs under typical working conditions. These tests should simulate the maximum expected loads and motion profiles, verifying that the system can handle the stresses without distortion or failure. Monitoring during this phase allows for fine-tuning of preload, alignment, or lubrication.







After installation and calibration, periodic checks are necessary to maintain the system’s stability and performance over time.



Check for any signs of wear or misalignment



Over time, linear slide rails may experience slight wear, misalignment, or degradation of lubrication. It is important to schedule routine inspections to detect any issues early. Regular maintenance can prevent minor issues from becoming major problems, ensuring the system remains reliable for the long term.



Reapply lubrication as needed



Ensure that the lubrication system is functioning as intended, and replenish lubrication as necessary to maintain smooth motion. The frequency of lubrication will depend on the system’s usage, operating environment, and the type of lubricant used.
