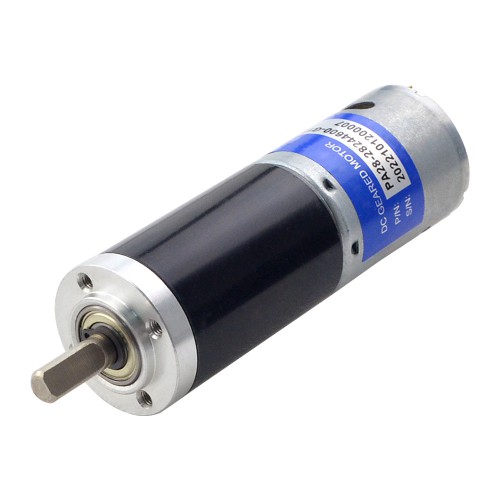

24V Brushed DC Geared Motor PA28-28245800-G189 57.82N.cm/24RPM with 189:1 Planetary Gearbox
- Manuals and Documentation: Full Datasheet:
24V Brushed DC Geared Motor PA28-28245800-G189 57.82N.cm/24RPM with 189:1 Planetary Gearbox
This is a standard 24 volt brushed DC gear motor, generating 5.9 kg.cm of torque at 24 rpm. It's a small motor suitable for low torque, high speed applications. Combined with a 189:1 planetary gearbox, this motor will provide greater efficiency, higher torque, and quieter motor operation.
Electrical Specification
Part Number: PA28-28245800-G189
Rated Voltage: 24V
Rated Torque: 5.9kg.cm(81.93oz.in)
Rated Current: 190mA
Rated Speed: 24rpm
Rated Power: 2.45W
No-load Current: 80mA
No-load Speed: 30rpm
Rotation Direction: CW/CCW
Motor Type: Brushed DC Motor
Gearbox Specification
Gearbox Type: Planetary
Gear Ratio: 189 : 1
Max. Permissible Torque: 20kg.cm
Moment Permissible Torque(within 30S): 60kg.cm
Max. Permissible Radial Load: <=20N
Max. Permissible Axial Load: <=10N
Physical Specification
Motor Size: Φ27.7 x 38mm
Gearbox Size: Φ28 x 44.5mm
Shaft Diameter: Φ6mm
Shaft Length: 18mm
D-cut Length: 12mm
Electrical Specification | |
---|---|
Rated Current (A) | 0.19 |
Motor Type | Brushed DC Motor |
Rated Power(W) | 2.45 |
Rated Voltage(V) | 24 |
Rated Torque(kg.cm) | 5.9 |
Rated Speed(rpm) | 24 |
Physical Specification | |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 18 |
Gear Ratio | 189 |
Output Shaft Type | D-cut |
