Nema 14 (Φ36x20mm) Round Stepper Motor 14HR08-0654S 4.6V 0.9 deg 8.5Ncm 4 Wires
-
Manuals and Documentation:
Full Datasheet:
Torque Curver:
Nema 14 (Φ36x20mm) Round Stepper Motor 14HR08-0654S 4.6V 0.9 deg 8.5Ncm 4 Wires

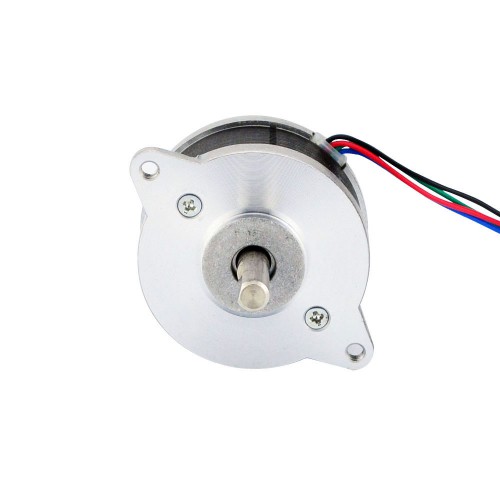

This round hybrid bipolar Nema 14 stepper motor with step angle 0.9deg and size Φ36x20mm. It has 4 wires, each phase draws 0.65A at 4.6V, with holding torque 8.5Ncm (12oz.in).
Electrical Specification
- Manufacturer Part Number: 14HR08-0654S
- Motor Type: Bipolar Stepper
- Step Angle: 0.9 deg
- Holding Torque: 8.5Ncm (12oz.in)
- Rated Current/phase: 0.65A
- Voltage: 4.6V
- Phase Resistance: 7ohms
- Inductance : 6.0mH ± 20%(1KHz)
Physical Specification
- Frame Size: Φ36mm
- Body Length: 19.5mm
- Shaft Diameter: Φ5mm
- Shaft Length: 15.5mm
- D-cut Length: 10mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 100g
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Holding Torque (Ncm) | 8.5 |
Holding Torque (oz.in) | 12 |
Inductance(mH) | 6 |
Phase Resistance(ohm) | 7 |
Rated Current (A) | 0.65 |
Step Angle(°) | 0.9 |
Physical Specification | |
Body Length(mm) | 19.6 |
Frame Size(mm) | Ф36.5 |
Single Shaft/Dual Shaft | Single Shaft |
Shaft Type | D-Cut |
Shaft Diameter(mm) | 5 |
Shaft Length(mm) | 15 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
Weight(g) | 130 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
