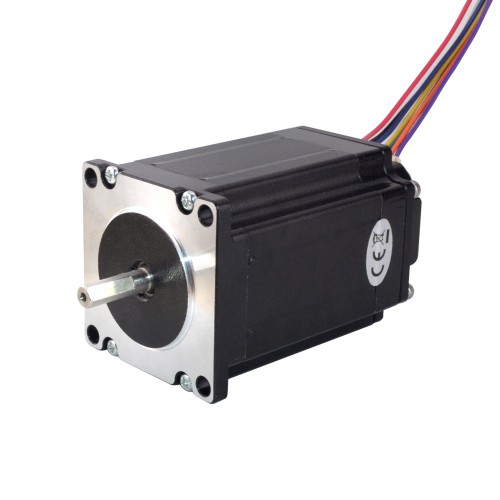

Nema 23 Integrated Stepper Motor 190Ncm with Driver ISC04 12-38VDC(out of stock)
- Manuals and Documentation: Full Datasheet:
Nema 23 Integrated Stepper Motor 190Ncm with Driver ISC04 12-38VDC
Electrical Specifications:
- Manufacturer Part Number: ISC04-20
- Step Angle: 1.8 deg
- Holding Torque: 190 Ncm(269oz.in)
- Rated Current/phase: 2.8 A
- Phase Resistance: 1.13 ohms
- Inductance: 5.4 mH ± 20%(1KHz)
Physical Specifications:
- Frame Size: 57 x 57 mm
- Body Length: 96 mm
- Shaft Diameter: Φ6.35 mm
- Shaft Length: 21 mm
- Weight: 1230 g
Driver Specifications:
- Output Peak Current: 1.5 - 4 A
- Input Voltage: 12 - 38 VDC
- Speed control through external potentiometer 0. 75 - 1250 RPM
- Isolation Resistance: More than 100 MΩ
- Dielectric strength: 500VAC for 1MIN.
Connection
V+
|
GND
|
ENA
|
ON
|
H/L
|
DIR
|
Vr
|
SPD
|
Red
|
Black
|
Blue
|
White
|
Yellow
|
Green
|
Orange
|
Purple
|
Integrate Stepper Servo Motor Specification | |
---|---|
Input Voltage (V) | 12 - 38 |
Electrical Specification | |
Holding Torque (Ncm) | 190 |
Holding Torque (oz.in) | 269 |
Phase Resistance(ohm) | 1.13 |
Rated Current (A) | 2.8 |
Step Angle(°) | 1.8 |
Stepper Driver Specification | |
Output Current(A) | 1.5 - 4 |
Physical Specification | |
Body Length(mm) | 96 |
Frame Size(mm) | 57 x 57 |
Shaft Diameter(mm) | 6.35 |
Shaft Length(mm) | 21 |
