Nema 8 Non Captive Linear Actuator 30mm Stack Lead 4mm/0.15748" 8LS11-0244AD-150N
- Manuals and Documentation: Full Datasheet:
Nema 8 Non Captive Linear Actuator 30mm Stack Lead 4mm/0.15748" 8LS11-0244AD-150N

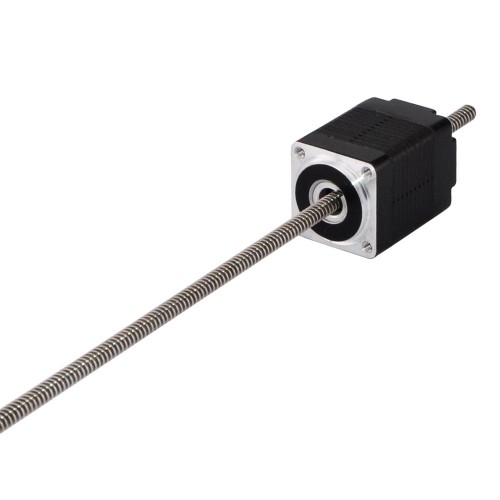

This model is almost exactly same as Haydon Kerk 21000 series size 8 non-captive stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it works with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw, the linear travel is 4mm (0.15748") per revolution.
Electrical Specification
- Manufacturer Part Number: 8LS11-0244AD-150N
- Motor Type: Non-captive Linear Stepper
- Step Angle: 1.8°
- Minimal Thrust: 10N (300pps)
- Rated Current/phase: 0.24A
- Phase Resistance: 20.4ohms
- Voltage: 5V
- Inductance: 3.88mH±20%(1KHz)
Physical Specification
- Frame Size: 20 x 20mm
- Body Length: 30mm
- Lead Screw Length: 150mm(5.9055")
- Lead Screw Diameter: Φ3.5mm(0.1378")
- Lead/Step: 0.02mm(0.0007874 " )
- Lead Travel/Revolution: 4mm(0.15748")
- Number of Leads: 4
- Lead Length: 300mm
- Weight : 43g
Connection
A+
|
A-
|
B+
|
B-
|
Red
|
Red/White
|
Green/White
|
Green
|
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 3.83 |
Minimal Thrust(N) | 10 |
Motor Type | Non-Captive |
Phase Resistance(ohm) | 21.3 |
Rated Current (A) | 0.24 |
Step Angle(°) | 1.8 |
Physical Specification | |
Body Length(mm) | 30 |
Frame Size(mm) | 20x20 |
Lead Screw Diameter(mm) | 3.5 |
Lead Screw Length(mm) | 150 |
Lead Revolution(mm) | 4 |
Linear Travel / Step(mm) | 0.02 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
