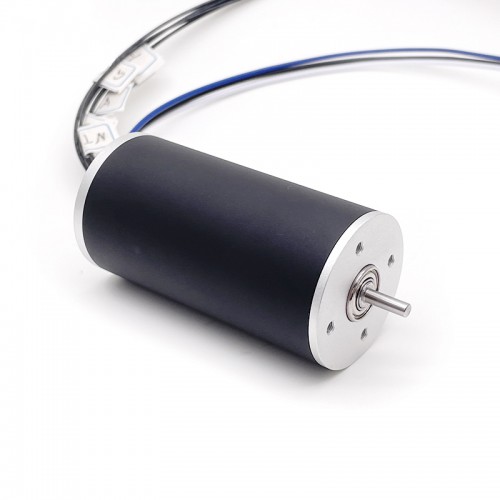

2Pcs Φ36mm 24/36V Brushless Coreless DC Motor TBC3670 1.2-2.4kg.cm 67-270W Shaft Diameter 3.175mm
- Manuals and Documentation:
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
2Pcs Φ36mm 24/36V Brushless Coreless DC Motor TBC3670 1.2-2.4kg.cm 67-270W Shaft Diameter 3.175mm
Features:
1. Large diameter: The diameter of this motor is 36 mm, which is relatively large compared to other similar motors. This allows it to provide greater torque and power output.
2. High voltage: The motor is designed to accept 24V or 36V DC power input. This high voltage input can provide higher efficiency and torque output.
3. Brushless motors: Compared with traditional brushless motors, brushless motors have higher efficiency, longer service life and lower noise levels. They are usually suitable for applications that require long running times and high loads.
4. Core-free design: Core-free design can reduce the weight and size of the motor and improve efficiency. In addition, it can reduce hysteresis loss and eddy current loss, thereby improving the efficiency and performance of the motor.
5. Can be equipped with gear reducer: gear reducer can convert the high speed of the motor into low speed and high torque output. This design can improve the load capacity and operation stability of the motor.
Application:
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Electrical Specification:
Part Number:TBC3670
Rated Voltage:24V / 36V
Rated Speed:5450(24V) / 10930rpm(36V)
Rated Current:7.5A(24V) / 14.5A(36V)
Rated Torque:1200g.cm (24V) / 2400g.cm(36V)
Rated Power:67W(24V) / 270W(36V)
Motor type:Brushless
Noise:30cm.40-50DB

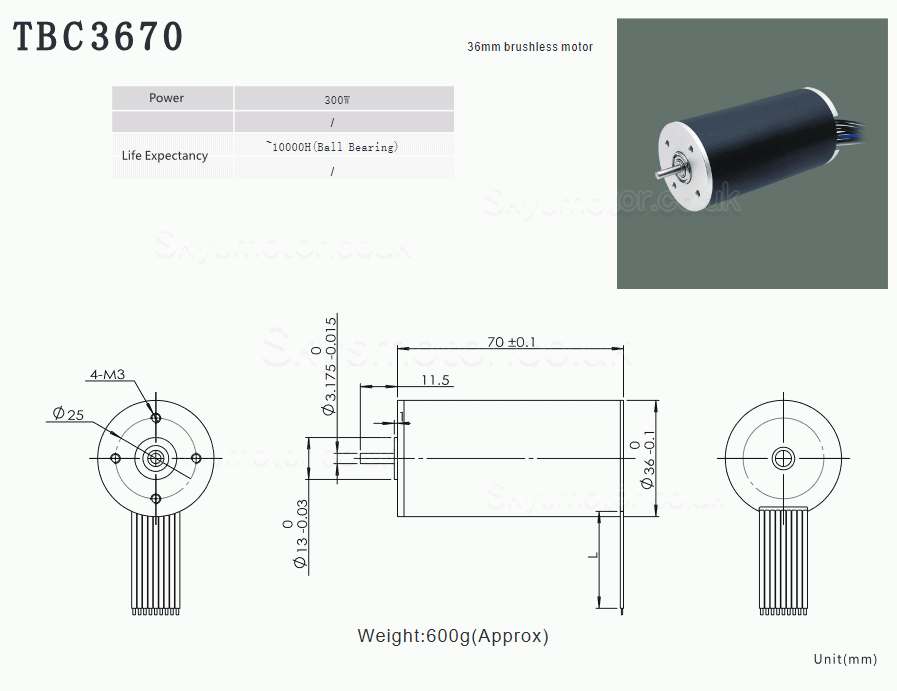

Physical Specification:
Motor Size:36*70mm
Motor Diameter:36mm
Length:70mm
Shaft Length:11.5mm
Shaft Diameter:3.17mm
Weight:600g;
Physical Specification | |
---|---|
Body Length(mm) | 70 |
Shaft Diameter(mm) | 3.175 |
Shaft Length(mm) | 10.5 |
Weight(g) | 600 |
Product Type | Brushless Motor |
Frame Size(mm) | Φ36 |
Shaft Type | O |
Single Shaft/Dual Shaft | Single Shaft |
Electrical Specification | |
Rated Power(W) | 67 / 270 |
Rated Voltage(V) | 24 / 36 |
Rated Torque(kg.cm) | 1.2 / 2.4 |
Rated Speed(rpm) | 5450 / 10930 |
Rated Current (A) | 7.5 / 14.5 |
