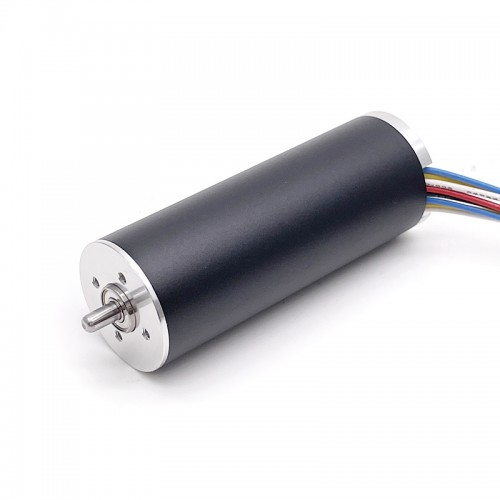

2Pcs Φ22mm 12/24V Brushless Coreless DC Motor TBC2260 0.8kg.cm 40W Shaft Diameter 2mm
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Features:
1) Using Hall sensor instead of motor brush to change the motor rotation, low noise.
2) Low electromagnetic interference, long service life, up to 20000 hours.
3) NdFeb magnet rotor.
4) Small size, light weight, PWM control.
5) Optional: lead length, shaft length, special coil, gear box, bearing type, Hall Sensor, encoder, driver;
Application:
BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, Hair dryer.
Electrical Specification:
Part Number:TBC2260
Rated Voltage:12-24V
Speed:11000/30000RPM
Continuous Current(A):3A
Rated Torque:800g.cm
Rated Power:40W
Motor type:Brushless
Efficiency:IE 4
Noise:30cm.40-50DB;
Physical Specification:
Motor Size: 22*60mm
Diameter:22mm
Length:60mm
Shaft diameter:2mm
Weight:200g;
Physical Specification | |
---|---|
Body Length(mm) | 60 |
Frame Size(mm) | Φ22 |
Shaft Diameter(mm) | 2 |
Weight(g) | 200 |
Shaft Type | O |
Single Shaft/Dual Shaft | Single Shaft |
Electrical Specification | |
Rated Power(W) | 40 |
Rated Voltage(V) | 12 / 24 |
Rated Torque(kg.cm) | 0.8 |
Rated Speed(rpm) | 11000 / 30000 |
Rated Current (A) | 3 |
