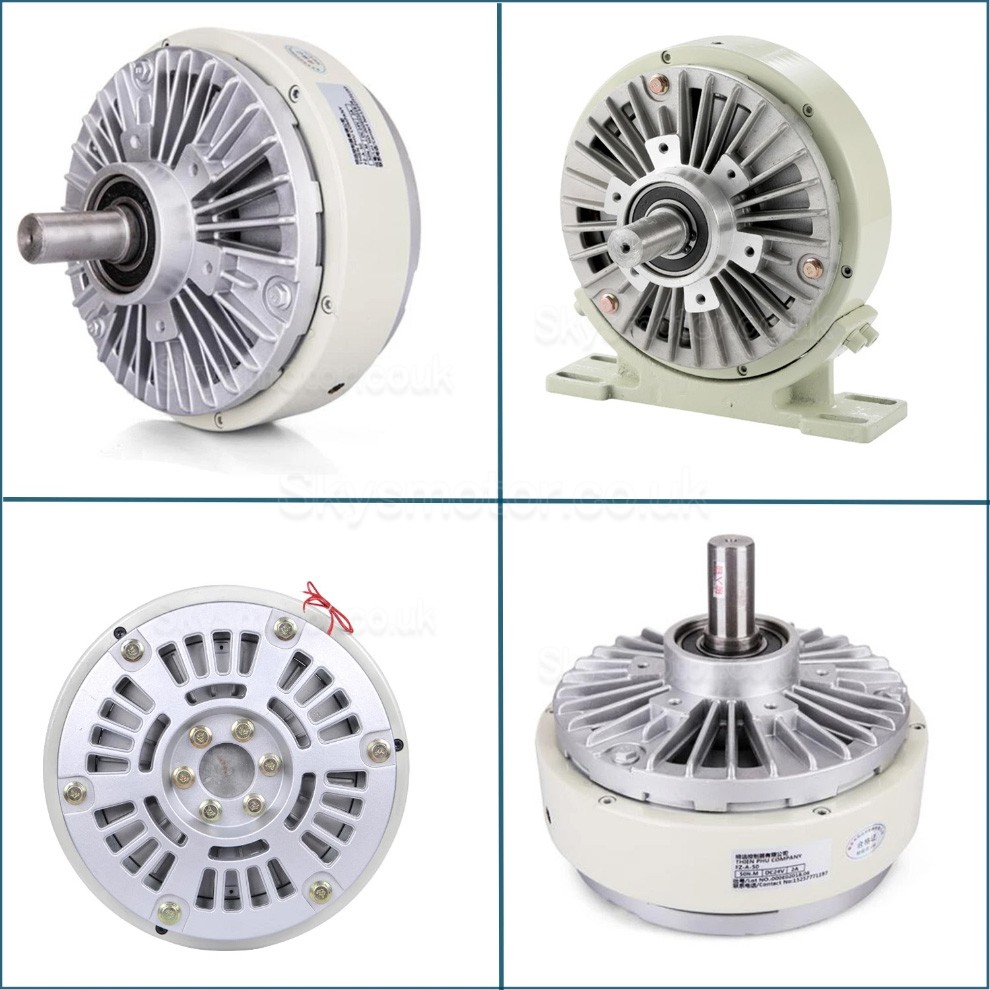

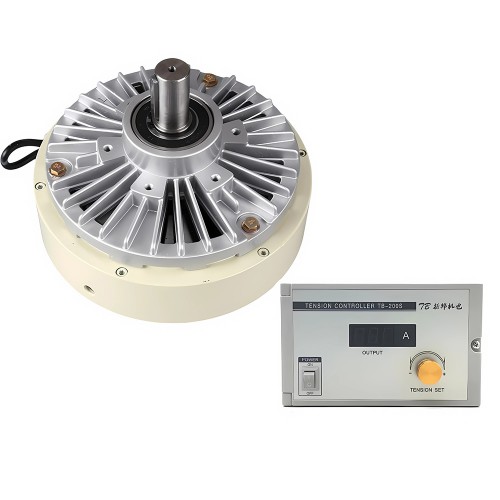

FK-D Series Single Shaft Magnetic Powder Particle Brake Kit 6Nm-50Nm with TBS-200A Tension Controller

FK-D Series Single Shaft Magnetic Powder Particle Brake Kit 6Nm-50Nm with TBS-200A Tension Controller

Features:
Adjustable torque range of 6-200N.m (0.6kg-20kg) with linear response for braking. No mechanical friction.

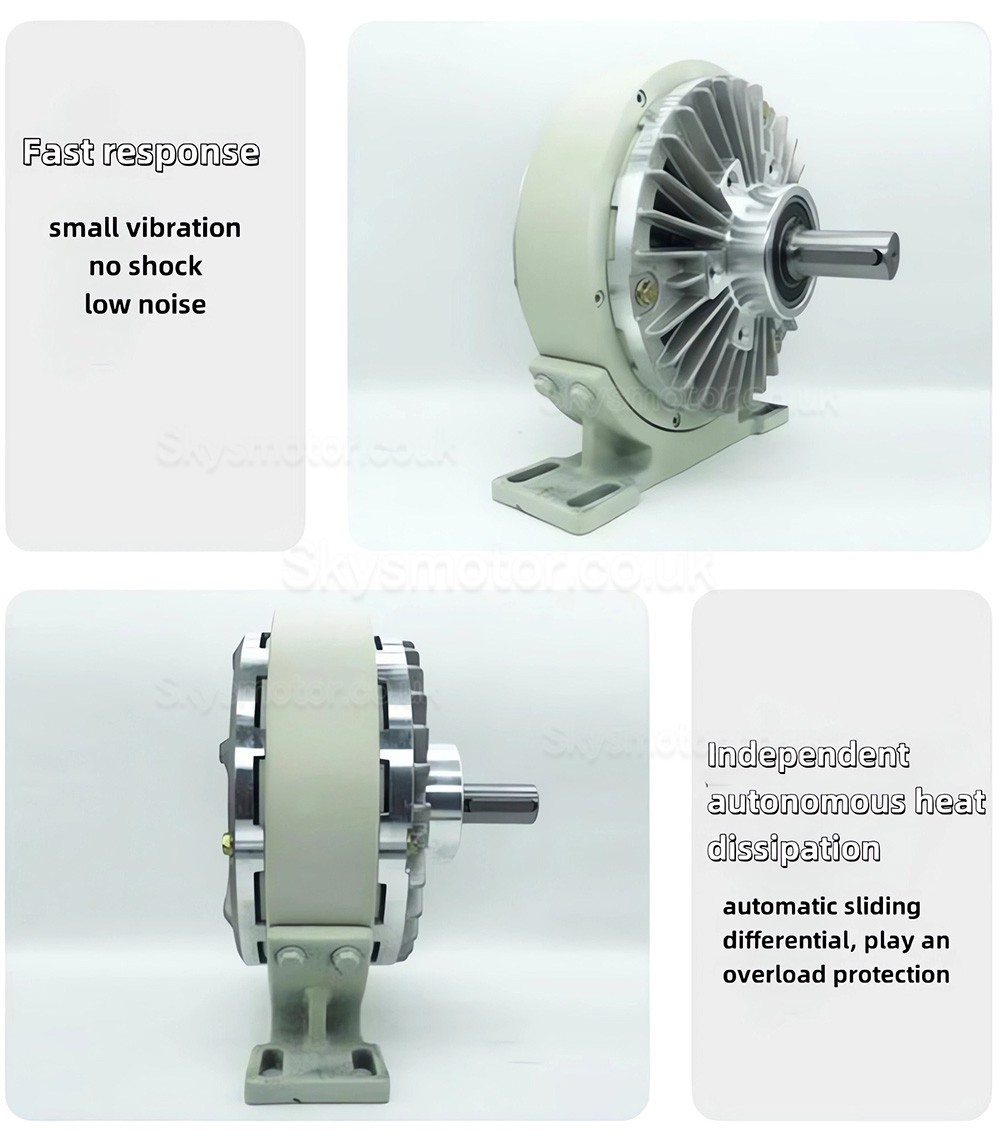

Millisecond-level response time. Industrial-grade alloy housing, operating temperature range: -20°C to 80°C.
Sealed magnetic powder chamber eliminates lubrication and dust contamination.

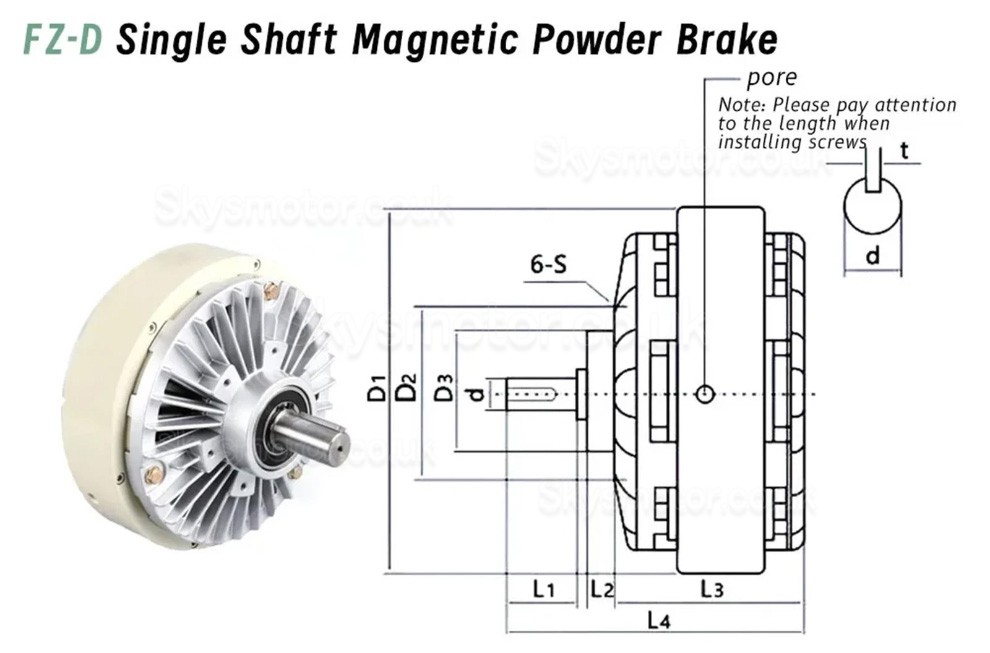

Works with 24VDC power supply and standard PLC/PWM control signals. Compact design with customizable shaft sizes for integration.

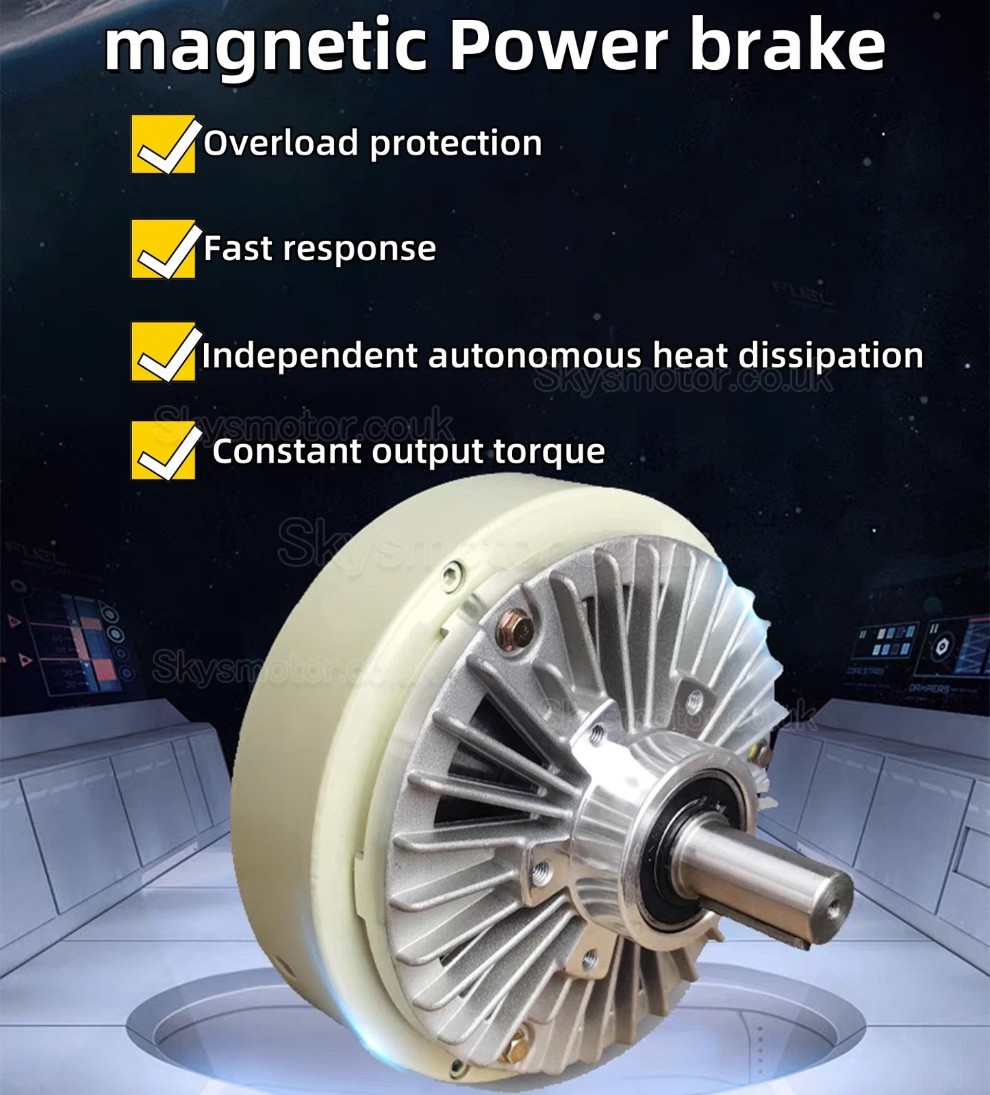

Overheat protection and fail-safe braking. Power consumption during activation.

Application Fields:
Printing & Packaging: Tension control for roll-to-roll labelers, film winders, and sheeters.
Textile Machinery: Yarn winding, loom braking, and thread tension regulation.
Industrial Automation: Conveyor overload protection, robotic arm safety stops.
Testing Equipment: Dynamometers, torque calibration, and load simulation.
Film Production: Tensioning for coating, laminating, or slitting lines.

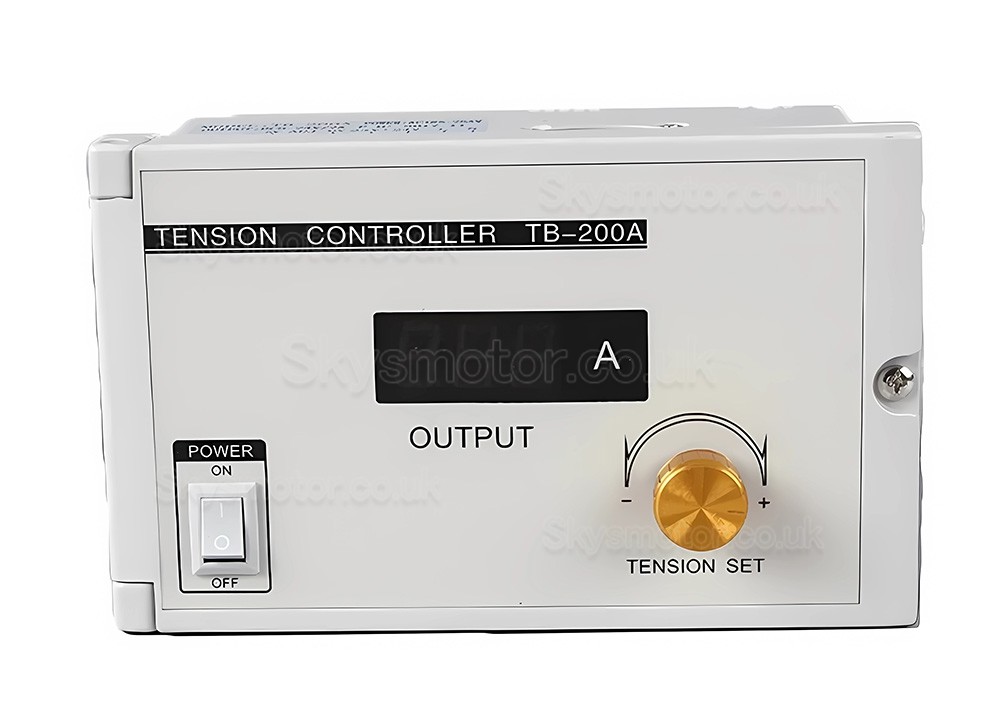

TB-200s Tension Controller Specification:
Input Voltage: AC 180V-265V, 50/60Hz
Output Voltage: DC 0-24V
Output Current: 0-3A
External Signal Control: 0-10VDC or 0-5VDC (switchable)
Precision: 0.01A
Control Type: Manual controller / PLC / Potentiometer
Overall Size: 160 x 100 x 70mm (width x height x depth)
Mounting Size: 163 x 103 x 70mm (width x height x depth)
Installation Methods: Wall-mounted, floor-mounted, or embedded
Control Method: Manual adjustment of switching power supply
Output Display: Digital display
Applicable Machines: Magnetic powder brake, magnetic powder clutch
Auxiliary Function: Fixed control current, short-circuit protection
Working Environment: Avoid exposure to corrosive gas, dust, or rainwater
Working Temperature: -10°C to 50°C
Working Humidity: Below 80%;
