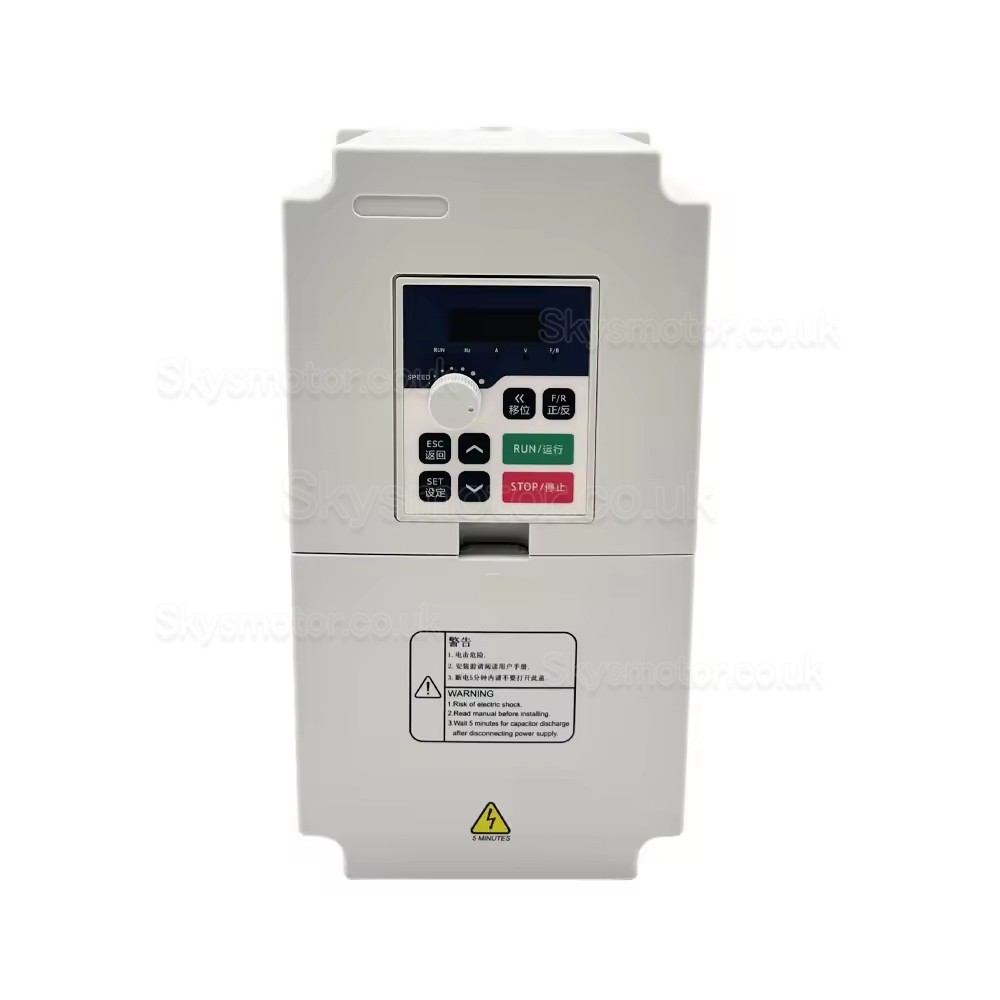

5.5KW VFD Spindle Drives Variable Frequency Drive H100-5.5S2/T4 220V/380V for CNC Spindle Motor and Engraving Machine

5.5KW VFD Spindle Drives Variable Frequency Drive H100-5.5S2/T4 220V/380V for CNC Spindle Motor and Engraving Machine

Parameters:

Model Number: H100-5.5S2-B1 / H100-5.5T4-B1

Type: DC/AC Inverter

Input Type: 1 Phase 220V/ Three-phase380V

Output Frequency: 0.1 - 1000 Hz

Power: 5.5Kw

Output Voltage: 1 Phase 220V/ Three-phase380V

Output Current: 25A (220V) / 12.5A (380V)

Weight: 4 KG

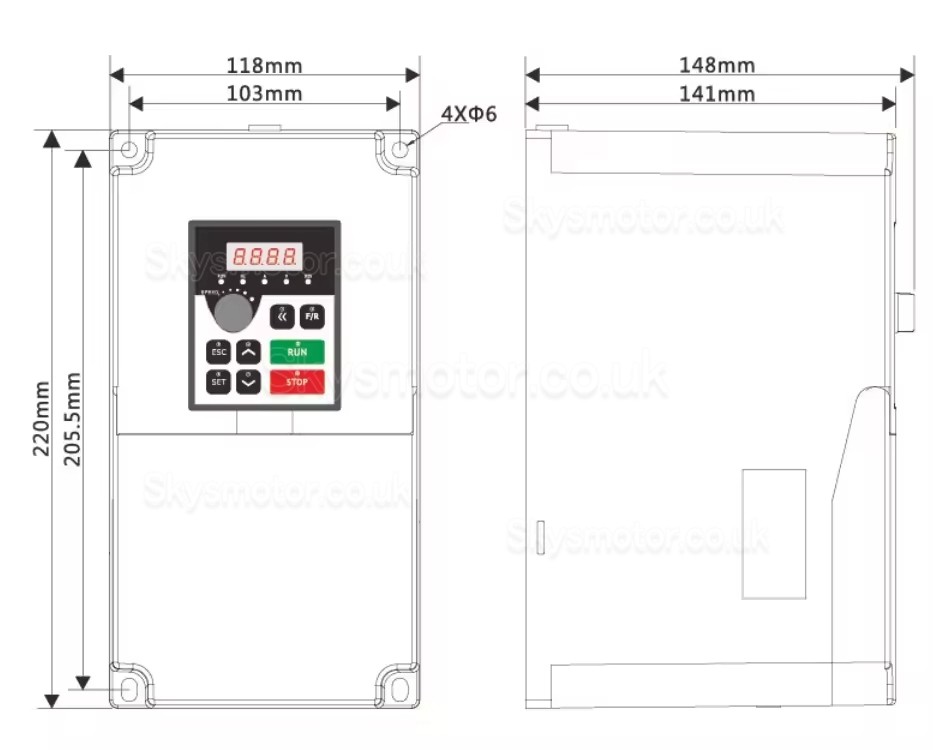

Dimensions (LWH): 118 * 220 * 141.5 mm;

Project Name: H100 Series

Control method: V/F

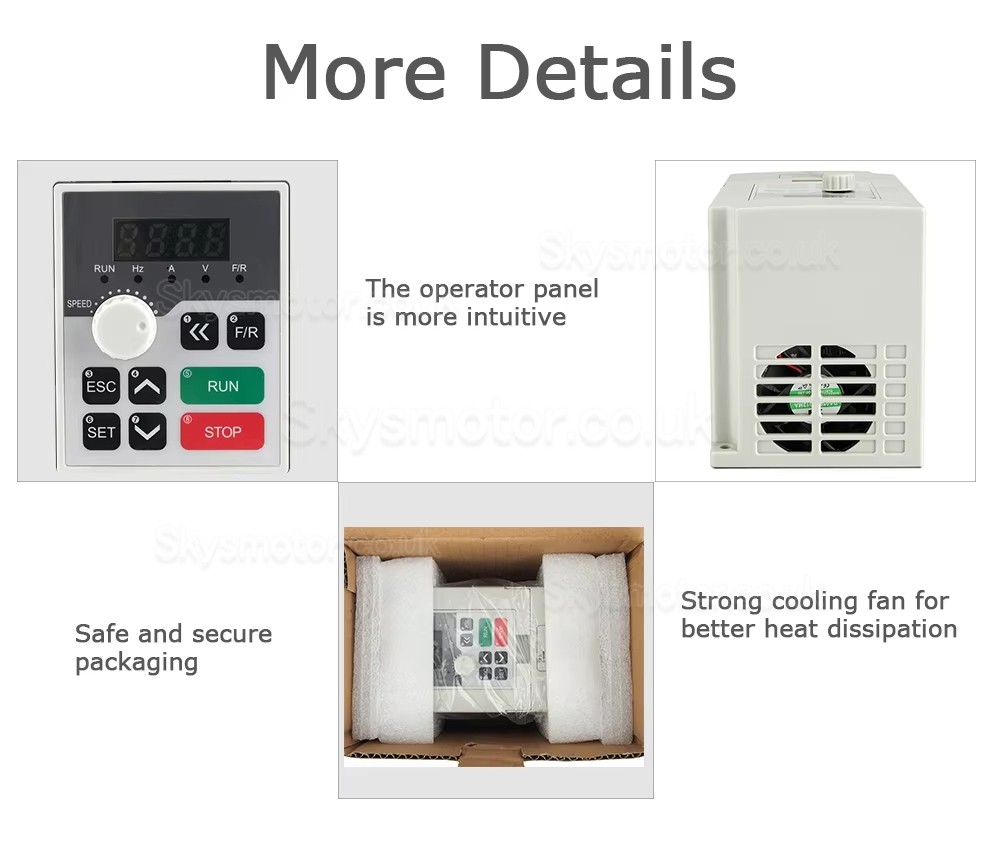

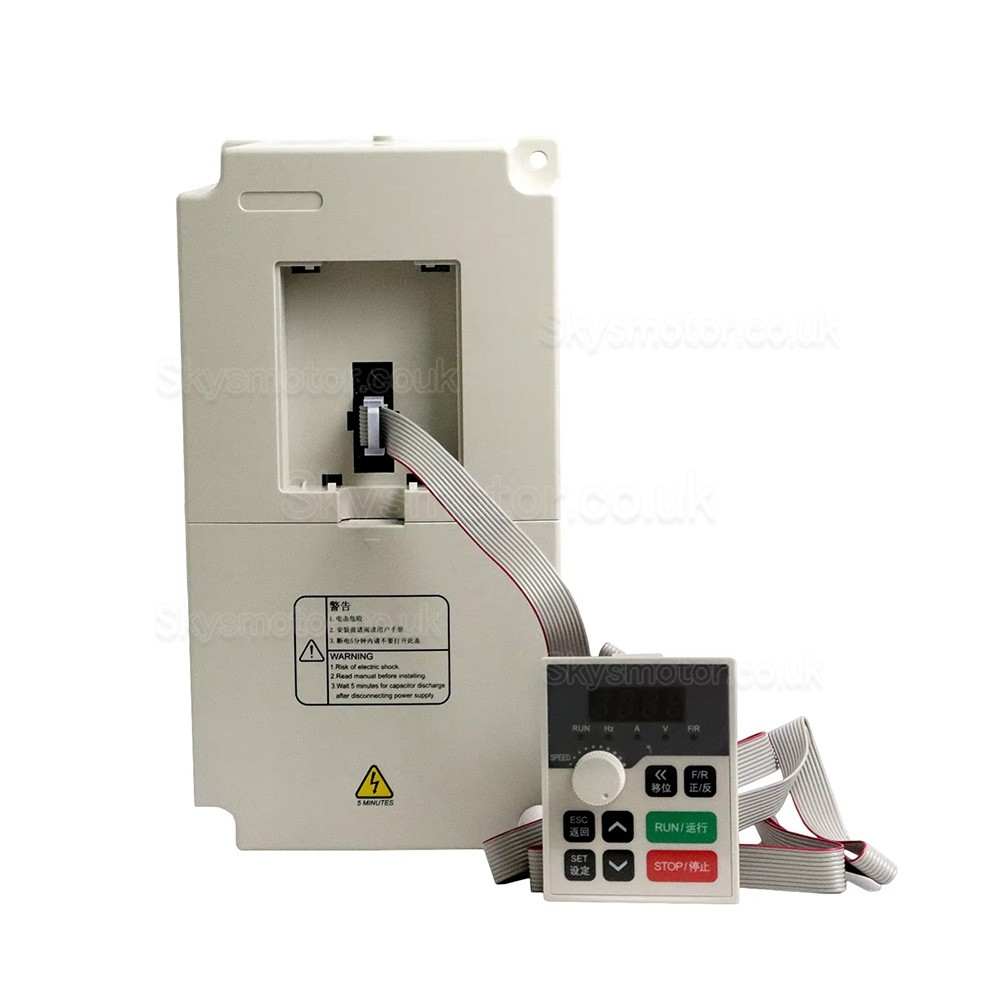

Four-digit display and status indicator lights: Displays frequency, current, rotational speed, voltage, counter, temperature, forward/reverse rotation status, and faults.

Communication Control: RS-485

Operating temperature: -10~40℃

Humidity: 0–95% relative humidity (no condensation)

Vibration: Below 0.5G

Frequency rate control Make

Scope: 0.1-1000.0Hz

Accuracy: Digital: 0.1% (-10–40℃); Analog: 0.1% (25 ± 10℃)

Set the resolution: Digital: 0.1 Hz; Analog: 1% of the maximum operating frequency

Output resolution: 0.1Hz

Operator setting method: Can be directly set using ←▲▼

Simulation setup method: External voltage: 0~5V, 0~10V, 4~20mA, 0~20mA

Other features: The three jump frequencies—lower frequency limit, start frequency, and stop frequency—can each be set independently.

One general control Make

Acceleration and Deceleration Control: 4 segments of acceleration and deceleration times (0.1 to 6500 seconds) can be selected arbitrarily.

Motor control mode:  V/F

Torque control: Torque boost can be set, up to a maximum of 10.0%; the starting torque can reach 150% at 1.0 Hz.

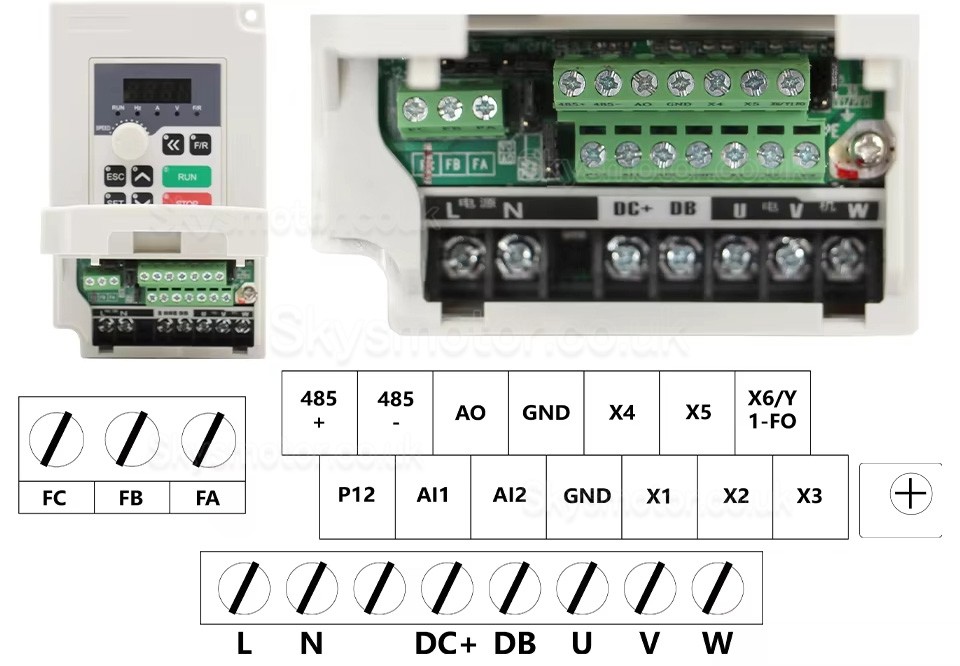

Multi-function input terminal:

6 programmable inputs for implementing 16-speed control, program execution, and 4-segment acceleration/deceleration switching.

UP, DOWN functions, counter, external emergency stop, and other features.

Multi-function output terminal: Channel 1 is programmable output; it provides indications and alarms for operating status, zero speed, counter, external faults, program execution, and more.

Other features:

Automatic Voltage Regulation (AVR), Deceleration Stop or Free Stop, DC Braking, Automatic Reset and Restart, Frequency Tracking,

PLC program control, traverse motion control, draw ratio control, automatic energy-saving operation, and adjustable carrier frequency (up to 20 kHz), among others.

Protect Protect merit Can

Overload protection: Electronic relay protection motor driver (constant torque 150%/1 minute, fan-type 120%/1 minute).

FUSE protection: The motor stops.

Overvoltage: 220V class: DC voltage > 390V; 380V class: DC voltage < 800V

Low voltage: 220V class: DC voltage < 200V; 380V class: DC voltage < 400V

Instant stop and restart: After a momentary stop, it can be restarted using frequency tracking.

Stall prevention: Prevention of stall during acceleration and deceleration.

Short circuit at the output end: Electronic Circuit Protection

Other features: Overheat protection for heat sinks, reverse rotation limitation, direct start-up immediately after power-on, fault reset, parameter locking, and more.
