4 Axis CNC Router Kit 4-DM542T-23HS45 3.0Nm Nema 23 Stepper Motor & Driver & Power Supply
-
Manuals and Documentation:
Motor Datasheet:
Motor Torque Curve:
Driver Manual:
Power Supply Manual:
4 Axis CNC Router Kit 4-DM542T-23HS45 3.0Nm Nema 23 Stepper Motor & Driver & Power Supply

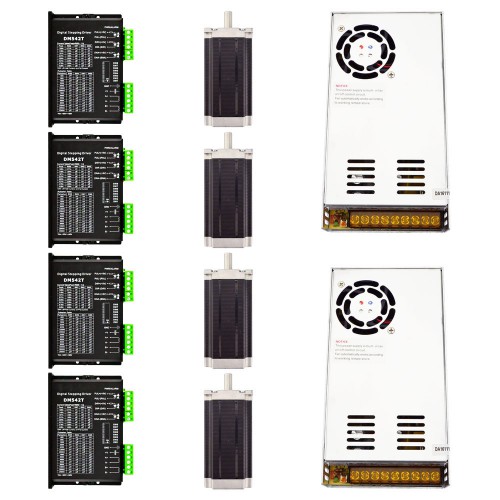

This CNC kit included:
- 4 x Digital Stepper Drive 1.0-4.2A 20-50VDC for Nema 17, 23, 24 Stepper Motor
- 4 x 3Nm (425oz.in) of Nema 23 Stepper Motor
- 2 x 250W 36V 7A 115/230V Switching Power Supply
Driver Specification
- Input voltage 20-50VDC
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
- 15 selectable microstep resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000
- Soft-start with no “jump” when powered on
- 8 selectable peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A
- Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR mode
- Over-voltage and over-current protections
Motor Specification
- Manufacturer Part Number: 23HS45-3504S
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 3Nm(425oz.in)
- Rated Current/phase: 3.5A
- Voltage: 4.2V
- Phase Resistance: 1.2ohms
- Inductance: 5mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 113mm
- Shaft Diameter: Φ10mm
- Shaft Length: 24mm
- D-cut Length: 20mm
- Number of Leads: 4
- Lead Length: 400mm
- Weight: 1.6kg
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Power Specification
- 36V DC 7A output
- AC input voltage range: 90~132V/180~264VAC
- 115V/230V AC selected by switch
- Forced air cooling by built-in DC fan
- Low output ripple and yawp
- Over current, over voltage, short circuit and overheat protections
- 215*115*50mm (L*W*H)
Motor Specification | |
---|---|
Step Angle(°) | 1.8 |
Body Length(mm) | 113 |
Holding Torque (Ncm) | 300 |
Holding Torque (oz.in) | 424.8 |
Inductance(mH) | 5 |
Lead Length(mm) | 400 |
Motor Nema Size | Nema 23 |
No. of Lead | 4 |
Phase Resistance(ohm) | 1.2 |
Rated Current (A) | 3.5 |
Shaft Diameter(mm) | 10 |
Shaft Length(mm) | 24 |
Stepper Driver Specification | |
Driving Voltage(V) | 20 - 50 |
Output Current(A) | 1 - 4.2 |
Microstep(Steps/rev.) | 400 - 25600 |
Max. Pulse Input(kHZ) | 200 |
Pulse Width(μs) | 2.5 |
Physical Specification | |
Weight(g) | 10250 |
