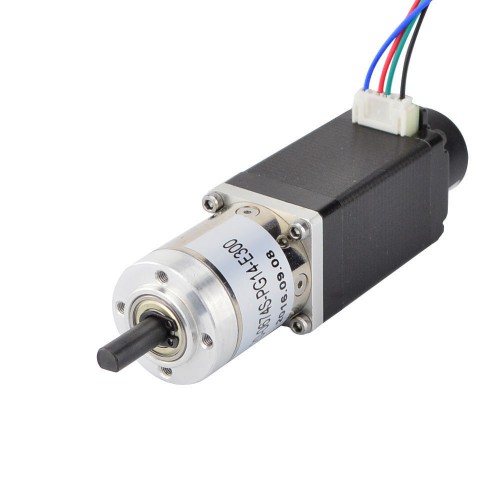

Nema 11 Closed-loop Geared Stepper Motor 11HS20-0674S-PG14-E300 300CPR with 14:1 Planetary Gearbox
Nema 11 Closed-loop Geared Stepper Motor 11HS20-0674S-PG14-E300 300CPR with 14:1 Planetary Gearbox
Motor Specification
- Manufacturer Part Number: 11HS20-0674S-PG14-E300
- Motor Type: Bipolar Stepper
- Frame Size: 28 x 28mm
- Motor Length: 51mm
- Step Angle without Gearbox: 1.8 deg
- Holding Torque without Gearbox: 0.14Nm(19.8oz.in)
- Rated Current/phase: 0.67A
- Phase Resistance: 12ohms
- Voltage: 8.04V
- Inductance: 6.5mH ± 20%(1KHz)
- Number of Leads: 4
- Lead Length: 500mm
Gearbox Specifications
- Gearbox Type: Planetary
- Gearbox Length: 35mm
- Gear Ratio: 13.73
- Efficiency: 81%
- Shaft Diameter: Φ6mm
- Shaft Length: 18mm
- D-Cut length: 12mm
- Backlash at No-load: <=1deg
- Max.Permissible Torque: 3Nm(424.8.oz.in)
- Moment Permissible Torque: 5Nm(708.1oz.in)
- Shaft Maximum Axial Load: 5N
- Shaft Maximum Radial Load: 25N
Encoder Specification
- Driving Voltage : 5V
- Output current : 50mA
- Resolution : 300ppr
- Output Signal : 2 Channels
- Bore Diameter : Φ4mm
- Output Frequency : ≤1MHz
- Running Speed : ≤5000rpm
Connection
A+
|
A-
|
B+
|
B-
|
Black
|
Green
|
Red
|
Blue
|
Motor Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Body Length(mm) | 51 |
Holding Torque w/o Gearbox(Ncm) | 14 |
Holding Torque w/o Gearbox(oz.in) | 19.8 |
Inductance(mH) | 6.5 |
Lead Length(mm) | 500 |
Motor Nema Size | Nema 11 |
No. of Lead | 4 |
Phase Resistance(ohm) | 12 |
Rated Current (A) | 0.67 |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 18 |
Step Angle(°) | 1.8 |
Encoder Specification | |
IP Protection | IP20 |
Output Current(mA) | 50 |
Output Frequency | ≤0.03MHz |
Output Signal Channels | 2 Channels |
Rated Voltage(V) | 5V |
Resolution(CPR) | 300 |
Running Speed(rpm) | ≤5000rpm |
Physical Specification | |
Weight(g) | 400 |
