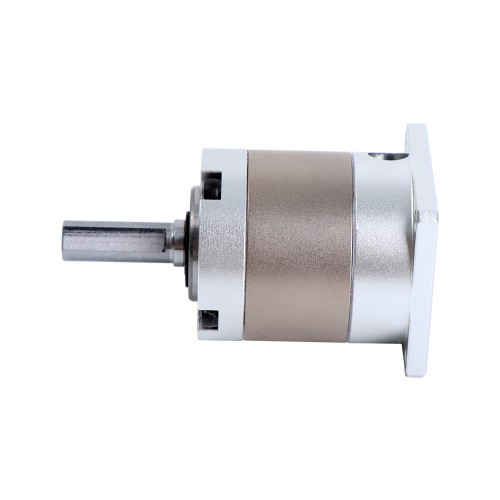

TQEG Series Planetary Gearbox Gear Ratio 10:1 TQEGS11-G10 Backlash 15 Arc-min for Nema 11 Stepper Motor
This high-precision planetary gearbox is belong to TQEG series gearbox, it with gear ratio 10:1 and a maximum 15 arc-min backlash. It's an excellent choice for applications that require good accuracy and reliability at an exceptional value. This in-line planetary gearbox built-in an input shaft coupling which can match any standard Nema 11 stepper motor, brushless DC motor and servo motor.
Gearbox Specifications
Manufacturer Part Number: TQEGS11-G10
Gearbox Type: Planetary
Gear Ratio: 10 : 1
Efficiency: 96%
Backlash at No-load: <=15 arcmin
Max.Permissible Torque: 1 Nm(8.85 lb-in)
Moment Permissible Torque: 2 Nm(17.7 lb-in)
Noise: <=55dB
Waterproof Rating: IP54
Lifetime: 20000 hours
Physical Specifications
Frame Size: 28 x 28 mm
Gearbox Length: 33 mm
Output Shaft Type: D-cut
Output Shaft Diameter: Φ6 mm
Output Shaft Length: 20 mm
Input Shaft Diameter: Φ5 mm
Input Shaft Length: 10.5 mm
Physical Specification | |
---|---|
Frame Size(mm) | 28 x 28 |
Gearbox Length(mm) | 33 |
Input Shaft Diameter(mm) | 5 |
Input Shaft Length(mm) | 10.5 |
Output Shaft Diameter(mm) | 6 |
Output Shaft Length(mm) | 20 |
Suit for Motor | Nema 11 |
Gearbox Type | TQEG Series |
Gear Ratio | 10 |
Backlash at No-load | <=15 arcmin |
Product Type | TQEG Series Planetary Gearbox |
Output Shaft Type | Keyway Shaft |
