Surpass Hobby S2810 1180KV /980KV Brushless Drone Motor (compatible HQ8 x4.5 x3/HQ9x5x3) for FPV RC Airplanes
- 6% Off On Total Order Amount!
- Enjoy Discount at Checkout! No Need Coupon Code!
- Valid Till January 6th,2025
Surpass Hobby S2810 1180KV /980KV Brushless Drone Motor (compatible HQ8 x4.5 x3/HQ9x5x3) for FPV RC Airplanes
Features:
Waterproof design, durable material.
High teamperature resistant 220°C;
14 poles, 12 slots, and CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it durable.
High purity copper windings imizes efficiency, with high temperature resistance.
ABEC5 bearing is precision and stably, with low friction, better durability.
Ultra-thin silicon lamination behave high magnetic permeability, better insulation and heat resistance.
3.5mm gold plated connector, 4mm shaft, screws are included.
Balanced and smooth rotor can get reliability and imum RPM.
Specification:
Brand:Surpass Hobby
Model:S2810
KV(RPM/Volt):980Kv /1180KV
Motor Type:FPV Motor
Watts:1110w / 1024w
Voltage Range(V):24V
Max Current(A):43A/46A
No load current(A):1.0V/0.9A
Resistanc:0.064Ω/0.071Ω
Bearings:NMB
Rotor Poles:14 pole

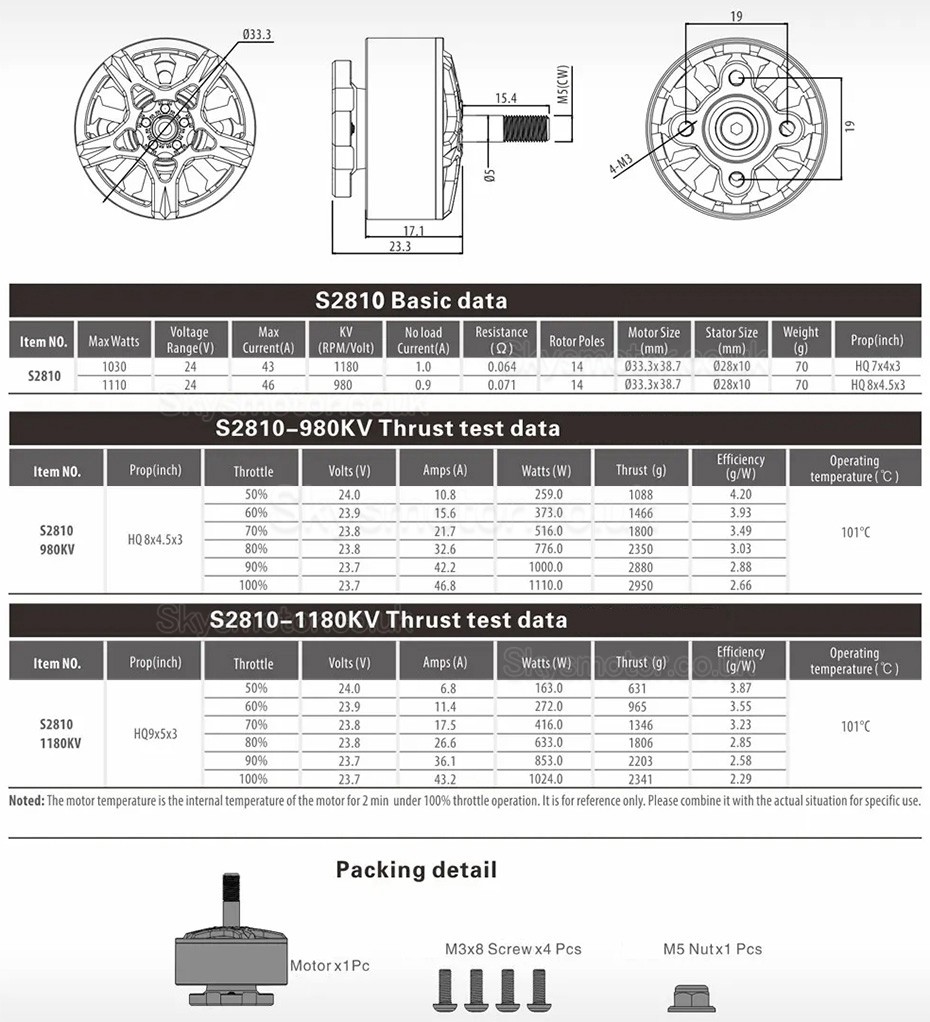

Motor size(mm):33.3 x 38.7mm
Stator size (mm):28x10mm
Propeller:HQ8 x4.5 x3/HQ9x5x3
Net Weight:70g
MAX Thrust(g)
S2806.5 2535g
S2807 2535g
S2808 2071g
S2810 2950g
S2812 3313g;
BLDC Motor Specification | |
---|---|
No. of Poles | 14 |
Rated Voltage(V) | 24 |
Physical Specification | |
Body Length(mm) | 38.7 |
Shaft Type | compatible HQ8 x4.5 x3 Prop / compatible HQ9x5x3 Prop |
Weight(g) | 70 |
Product Type | FPV Motor |
Product Series | S2810 |
