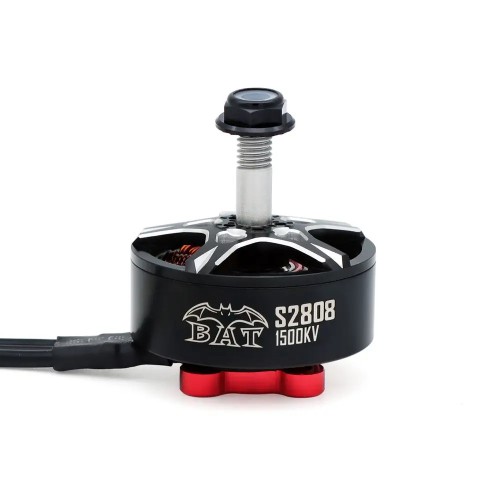

Surpass Hobby S2808 1500KV /1900KV FPV Drone Motor (compatible compatible HQ6x3.5x3 Prop) for Unmanned Aerial Vehicle
Features:
Waterproof design, durable material.
High teamperature resistant 220°C;
14 poles, 12 slots, and CNC machined 6061-T6 aluminium cooling fin leads to efficient heat dissipation. Secondary oxidation treatment makes it durable.
High purity copper windings imizes efficiency, with high temperature resistance.
ABEC5 bearing is precision and stably, with low friction, better durability.
Ultra-thin silicon lamination behave high magnetic permeability, better insulation and heat resistance.
3.5mm gold plated connector, 4mm shaft, screws are included.
Balanced and smooth rotor can get reliability and imum RPM.

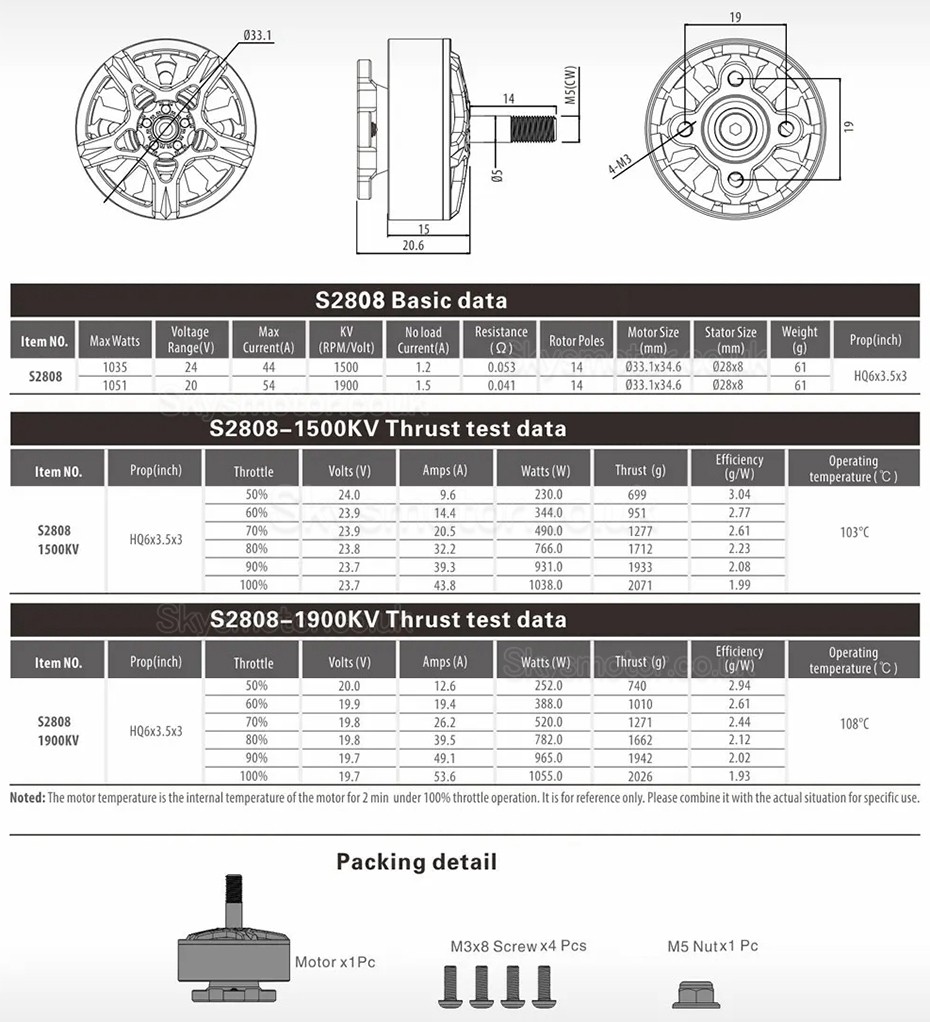

Specification:
Brand:Surpass Hobby
Model:S2808
KV(RPM/Volt):1500kv /1900kv
Motor Type:FPV Motor
Watts:1038w / 1055w
Voltage Range(V):24V/20V
Max Current(A):44A/54A
No load current(A):1.2V/1.5A
Resistanc:0.053Ω/0.041Ω
Bearings:NMB
Rotor Poles:14 pole
Motor size(mm):33.1 x 34.6mm
Stator size (mm):28x8mm
Propeller:HQ6 x3.5 x3
Net Weight:61g
MAX Thrust(g)
S2806.5 2535g
S2807 2535g
S2808 2071g
S2810 2950g
S2812 3313g;
Electrical Specification | |
---|---|
No. of Phase | 14 |
Rated Voltage(V) | 20 / 24 |
Physical Specification | |
Weight(g) | 61 |
Body Length(mm) | 34.6 |
Shaft Type | compatible HQ6x3.5x3 Prop |
Product Type | FPV Motor |
Product Series | S2808 |
