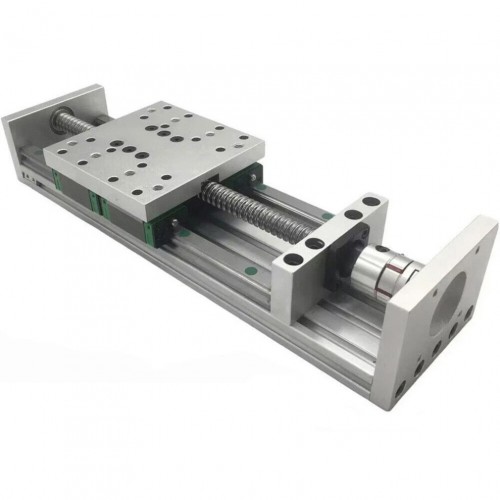

Specifications — SXG120×120 Sliding Table

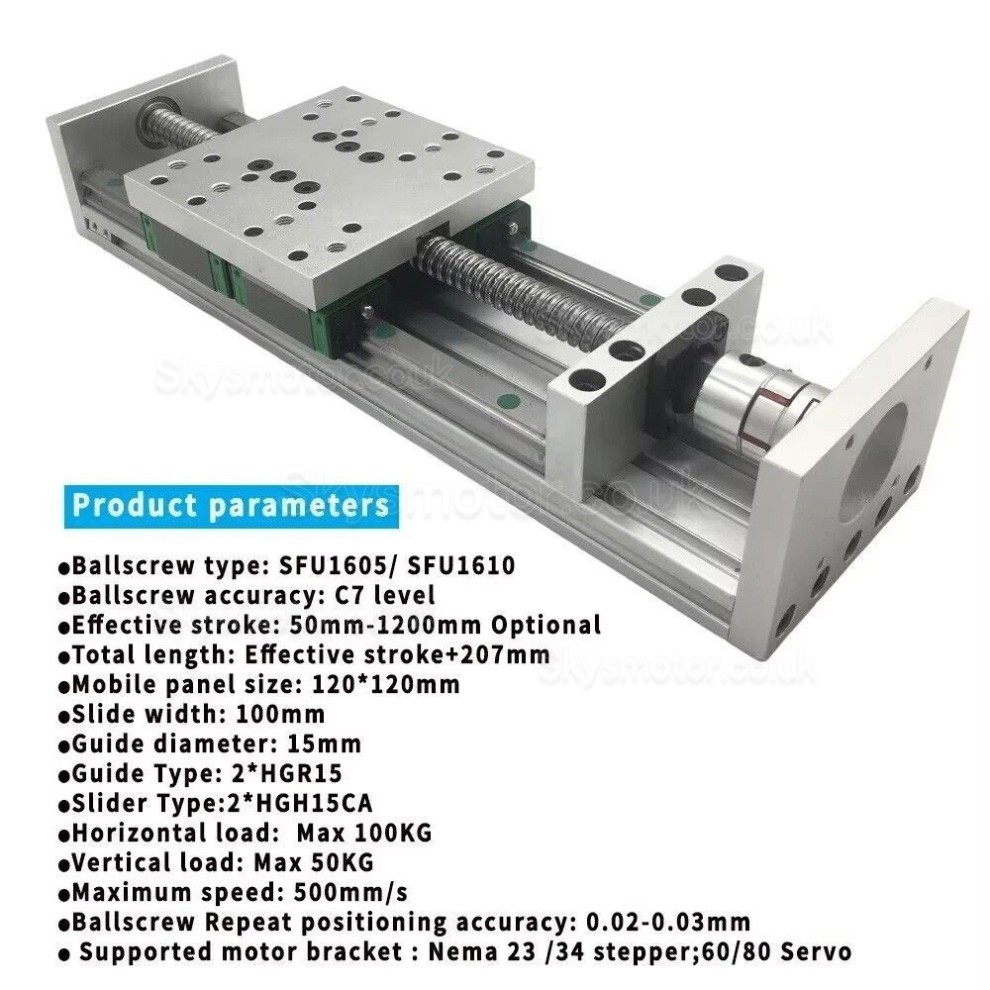

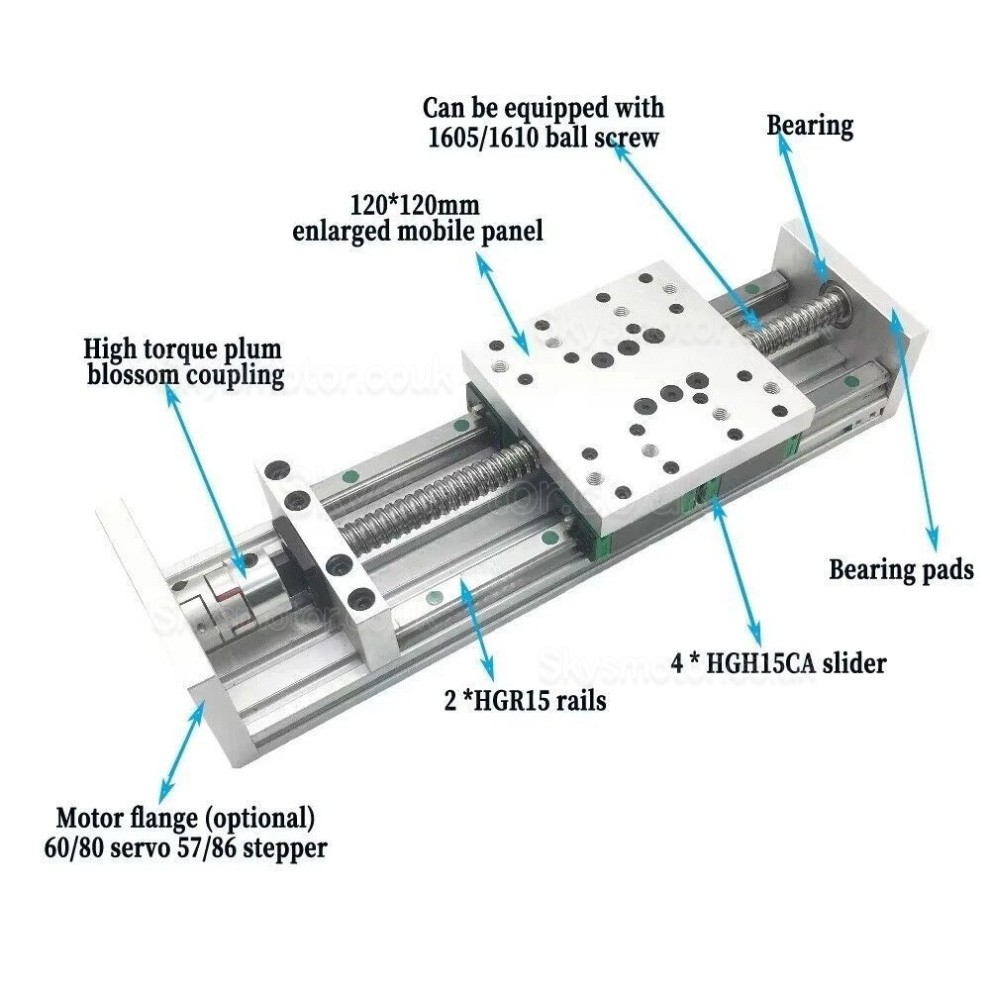

Model: SXG120×120
Mobile panel: 120 × 120 mm
Slide width: 100 mm
Ballscrew: SFU1605 (Ø16 mm, 5 mm pitch; ≈5 mm travel per revolution)
Ballscrew accuracy: C7
Effective stroke options: 50–1200 mm

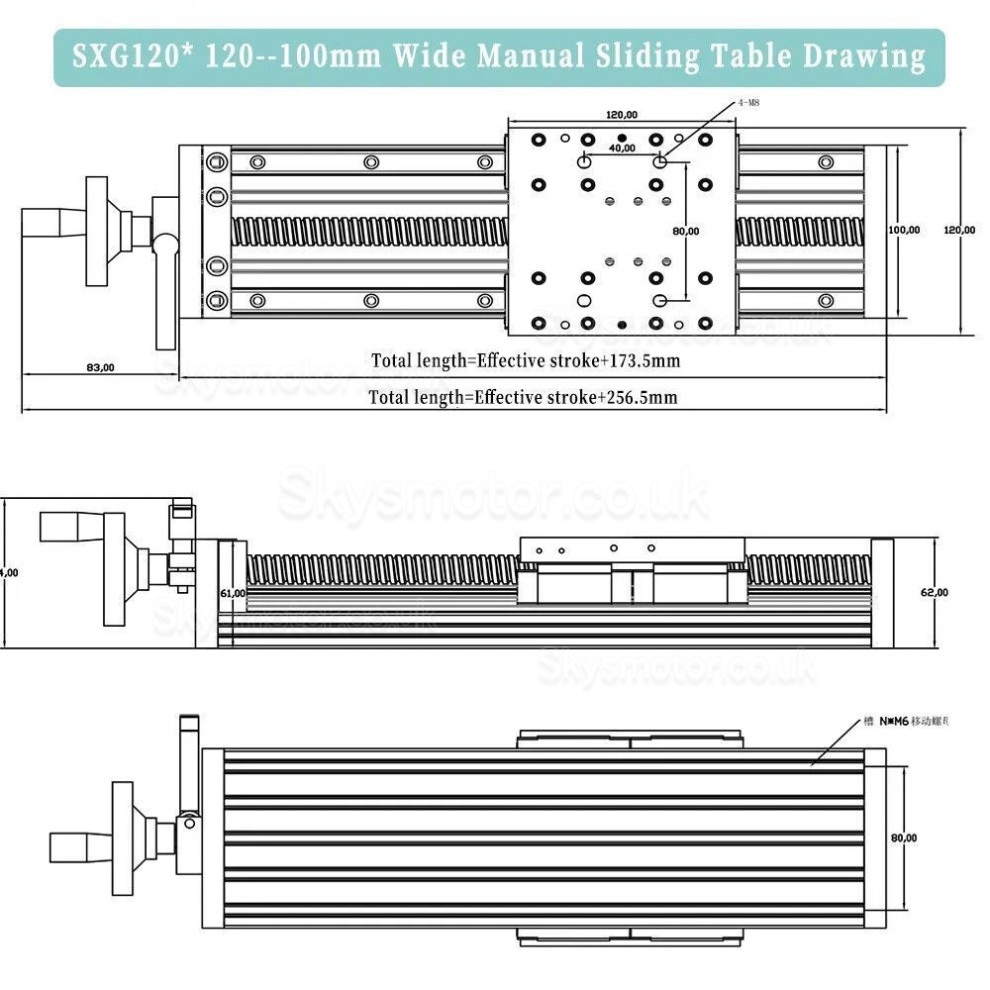

Total length: effective stroke + 207 mm
Guides: 2 × HGR15 rails, 2 × HGH15CA carriages
Guide diameter (rail spec): 15 mm
Rated speed: up to 500 mm/s
Rated loads: horizontal 100 kg; vertical 50 kg
Repeat positioning (ballscrew): 0.02–0.03 mm

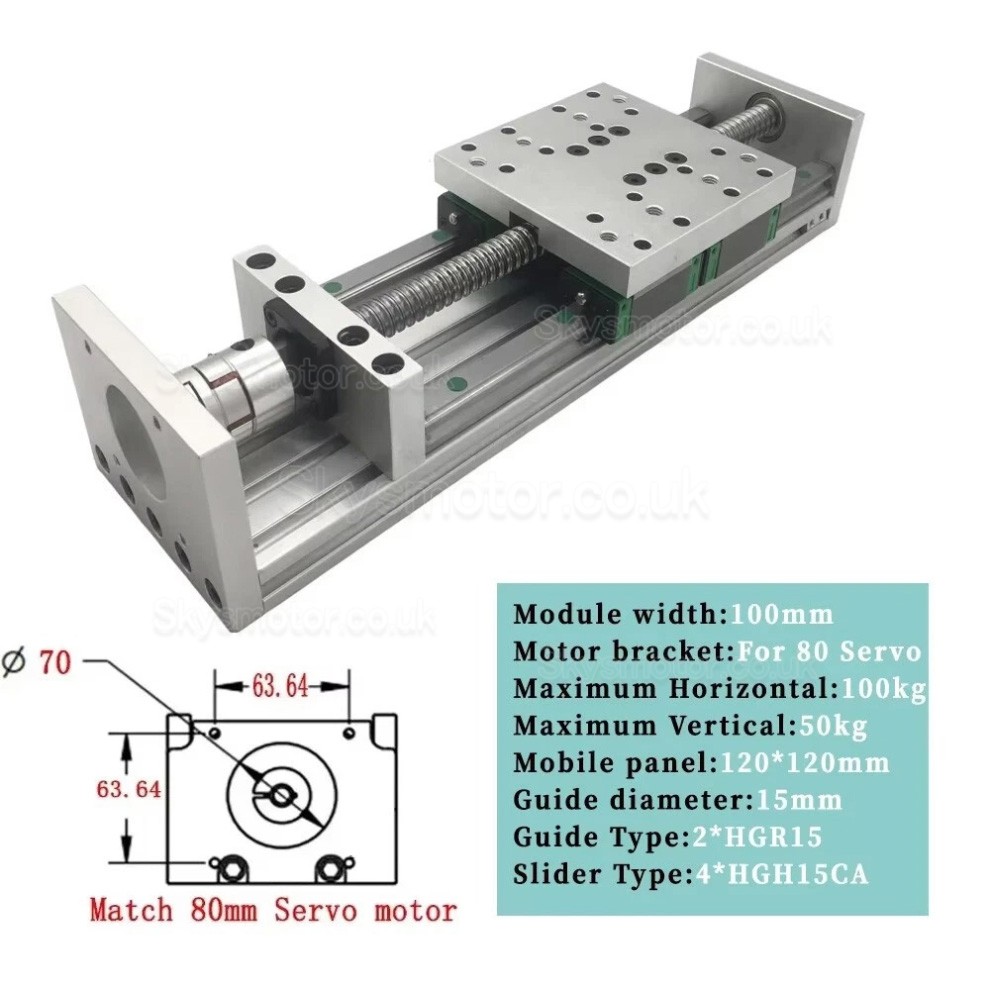

Motor bracket compatibility: NEMA 23 / NEMA 34 stepper; 60 mm / 80 mm servo
Materials: ballscrew and rails—carbon/bearing steel; base plate—aluminum alloy

Reminder:
Verify stroke length, motor interface, and coupling size before ordering.
Install and operate within the stated mechanical and environmental ranges.

Package Options
For NEMA 23 bracket:
1 × SXG120×120 sliding table
1 × 8 mm coupling (for NEMA 23, 57 mm stepper)

For NEMA 34 bracket:
1 × SXG120×120 sliding table
1 × 14 mm coupling (for NEMA 34, 86 mm stepper)

For 60 mm servo bracket:
1 × SXG120×120 sliding table
1 × 14 mm coupling (for 60 mm servo motor)

For 80 mm servo bracket:
1 × SXG120×120 sliding table
1 × 19 mm coupling (for 80 mm servo motor)
