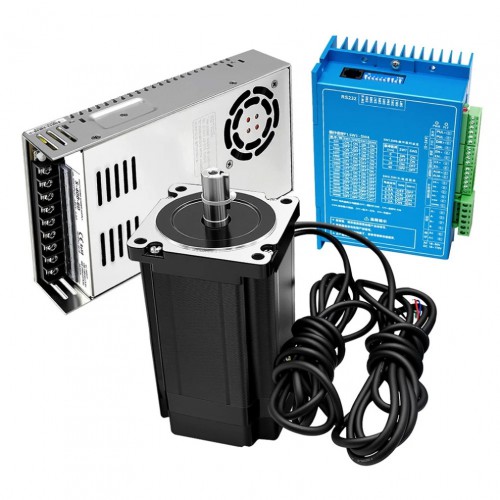

Nema 23 Closed Loop Stepper Motor Kit 57HB250 + HB8080C + S350-24 (Motor + Driver + Power Supply)

Features:
Closed-Loop System: Nema 23 closed-loop stepper motors with 1000-line encoders.
Motor Torque: 1.2Nm, 2Nm, 3Nm is available.
DSP Drivers: HB8080C drivers with a peak current of 13A and a response frequency of 200KHz for responsive control. Supports 24-80VDC input and PUL/DIR or CW/CCW signals. Offers 200 to 25,600 microsteps.

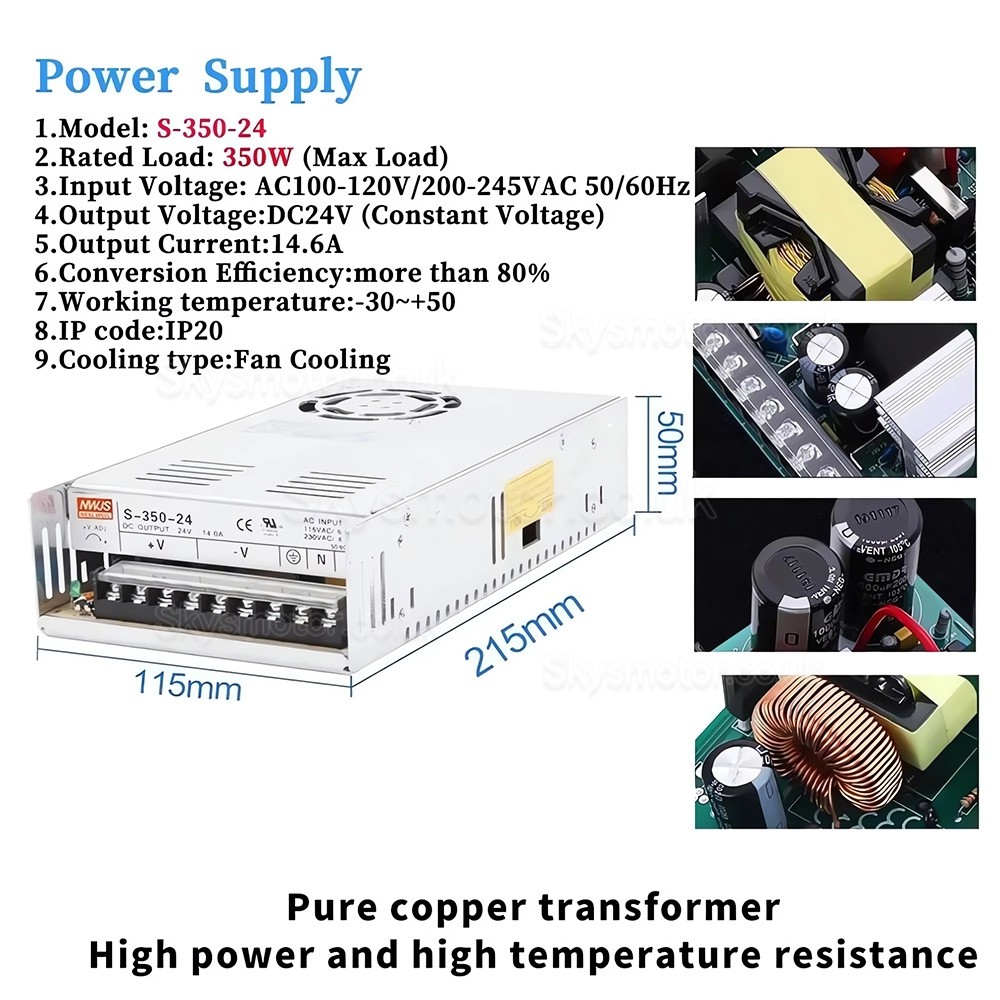

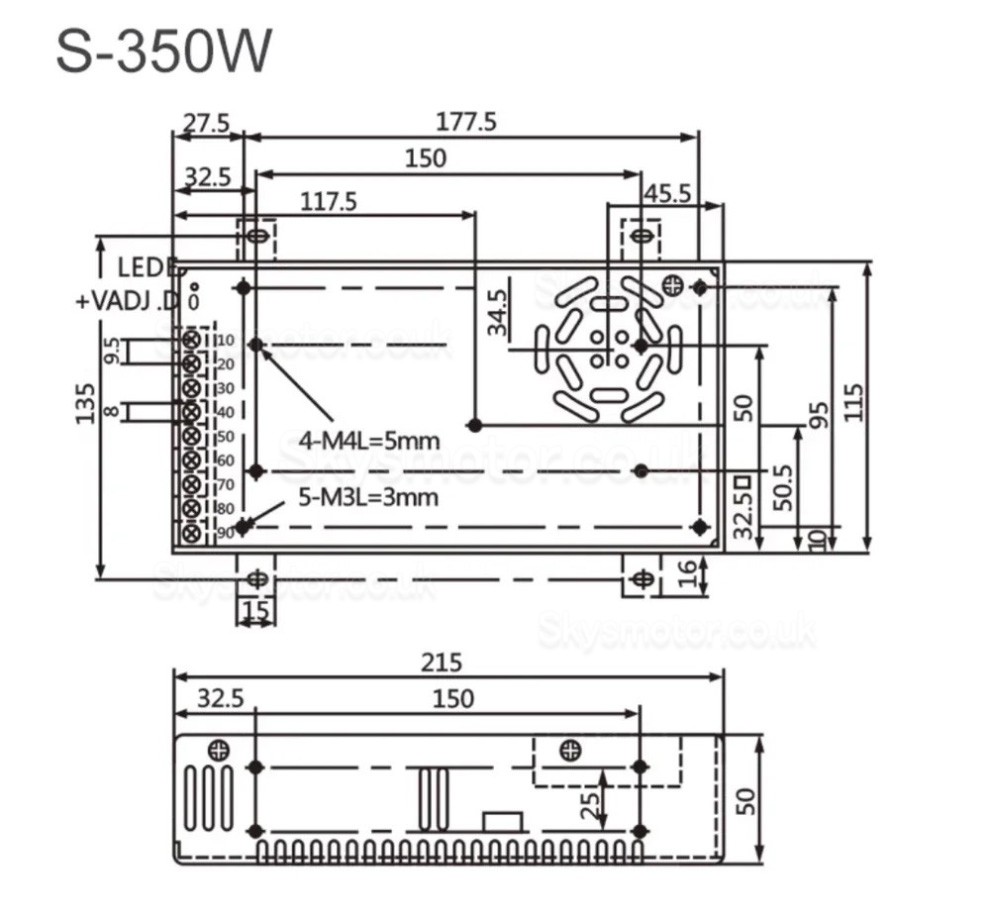

Power Supply: 350W 24V DC power supply with over-current, over-voltage, and load protection. Dual AC input (110V/220V switchable).

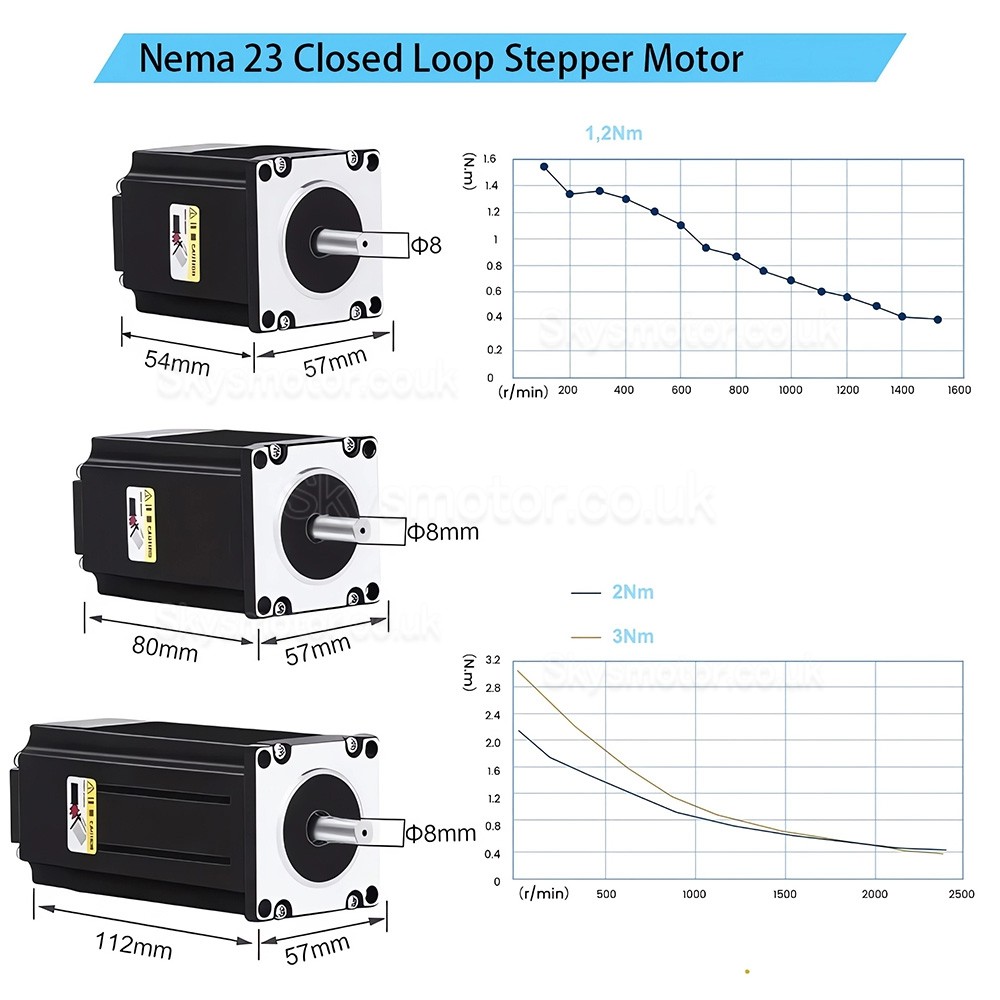

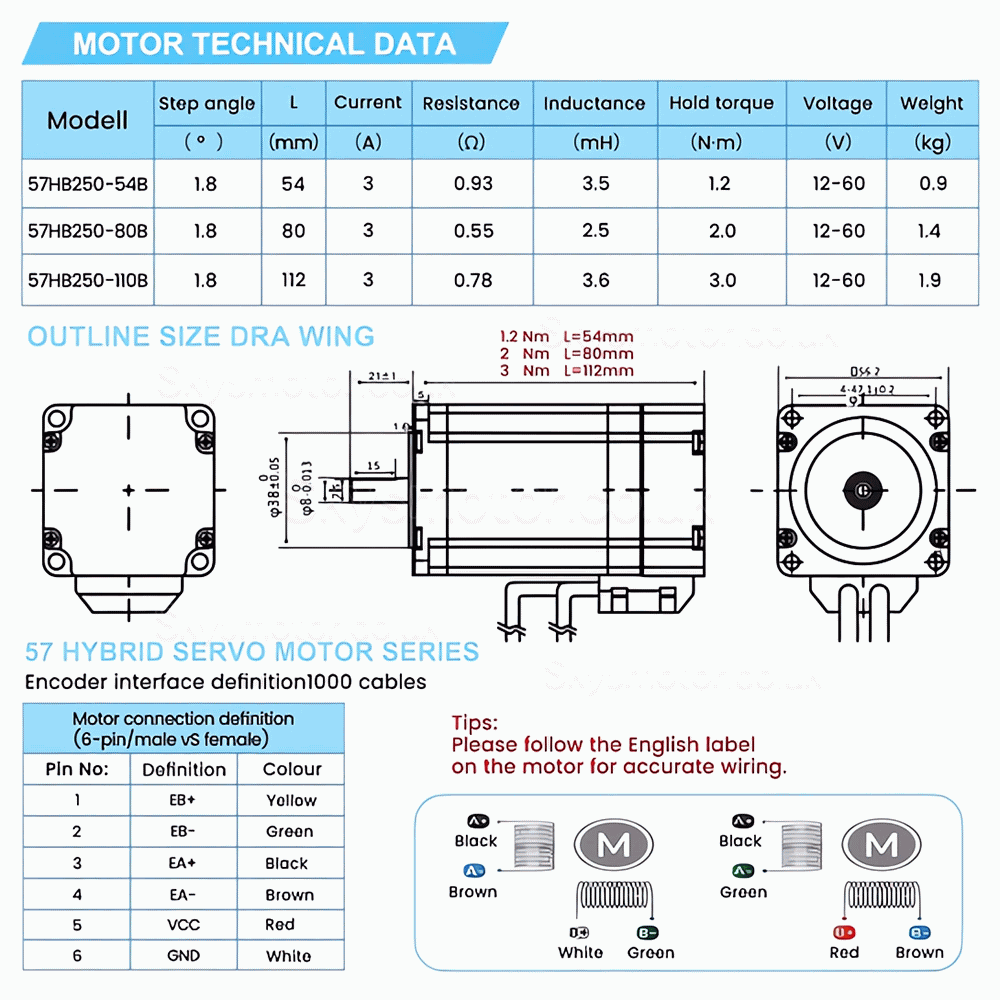

Motor Dimensions:
57HB250-54B-1.2Nm:(57×57×54mm)
57HB250-80B-2Nm:(57×57×80mm)
57HB250-110B-3Nm:(57×57×112mm)

Applications:
CNC Machinery: Milling, engraving, cutting, and lathe operations.
Automated Manufacturing: Used in robotic arms, conveyor systems, and assembly lines.
3D Printing & Laser Cutting: Provides stable positioning for precise layer transitions.
DIY CNC Projects: For hobbyists upgrading motion control capabilities.
Industrial Automation: Suitable for packaging, textile machinery, and rotary indexing systems.

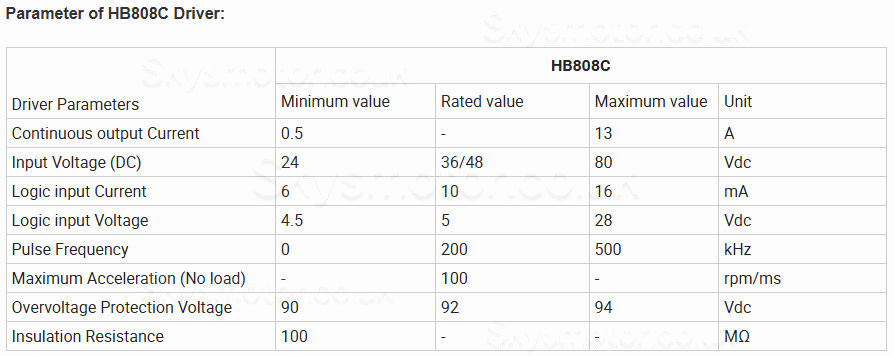

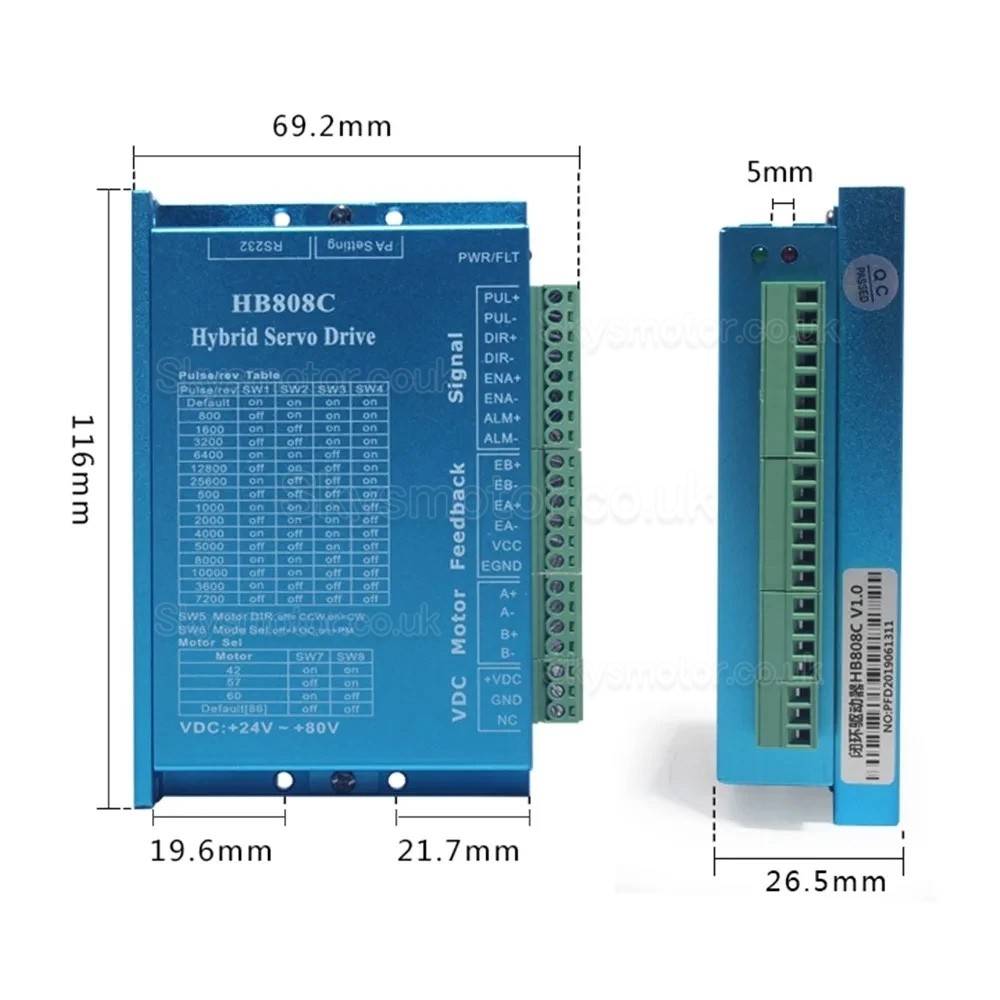

HB808C 2 Phase AC18-80V Closed Loop Stepper Motor Driver Nema 17/23/24 Motor

Features:
Uses digital control chip with vector closed-loop control;
Torque attenuation is low, supporting speed up to 3000 rpm;
Supports AC 18–80 V or DC 20–110 V power input;

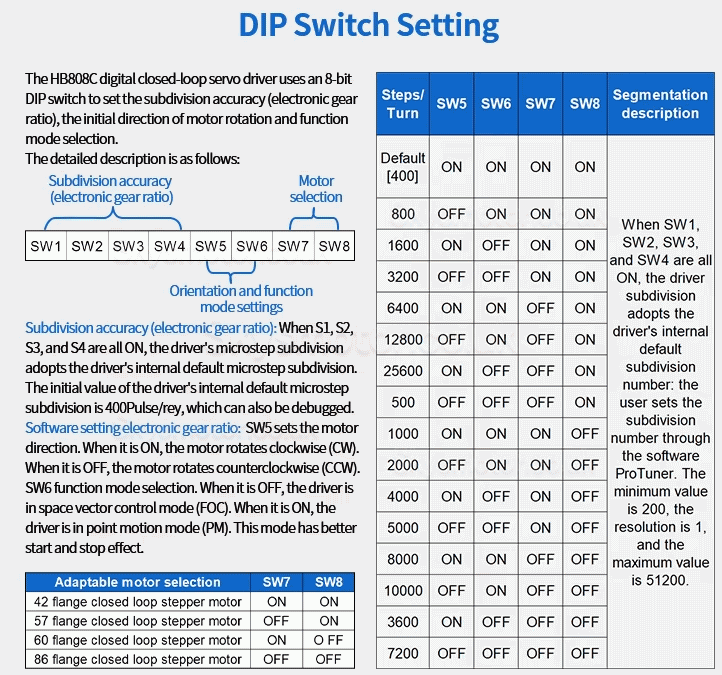

16-level subdivision, customizable on request;
Compatible with 5–24 V input, no external series resistance required;
Maximum response frequency: 400 kHz;
Intelligent current regulation helps reduce power consumption at low load and improve torque at high load;
External alarm and position output ports for monitoring and control;
Supports single or dual pulse modes; default pulse + direction control;
Pulse delay adjustable by dial switch; factory default 40 ms;
Includes protection functions for over-current and overload;
Compatible with 2-phase Nema 17, 23, and 24 hybrid servo motors (stepper motor with encoder) with the position loop closed in real time.
