NEMA 34 External Acme Linear Stepper Motor 34E30S5504GK5-200RS Lead 2.54mm Lead Length 200mm
NEMA 34 External Acme Linear Stepper Motor 34E30S5504GK5-200RS Lead 2.54mm Lead Length 200mm

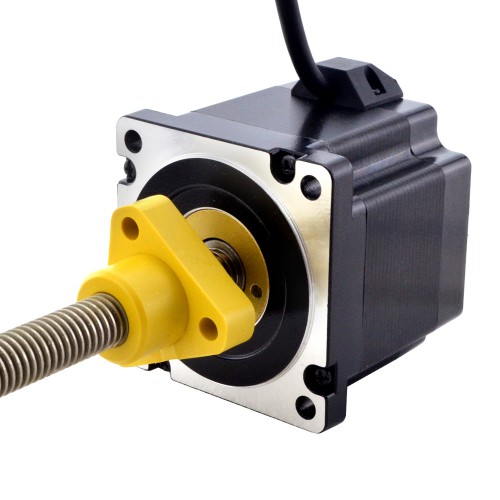

This model is a Nema 34 ACME screw linear stepper motor with a 76mm body length, 1.8 degree step angle and 5.5A rated current. It is integrated with a Φ15.875mm(0.625") diameter, 200mm(7.8740") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution. It has the characteristics of high performance, long life, low noise and high efficiency.
Electrical Specification
Manufacturer Part Number: 34E30S5504GK5-200RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 4.5Nm(637.38oz.in)
Rated Current/phase: 5.5A
Phase Resistance: 0.5ohms
Inductance: 4.5mH±20%(1KHz)
Physical Specification
Frame Size: 76 x 76mm
Body Length: 76mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ15.875mm(0.625")
Lead/Step: 0.0127mm(0.0005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Number of Thread Starts: 1
Lead Length: 500mm
Connection
A+ | A- | B+ | B- |
Red | Red/White | Green | Green/White |

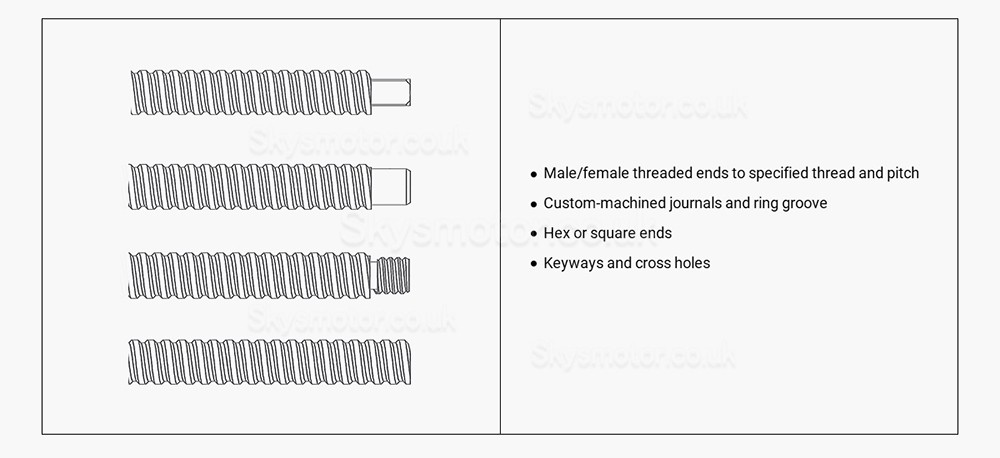

Lead Screw End Machining

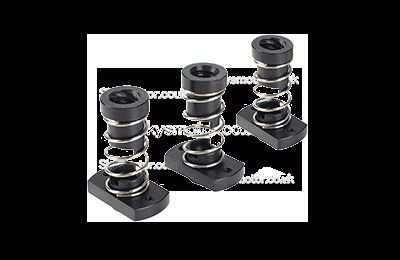

Anti-Backlash Nut
SKYSMOTOR provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).
There should be a nominal backlash between lead screw and SKYSMOTOR standard plastic nut after millions of cycles. SKYSMOTOR guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, SKYSMOTOR provides spring pressure structure of anti-backlash nut.

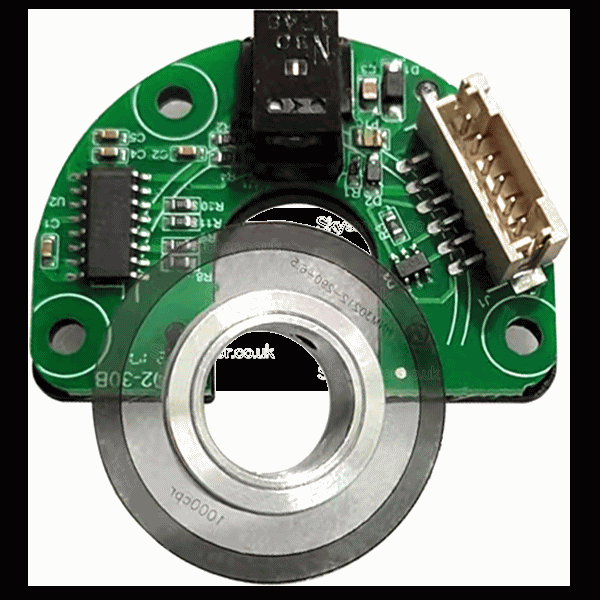

Encoders
According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.
Also various resolution can be chosen freely for easier and precise positioning.
All SKYSMOTOR standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.

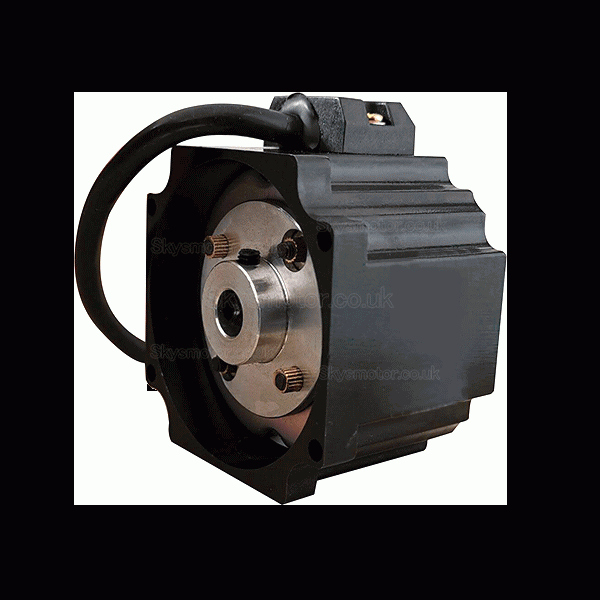

Brakes
Especially Vertical applications or holding motors from sudden power-off status, SKYSMOTOR standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

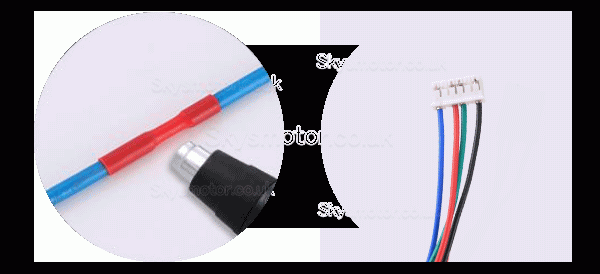

Wiring, Cabling and Connectors
Flying wire leads or connectors
Twisting wire leads
Heat shrink or expandable tubing
Cable housings

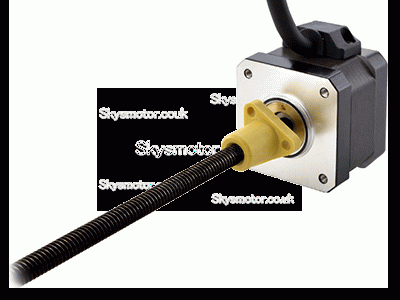

Teflon Coated Screw
If customer's applications require greaseless screw and nut combination, SKYSMOTOR offers teflon coated lead screw of stepper linear actuator.
Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.
Teflon coating can be applied in the whole range of lead screw options in SKYSMOTOR and all types of linear actuators such as External, Non-Captive, and Captive.
In addition, Anti-backlash nut also can be combined with teflon coated screw too.
Electrical Specification | |
---|---|
Bipolar/Unipolar | Bipolar |
Inductance(mH) | 4.5 |
Phase Resistance(ohm) | 0.5 |
Rated Current (A) | 5.5 |
Step Angle(deg.) | 1.8 |
Linear Motor Type | External(Acme) |
Physical Specification | |
Body Length(mm) | 76 |
Frame Size(mm) | Nema 34 (76 x 76) |
Lead Length(mm) | 500 |
Lead Screw Diameter(mm) | 15.875 |
Lead Screw Length(mm) | 200 |
No. of Lead | 4 |
Lead Travel/Revolution(mm) | 2.54 |
Lead Travel/Step(mm) | 0.0127 |
IP Rating | 40 |
