CNC Motion Controller DDCS V3.1 3 Axis / 4 Axis Electronic Numerical Standalone Control

CNC Motion Controller DDCS V3.1 3 Axis / 4 Axis Electronic Numerical Standalone Control

Features:

16 optically isolated digital inputs and 3 optically isolated digital outputs;

Enhanced interpolation algorithm, supports soft interpolation;

0–10 V analog spindle control, configurable as PWM output;

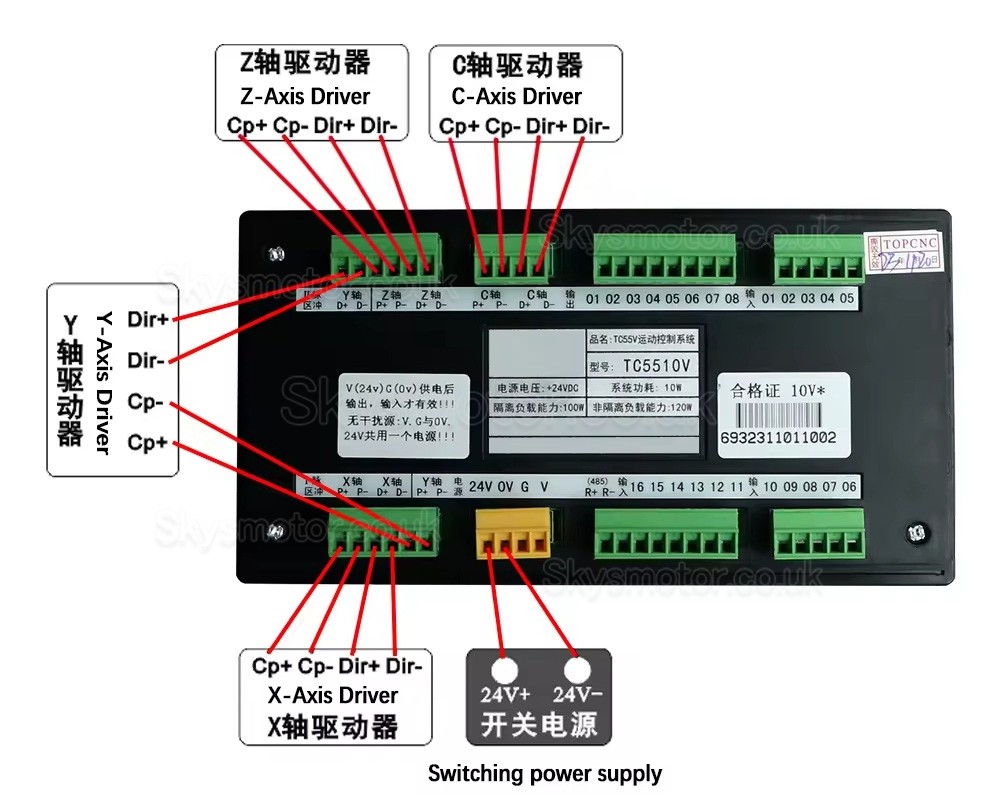

Supports 3 to 4 axes motor control, differential pulse and direction output, max 500 kHz per axis;

ARM9 main chip and FPGA core algorithm;

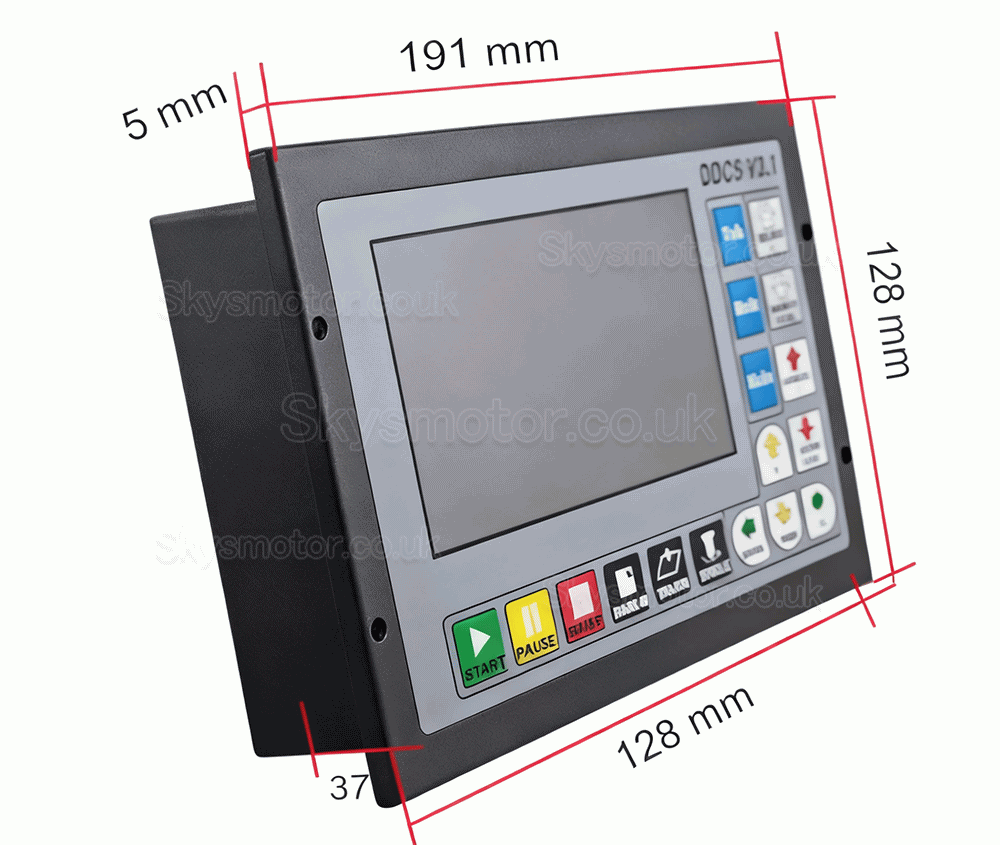

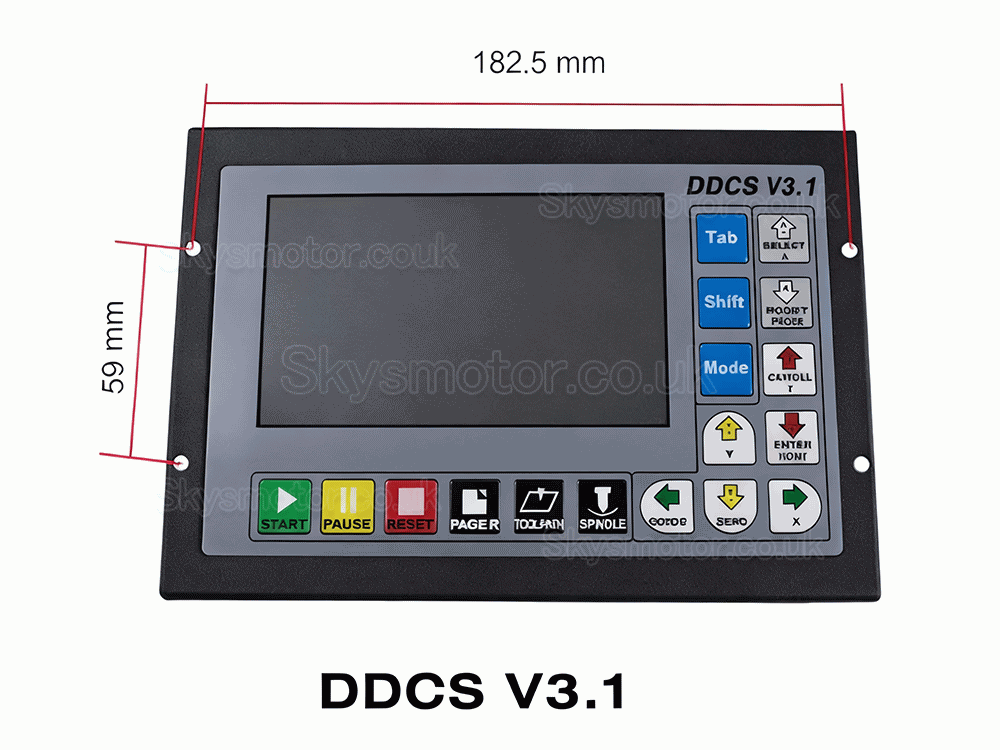

5-inch TFT screen (480×272), 17 keys;

24 V DC power input, minimum 0.5 A for controller and I/O;

I/O ports powered internally, no external I/O power needed;

USB flash disk supports G-code files without size limit;

Supports standard MPG;

Jog mode available for each axis (continuous, step, custom distance);

Supports quick position specification;

Data retention after power loss (automatic save);

Backlash and tool compensation;


Controller Functions:

Supports soft interpolation and axis jogging with defined distance;

USB file input for G-code without size restriction;

Quick position selection function;

Data is automatically saved after power cut;

Backlash and tool compensation functions;

Compatible with FANUC and standard G-code formats;


Controller Parameters:

Maximum pulse per axis: 500 kHz;

Main control chip: ARM9;

Core algorithm chip: FPGA;

Display: 5-inch TFT, 480 × 272;

Operation keys: 17;

Power input: 24 V DC, minimum current 0.5 A;

G-code input: via USB flash disk;

MPG port: compatible with common MPG models;

Internal memory: 1 GB;

Input interface: 16-channel optically isolated digital inputs;

Output interface: 3-channel optically isolated digital outputs;

Analog spindle control: 0–10 V (can be configured as PWM output);

Limit switch: NPN;

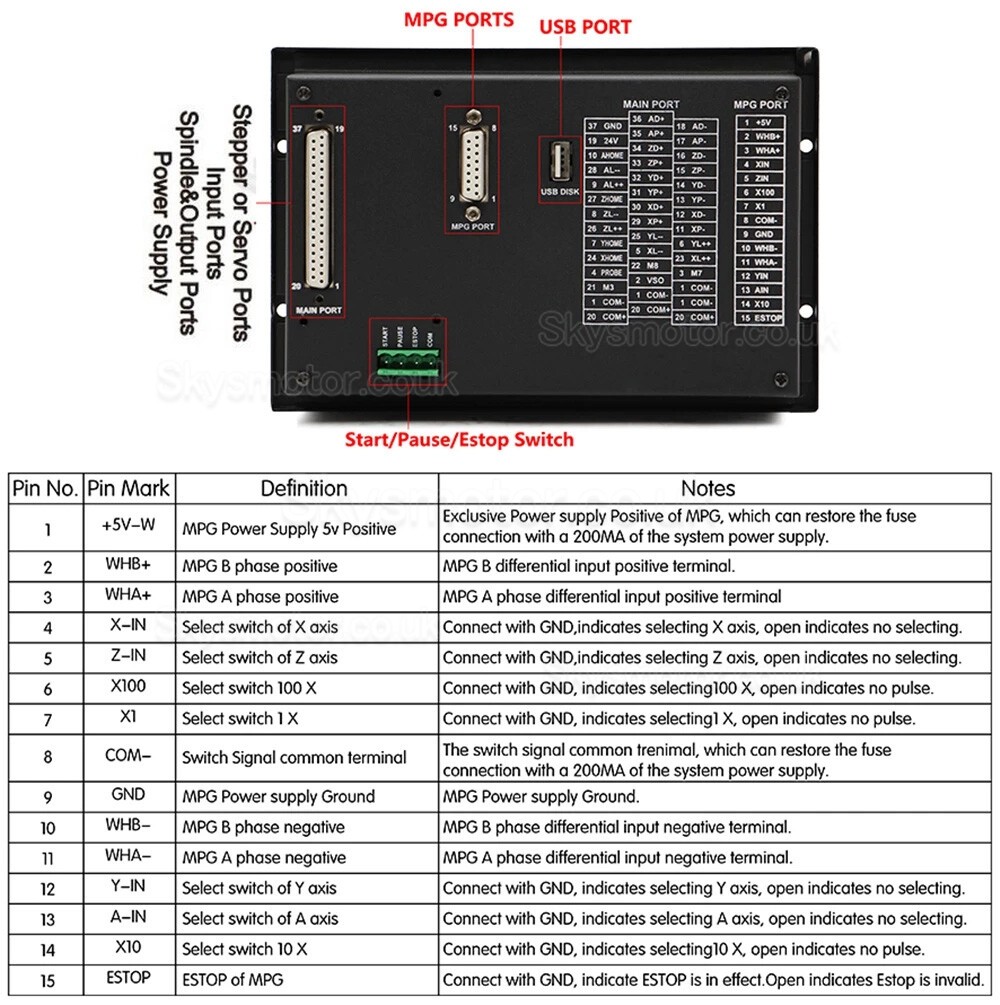

MPG Specification:

X1 / X10 / X100 step switch

Axis selector (X, Y, Z, 4th)

LED indicator

Emergency stop button

Metal housing

6-ft extendable shielded cable

Magnetic base for mounting on metal surface

Power requirement: 5 V DC, 150 mA

Phase output: A, /A, B, /B (TTL, ± 20 mA drive capability)

Compatible CNC systems: Taiwan Pou Yuen M600/M500/M520i/T300 series, Higerman, HANUC, GSK, Open NC, KND, Siemens, NUM, Spain FAGOR (8055i) and others

Wiring is designed for standard CNC system connections



Package List:

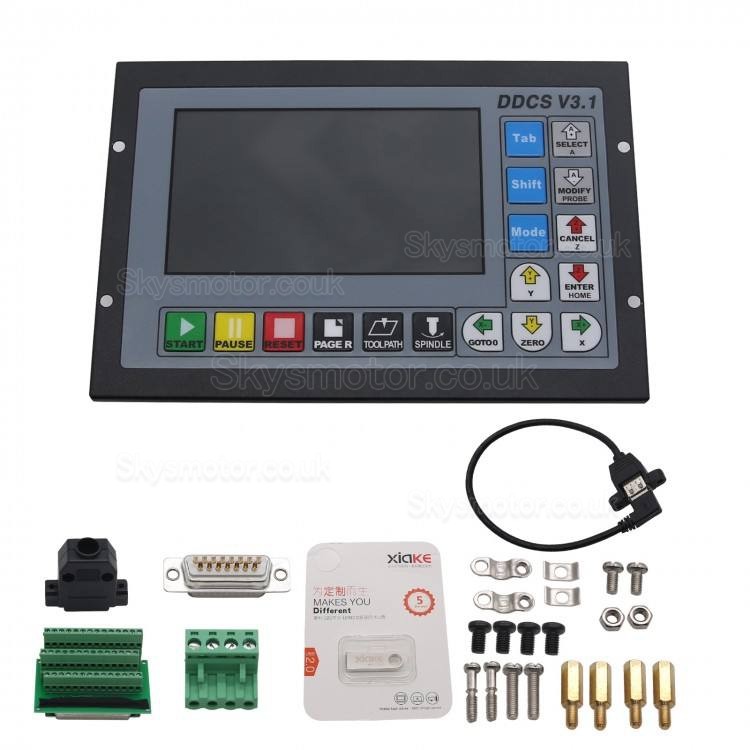

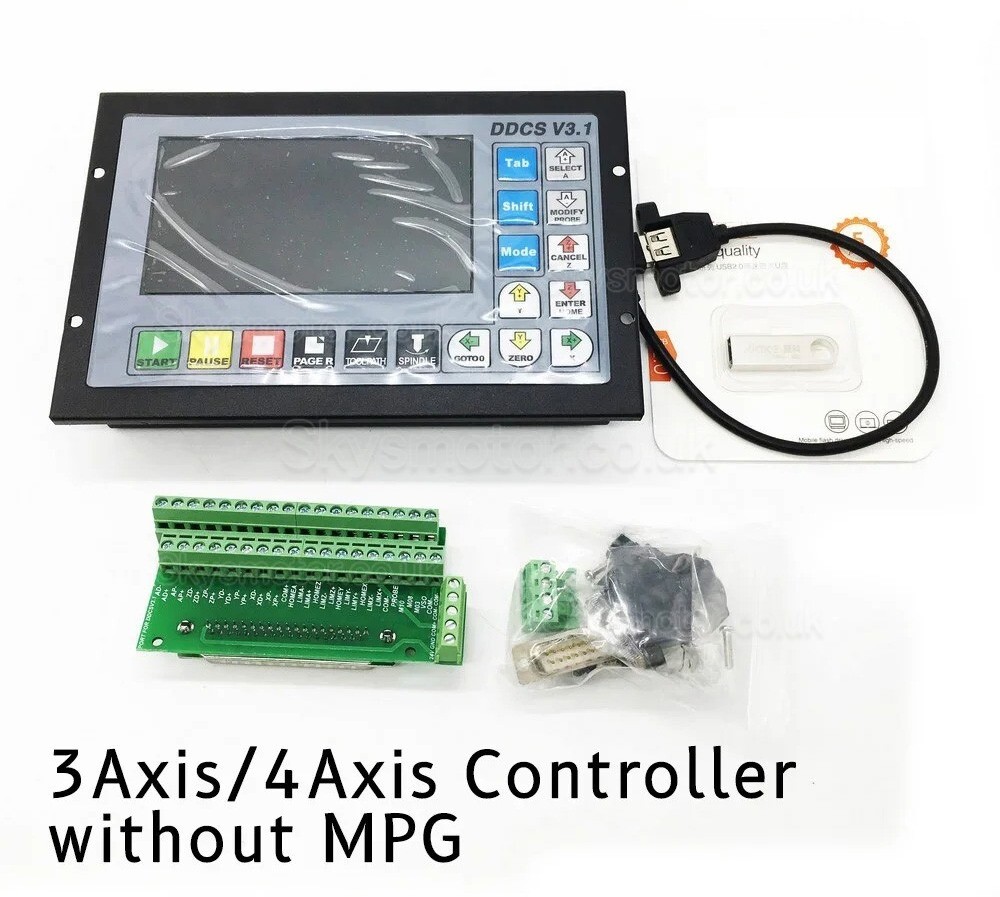

① 3-Axis Controller

1 × 3-Axis CNC Offline Motion Controller

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

② 4-Axis Controller

1 × 4-Axis CNC Offline Motion Controller

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

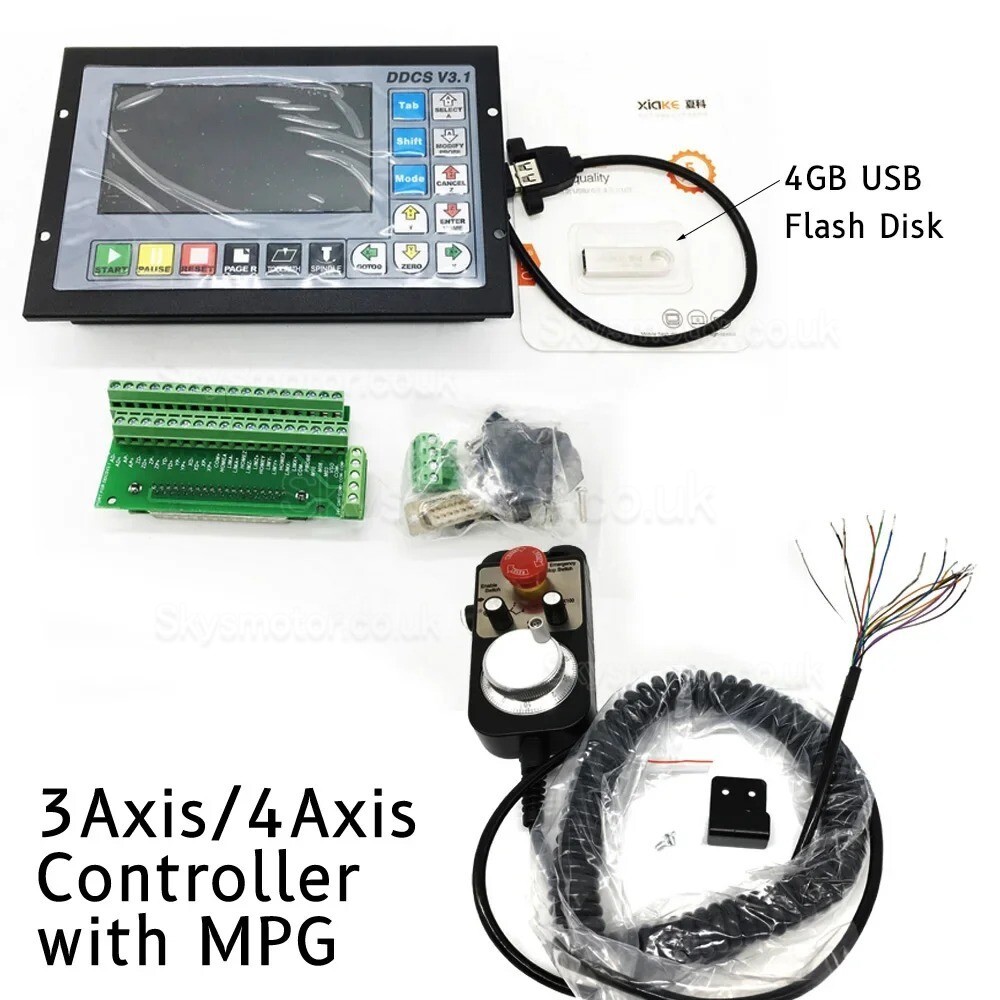

③ 3-Axis with MPG

1 × 3-Axis CNC Offline Motion Controller

1 × MPG Hand Wheel with Emergency Stop

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

④ 4-Axis with MPG

1 × 4-Axis CNC Offline Motion Controller

1 × MPG Hand Wheel with Emergency Stop

1 × 4GB USB Flash Disk

1 × USB Extension Cable & Accessories

1 × Mounting Screws Set

For the English manual, please contact the seller.
