CNC Motion Controller DDCS V4.1 3-Axis/4-Axis Standalone Offline Controller USB CNC Controller Interface

CNC Motion Controller DDCS V4.1 3-Axis/4-Axis Standalone Offline Controller USB CNC Controller Interface

Models:
3-Axis Motion Controller
4-Axis Motion Controller
3-Axis Controller with Manual Pulse Generator DDMPG
4-Axis Controller with Manual Pulse Generator DDMPG

Description
The DDCS V4.1 3-4 axis motion controller is designed for stepper and servo systems. It is developed based on the DDCS V3.1 with updates in software and hardware.
The controller adopts an ARM + FPGA architecture. The ARM processor manages the interface and G-code interpretation, while the FPGA executes motion algorithms and generates control pulses. The system operates on a Linux-based platform.

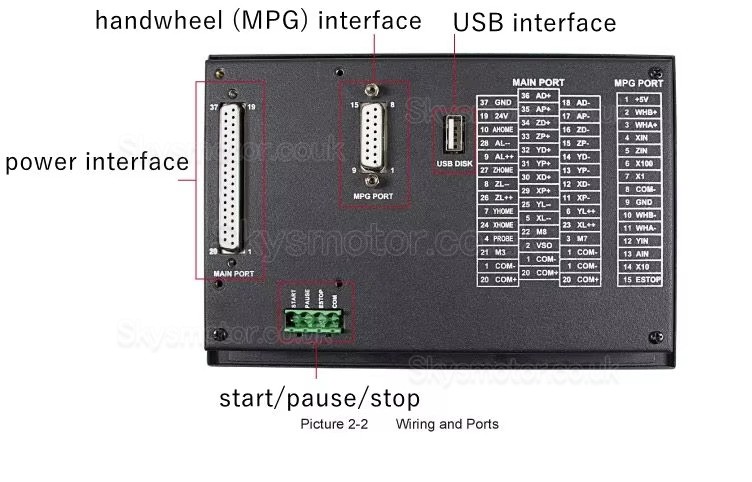

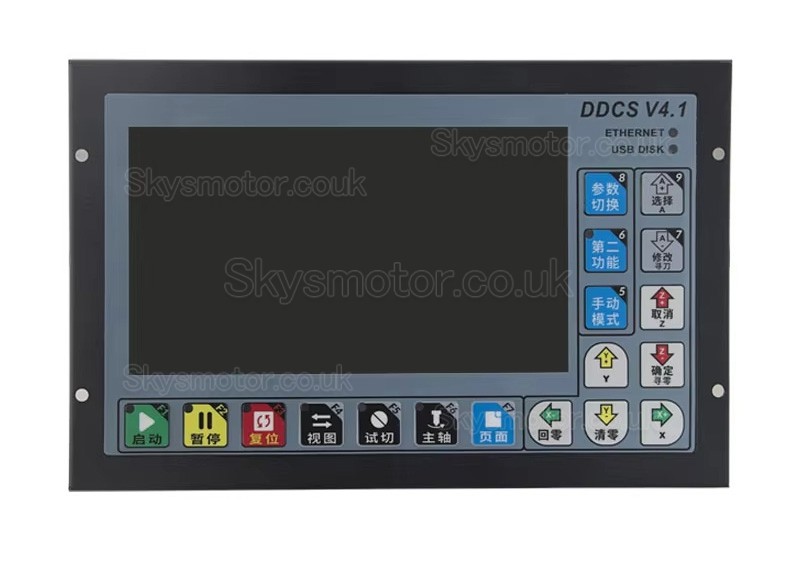

The DDCS V4.1 features a compact layout with 17 composite keys that function as both control and numeric keys. It supports a standard Fanuc-compatible G-code set. The unit can be panel-mounted into a control box or cabinet with four locking hooks.

Specification:
Panel Dimensions: 237 mm × 153.7 mm × 5.2 mm
Main Body: 237 mm × 153.7 mm × 48.2 mm
Mounting Cutout: 228.5 mm × 83.7 mm


Features

18 optically isolated digital inputs, 3 optically isolated digital outputs

Spindle configuration: Analog (0–10V) or Servo spindle

Supports 3–4 axis motor control with differential or double pulse mode, up to 500 kHz per axis

2–4 axis linear interpolation, any 2-axis circular interpolation

ARM9 control chip and FPGA algorithm chip

7-inch TFT display, 1024 × 600 pixels, 17 operation keys

Controller power: 24 VDC, minimum 0.5 A

I/O power: 24 VDC, minimum 0.5 A (both required for operation)

USB flash disk for G-code input; supports Ethernet file transfer; no file size limitation

Supports common CAD/CAM software: ArtCAM, MasterCAM, ProE, JDSoft SurfMill, Aspire, Fusion 360

Supports standard MPG

Supports “Try Cutting” (handwheel guiding) and Jog function (continuous, step, or defined distance)

Supports Float Probe, Fixed Probe, Vertex Probe, and Tool Length Measurement

Supports quick positioning to a specified or nearest line

Supports Array Machining, Sequence Machining, Plane Milling, and Cylindrical Milling

Supports XYZA axis offset configuration

Supports Pause, Power-Cut Recovery, and Breakpoint Resume

Supports multiple work origins

Supports X/Y axis midpoint finding

Simulation function allows adjustment of feed override and path checking during preview

Supports dual-motor configuration for gantry systems (Slave X/Y/Z)

English and Chinese interfaces; supports international character encoding for additional languages

Supports NPN limit switches

Four user access levels: visitor, operator, admin, and super admin;



New Functions Compared with DDCS V3.1

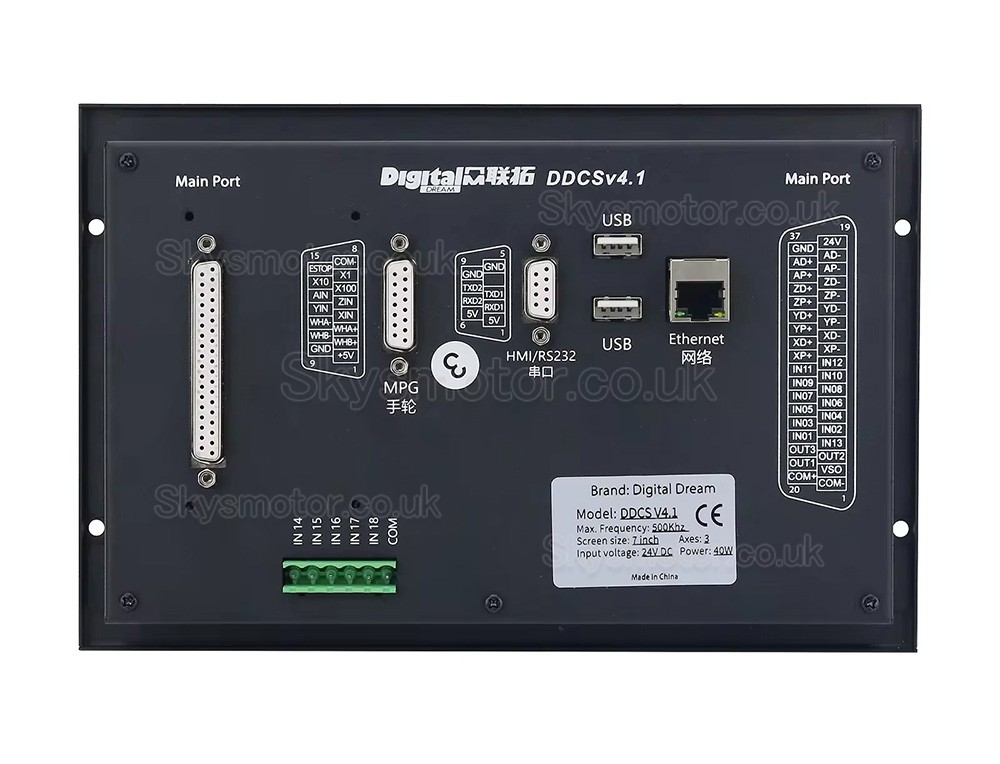

Added USB port and EtherCAT interface

Added Servo Spindle option

Added Slave X, Y, or Z for gantry machine configuration

Added polar coordinate and rotation programming commands, and radius compensation commands

Updated motion algorithm for improved path accuracy in long G-code programs

Supports quick activation of “Start from specified line” and “Start from nearest point”

Improved simulation with adjustable FRO and resume capability

Added driver alarm input ports with configurable pin assignment

Added cycle encoder for unlimited A-axis rotation

Added analysis prompt window

Added smooth stop parameters for emergency stop to reduce impact and prevent position deviation

FPGA uses 32-bit speed generator, supporting higher speed and acceleration resolution

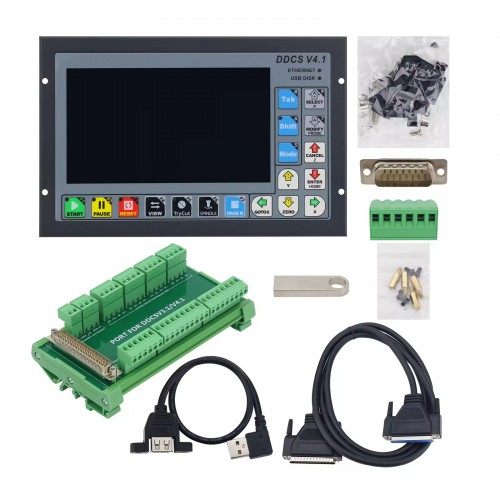

Package Contents:

1 × DDCS V4.1 3-Axis or 4-Axis Controller

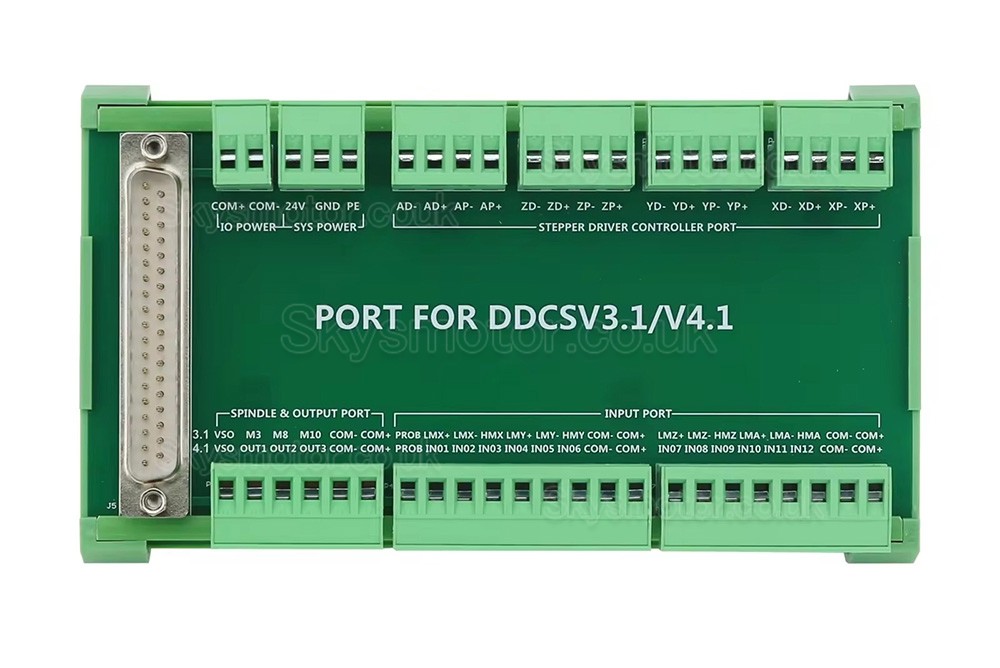

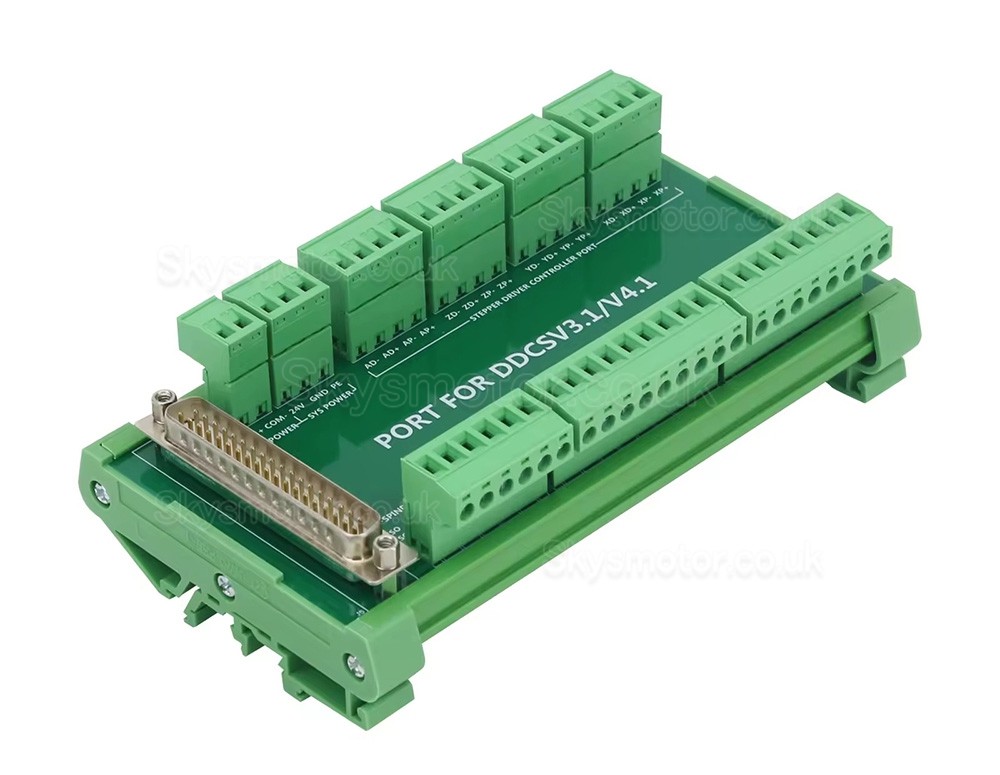

1 × DB37 Cable (Controller to Wiring Board)

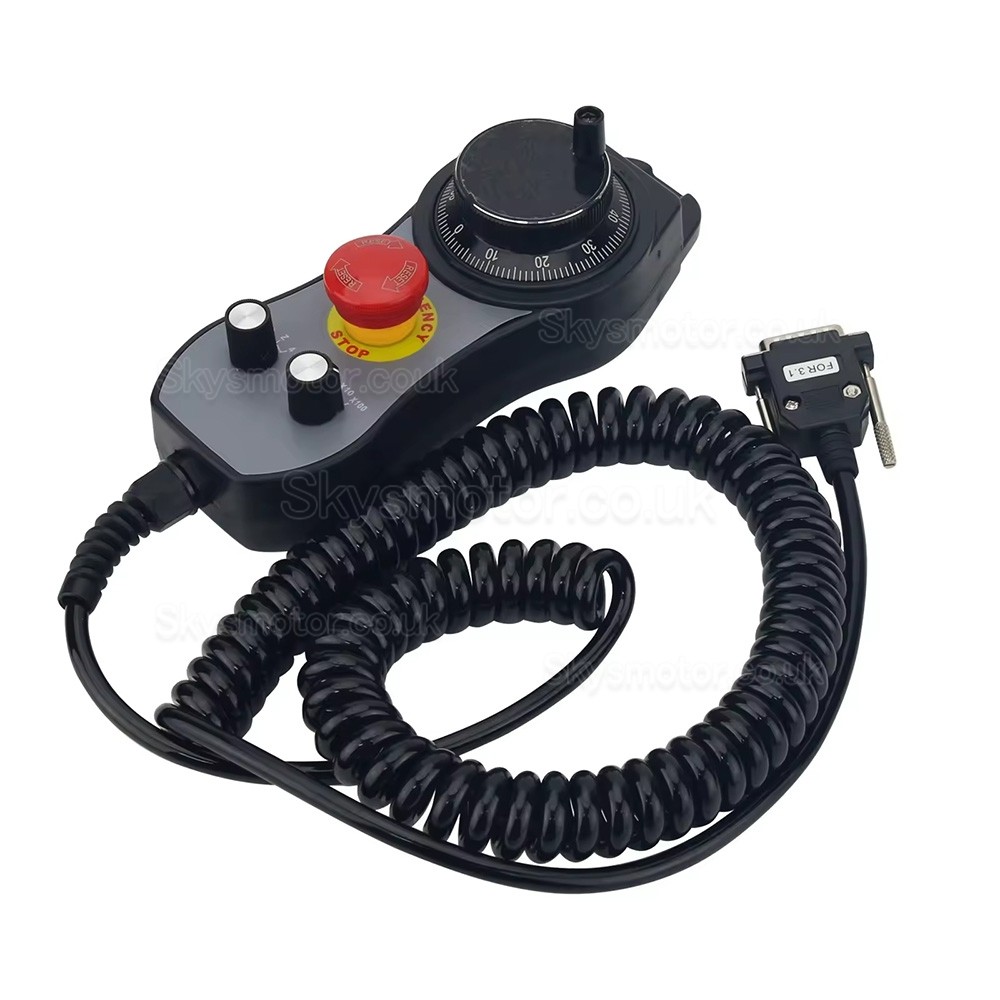

1 × DB15 Handwheel Interface Cable

1 × 50 cm USB Extension Cable

1 × USB Flash Drive

1 × Set of Mounting Screws

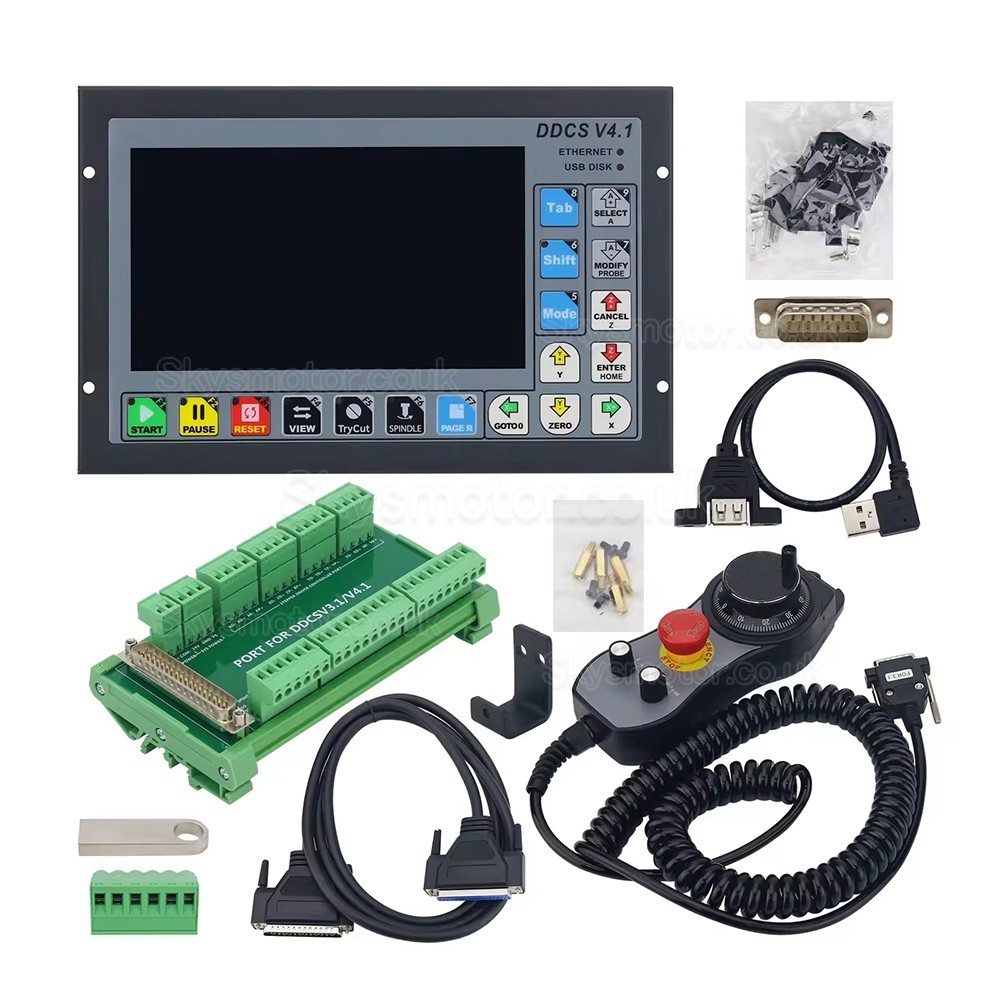

CNC Controller with Manual Pulse Generator DDMPG:
