Fully Sealed CNC Linear Guide Module Ballscrew Slide Table QMF40 with Stepper Motor & Driver

Fully Sealed CNC Linear Guide Module Ballscrew Slide Table QMF40 with Stepper Motor & Driver

Electric Linear Actuator Motor System

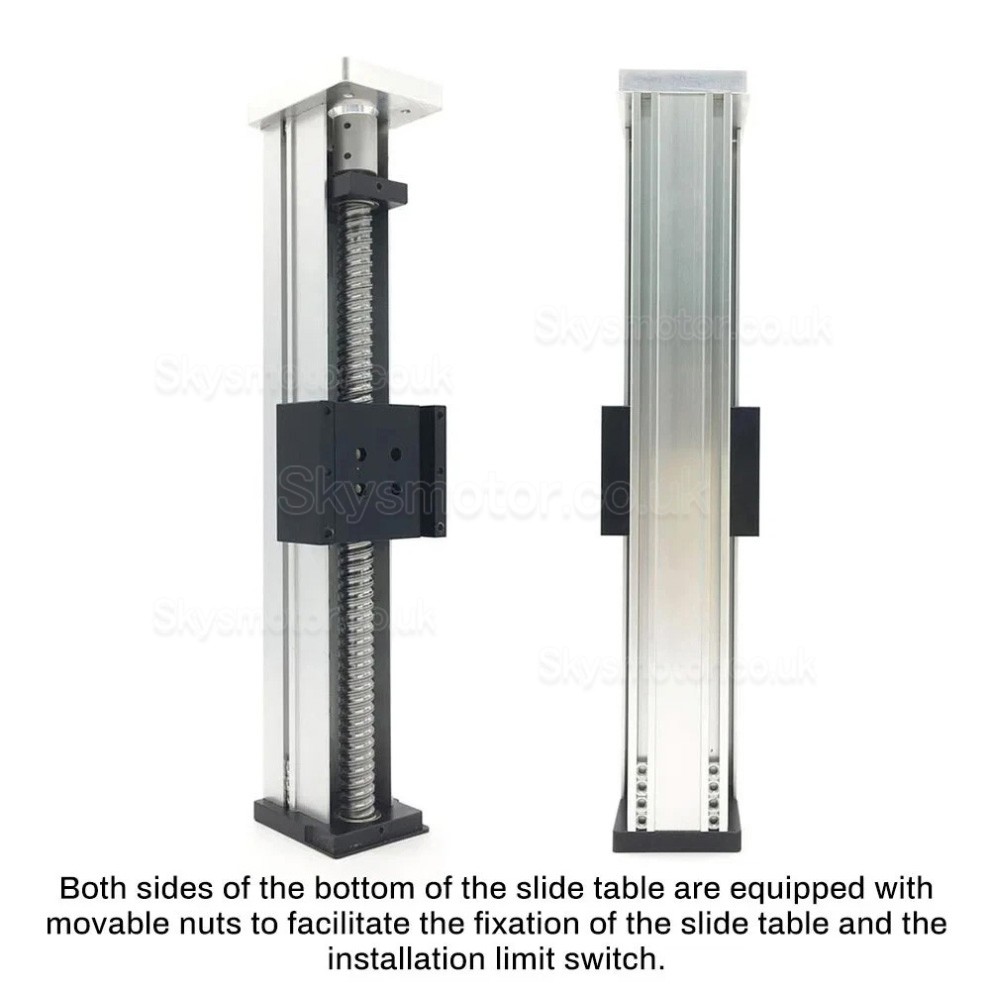

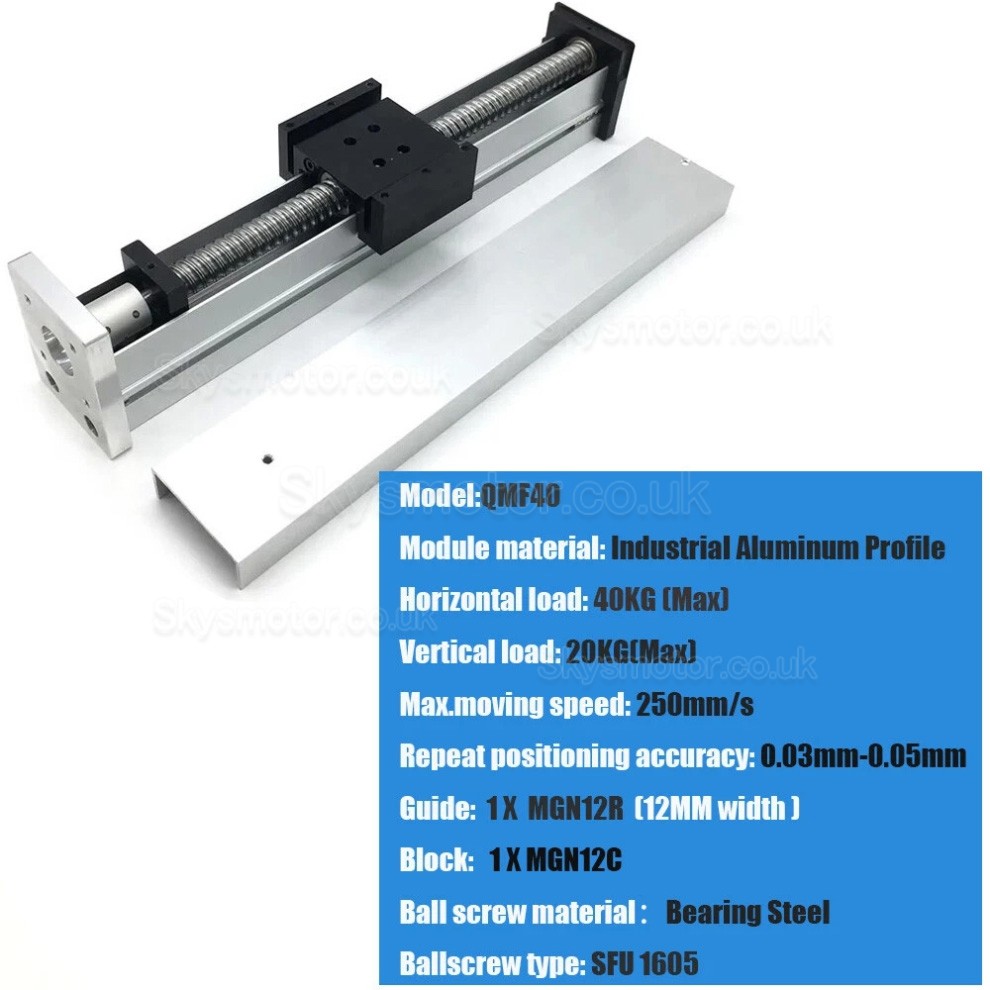

Model: QMF40

Material: Aluminum alloy housing and bearing steel ball screw

Stroke options: 100–500 mm

Horizontal load capacity: 40 kg

Vertical load capacity: 20 kg

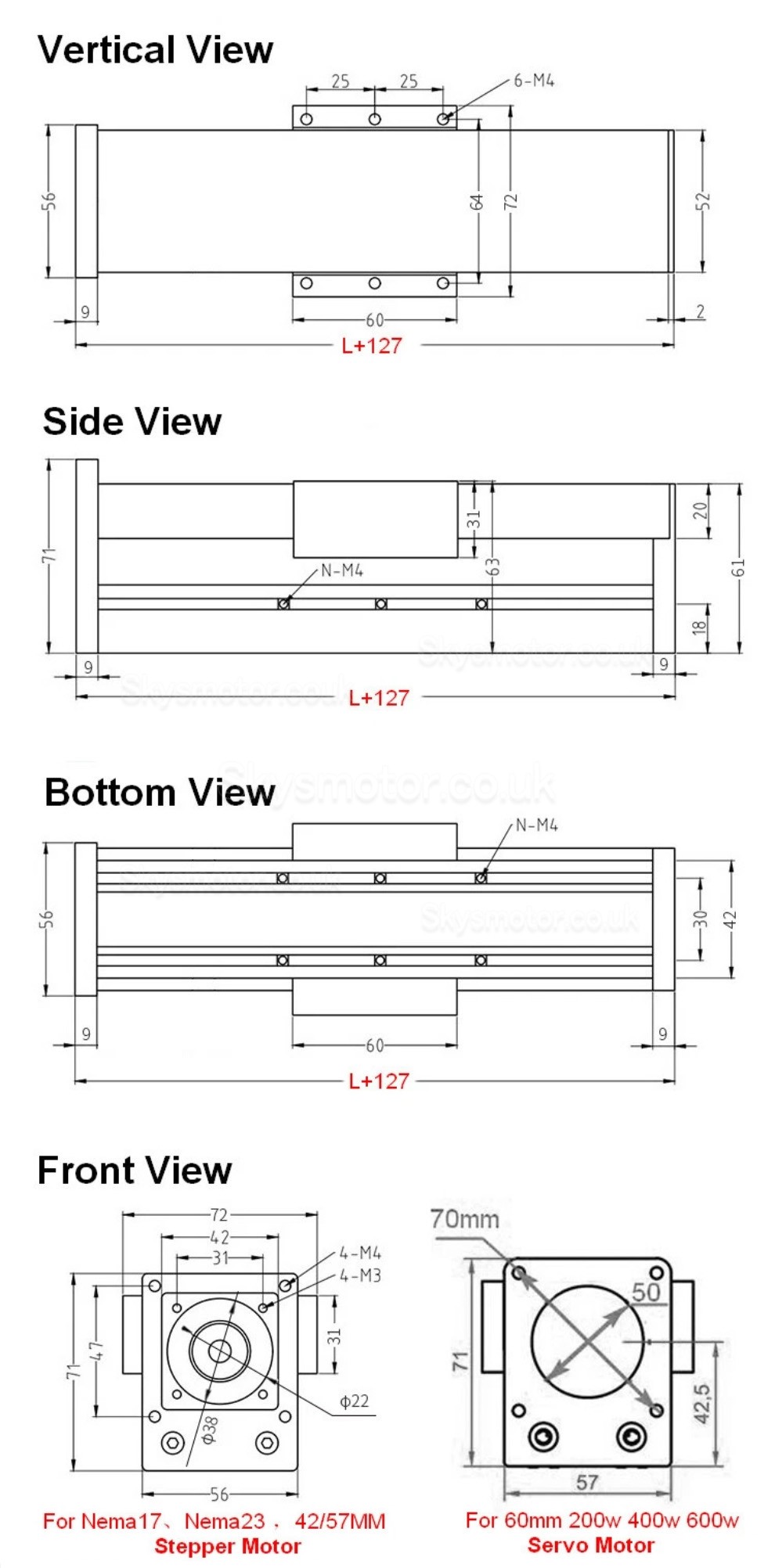

Module width: 42 mm

Repeat positioning accuracy: 0.03–0.05 mm

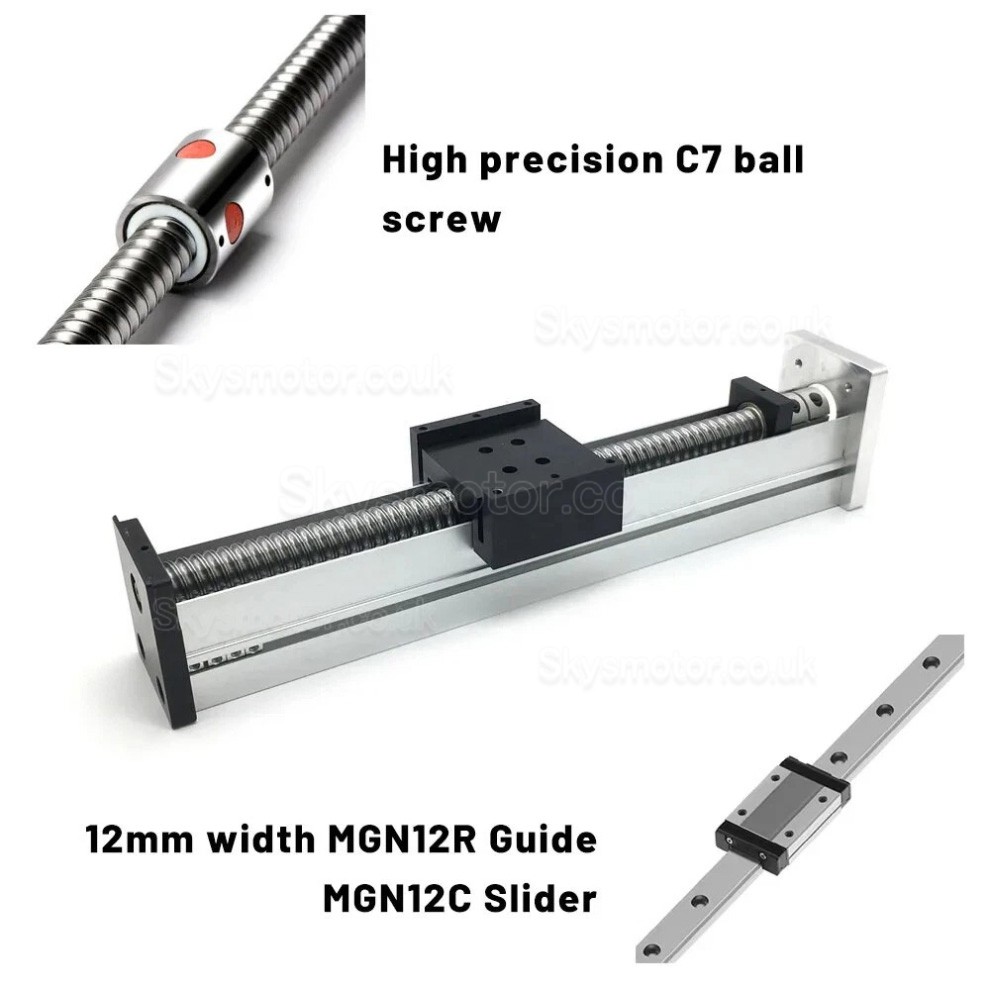

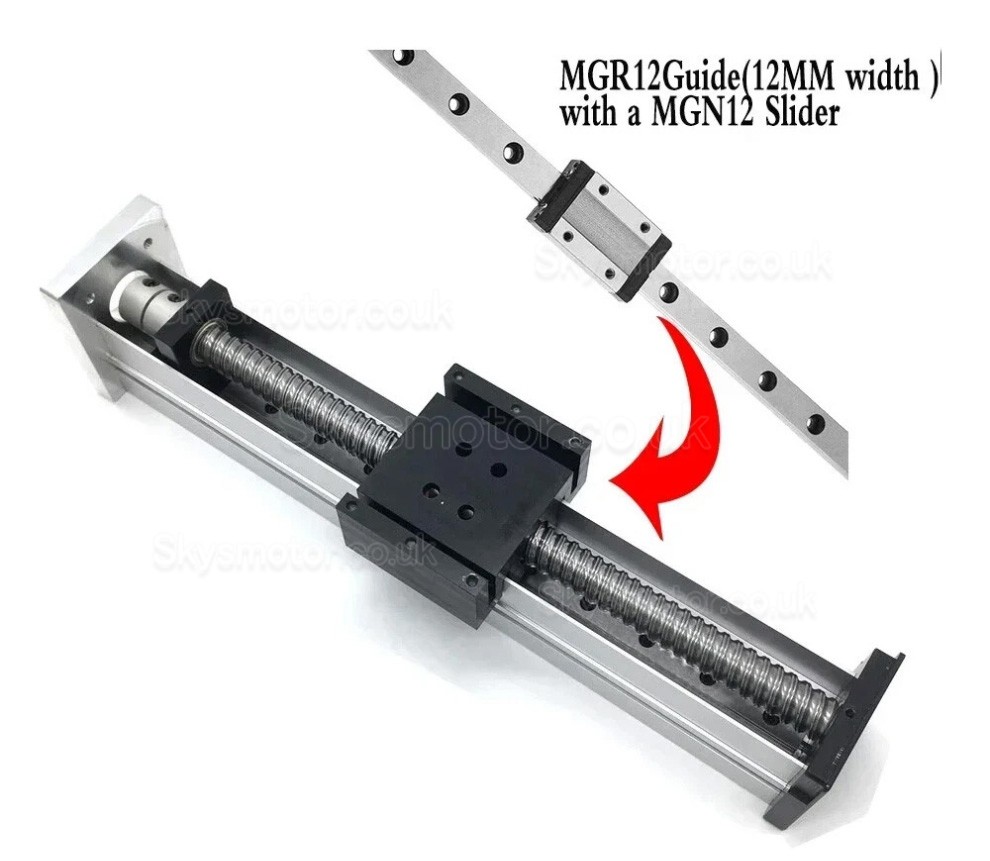

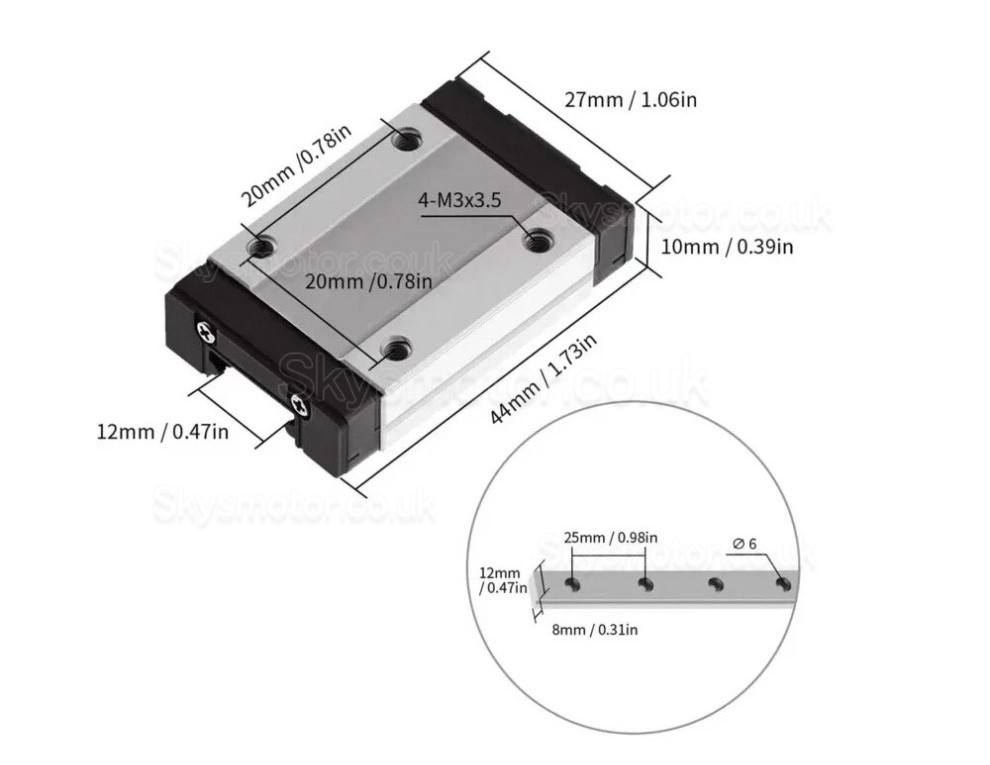

Guide: MGN12R rail, MGN12C block

Ball screw type: 1605 (16 mm diameter, 5 mm lead), accuracy C7

Maximum speed: 250 mm/s

Motor mount: 57 mm stepper motor bracket

Noise level: below 50 dB

Protection: Enclosed cover design for resistance to dust, water, and corrosion


Applications:
Automotive systems, furniture, medical devices, industrial and agricultural equipment.

Typical uses: Recliners, electric wheelchairs, hospital beds, massage tables, electric sofas.

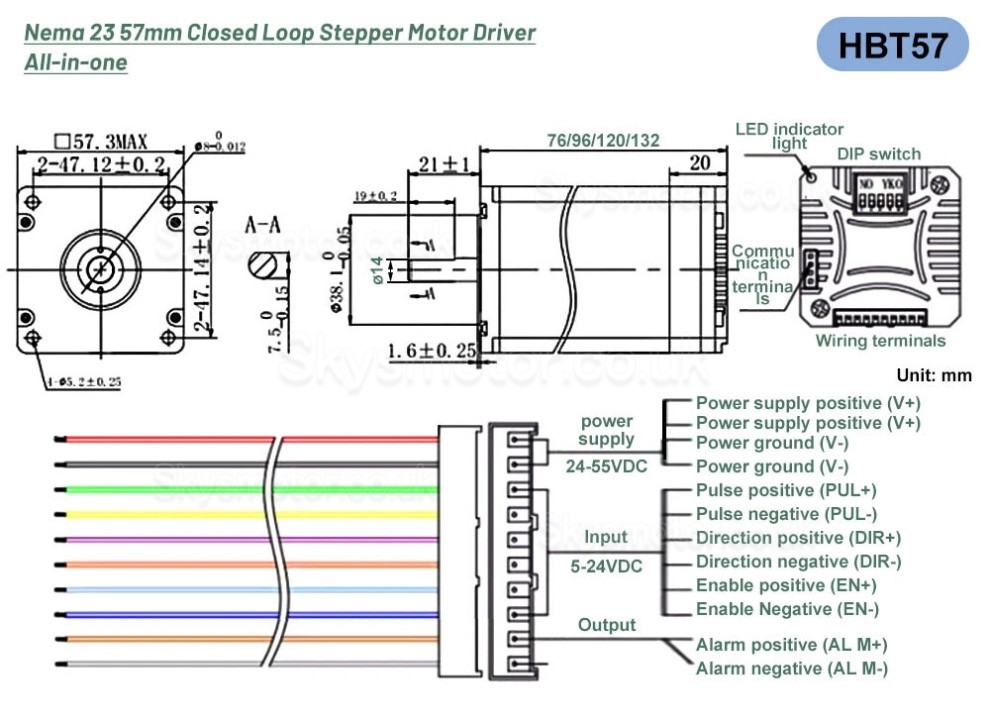

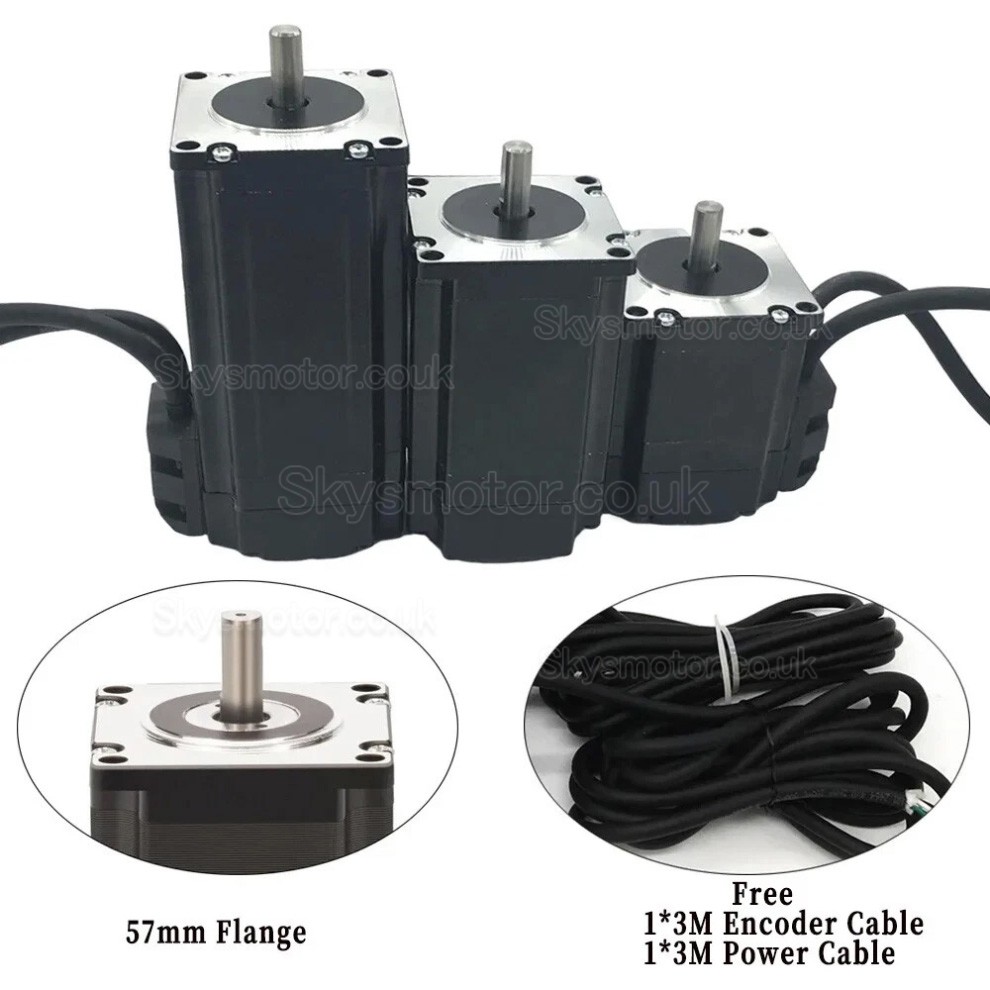

NEMA23 Closed-Loop Stepper Motor:

Flange size: 57 mm (NEMA23)

Step angle: 1.8°

Phases: 2

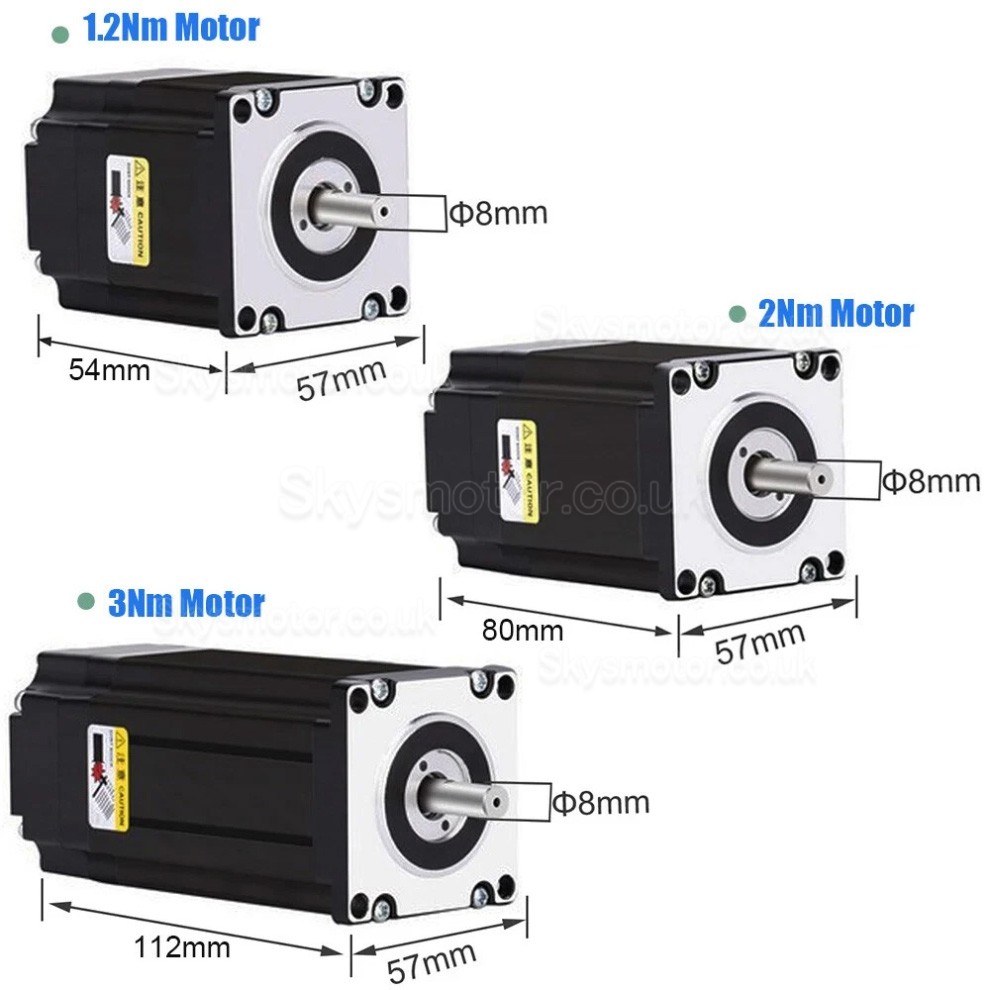

Holding torque: 1.2 / 2.0 / 3.0 Nm

Motor length: 56 / 80 / 112 mm

Rated speed: 1000 RPM

Encoder resolution: 1000 lines

Resistance: 0.4 / 0.7 / 0.8 Ω

Inductance: 1.2 / 2 / 3.5 mH

Insulation class: B

Motor Specifications

Additional Parameters

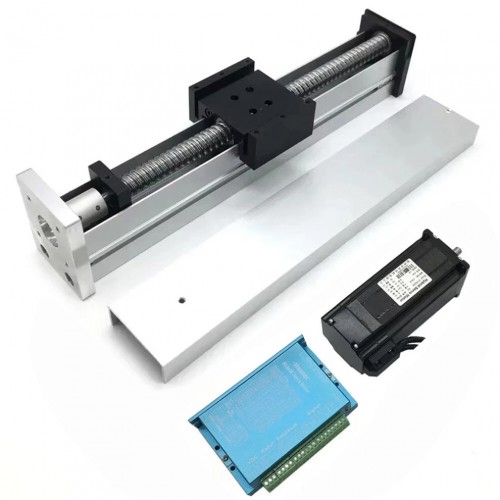

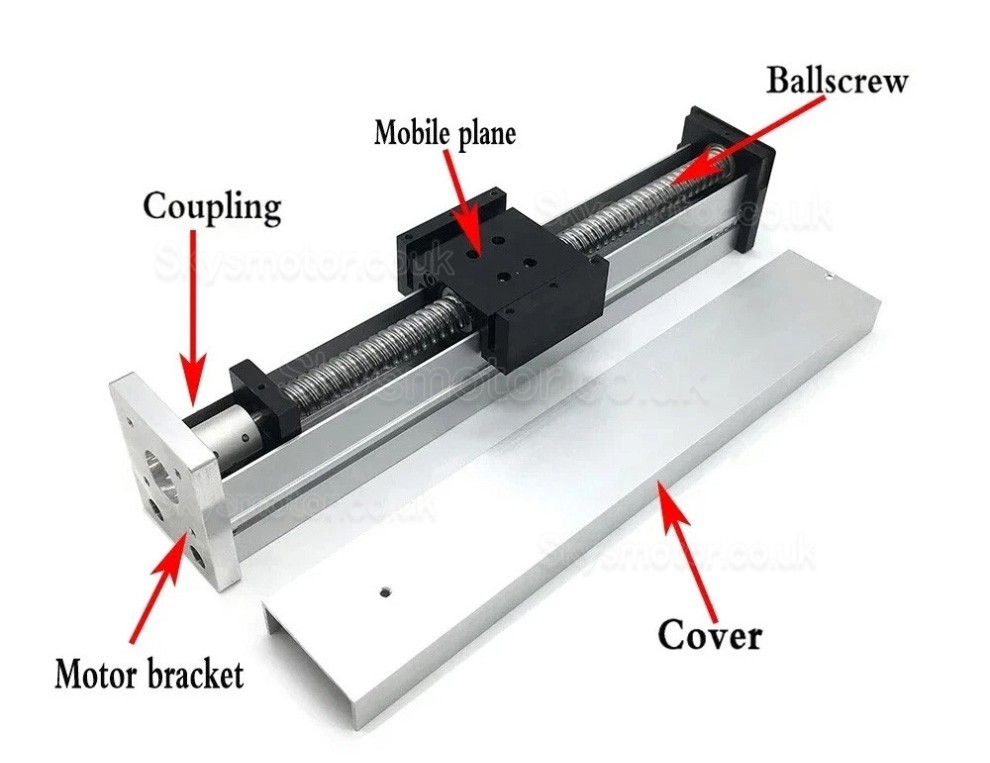

Package Includes

1× Sliding table

1× Coupling (8 mm hole, for 57 mm motor bracket)

1× NEMA23 closed-loop stepper motor (1.2/2/3 Nm)

1× HB808C driver

1× 3 m encoder cable

1× 3 m power cable

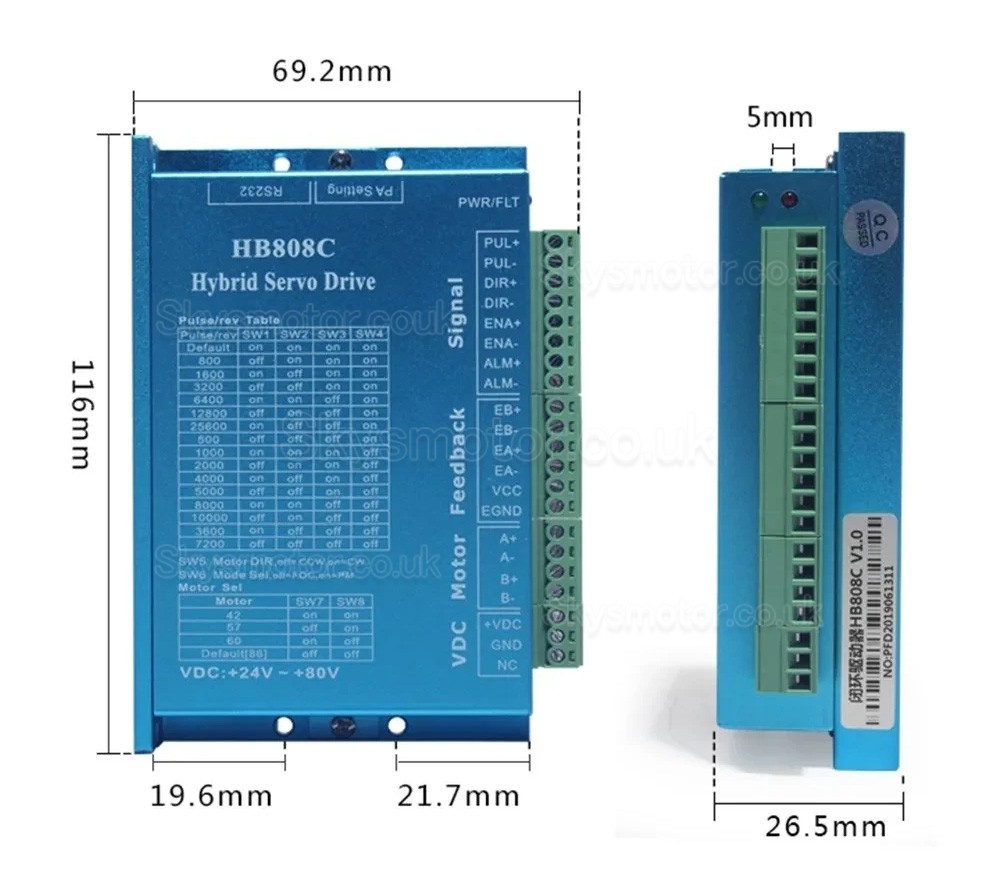

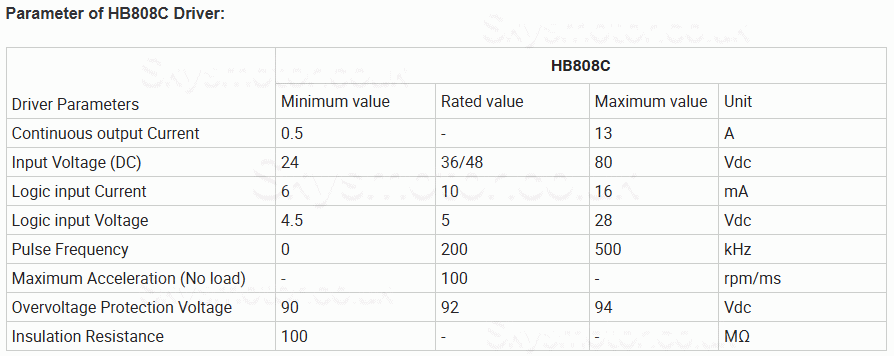

HB808C Driver Specification:

Model: HB808C

Type:DSP Closed loop stepper drive;

Maximum peak current: 8A;

Impulse response frequency: 200KHz;

Micro-stepping driver:   200~51200ppr;

Input Voltage:   20~80VAC/30-110VDC;

Protective function: Over voltage, over current, tracking error, over proof;

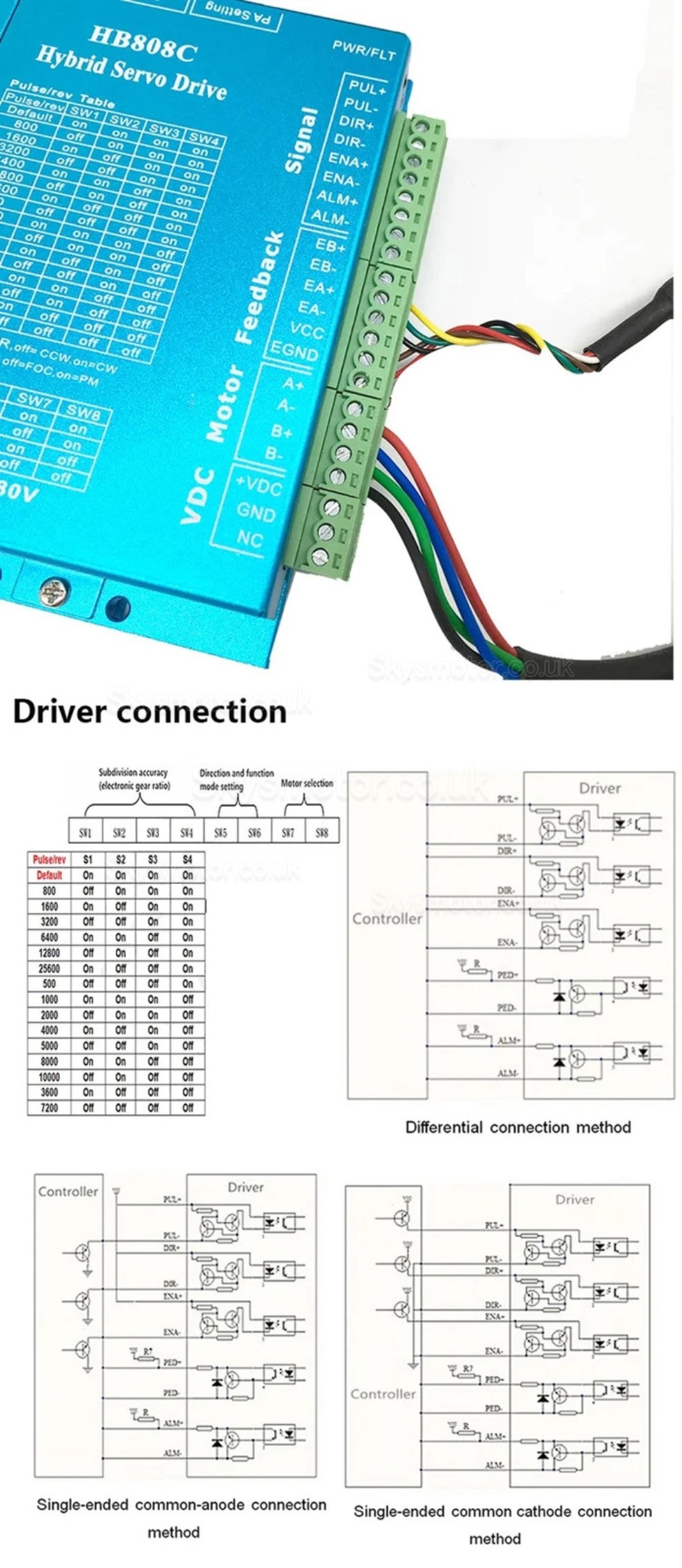

Signal input: Support PUL/DIR and CW/CCW modes (difference);

Compatible: 5~24V signal (Don't need a resistor);

Type of cooling: Air-cooling;

Logic Signal Current: 7-16 Ma;
