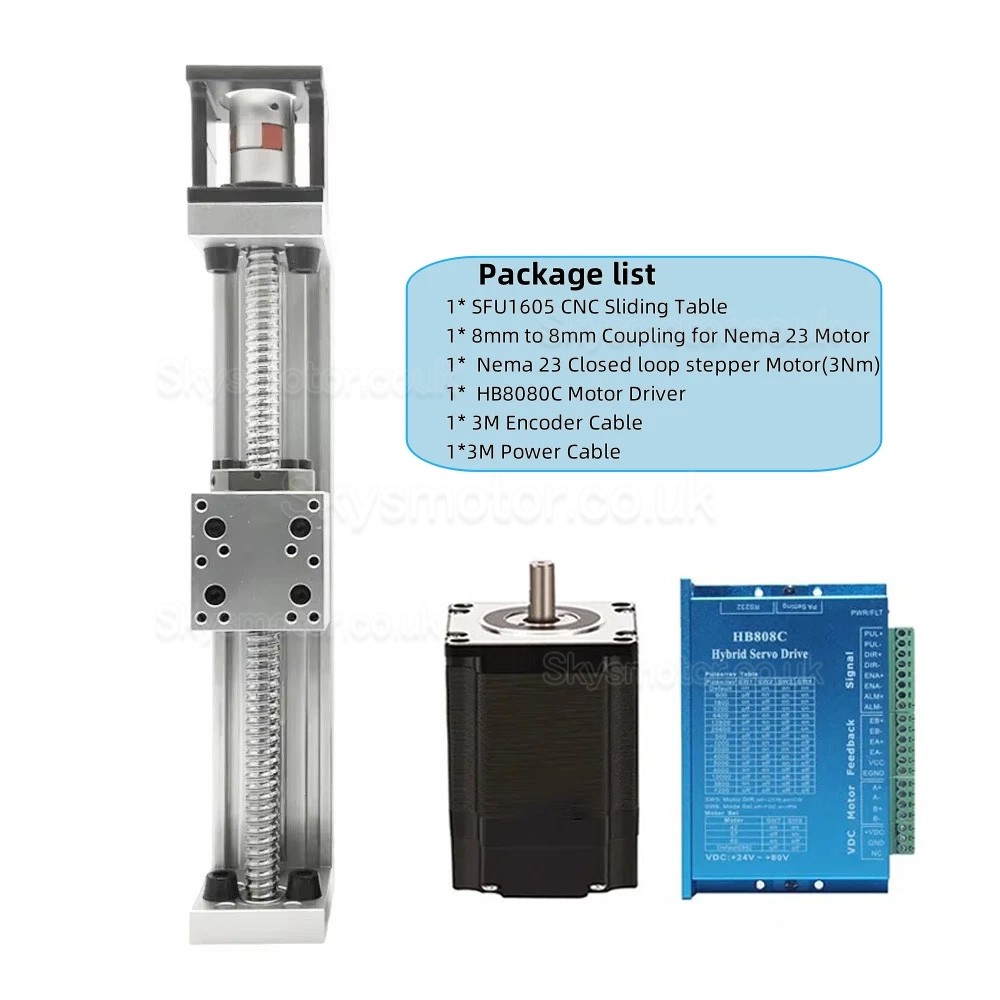

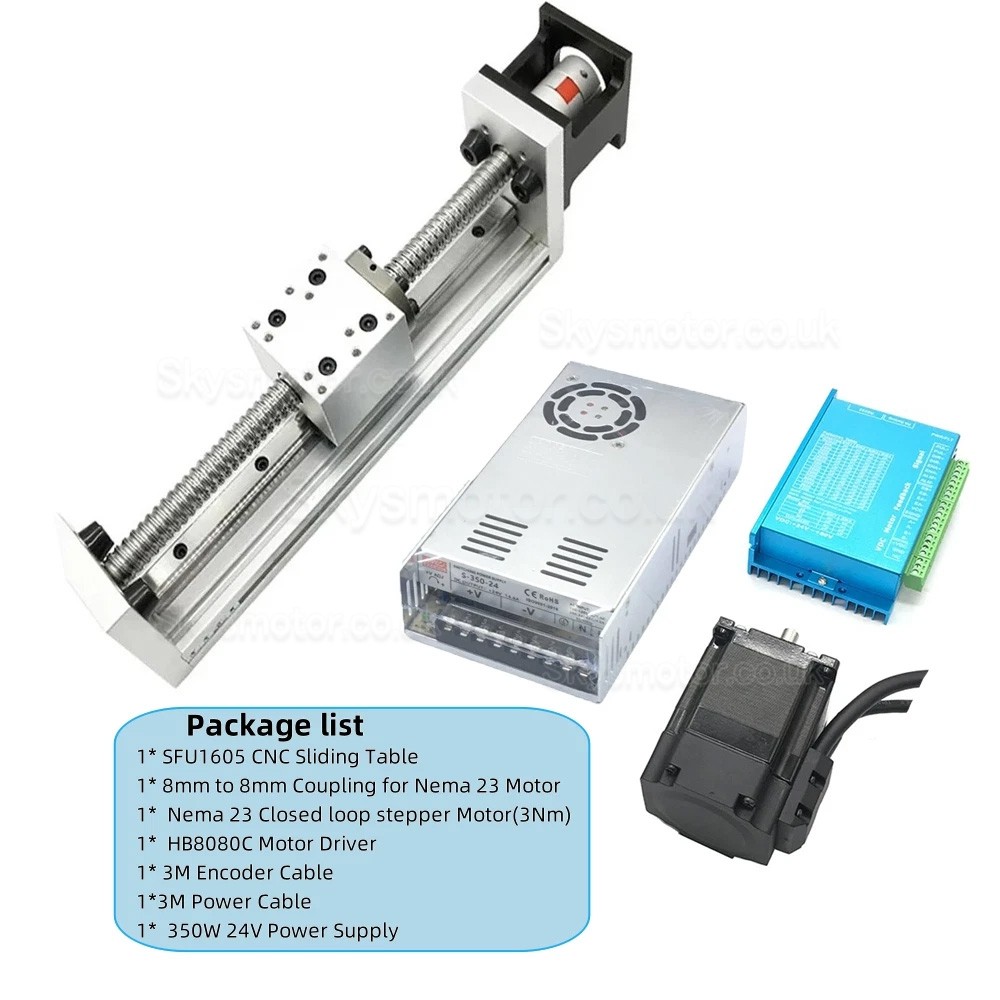

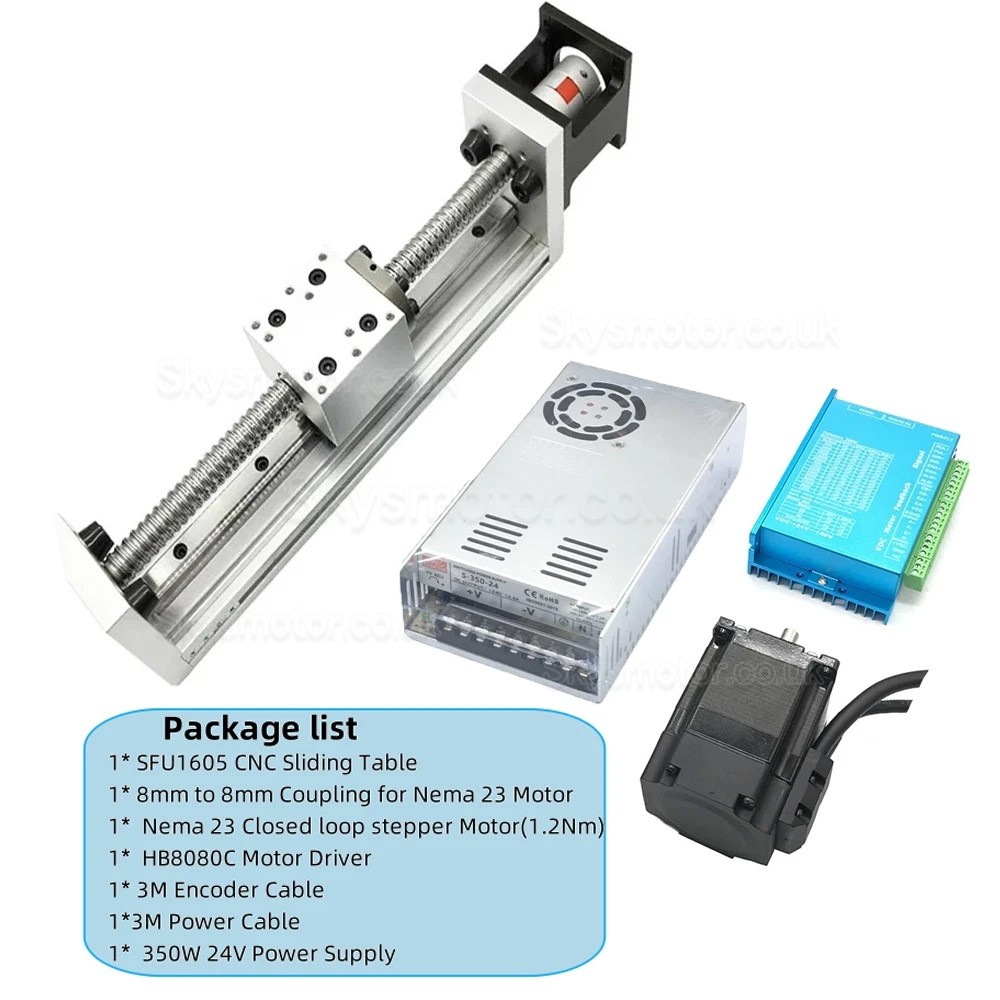

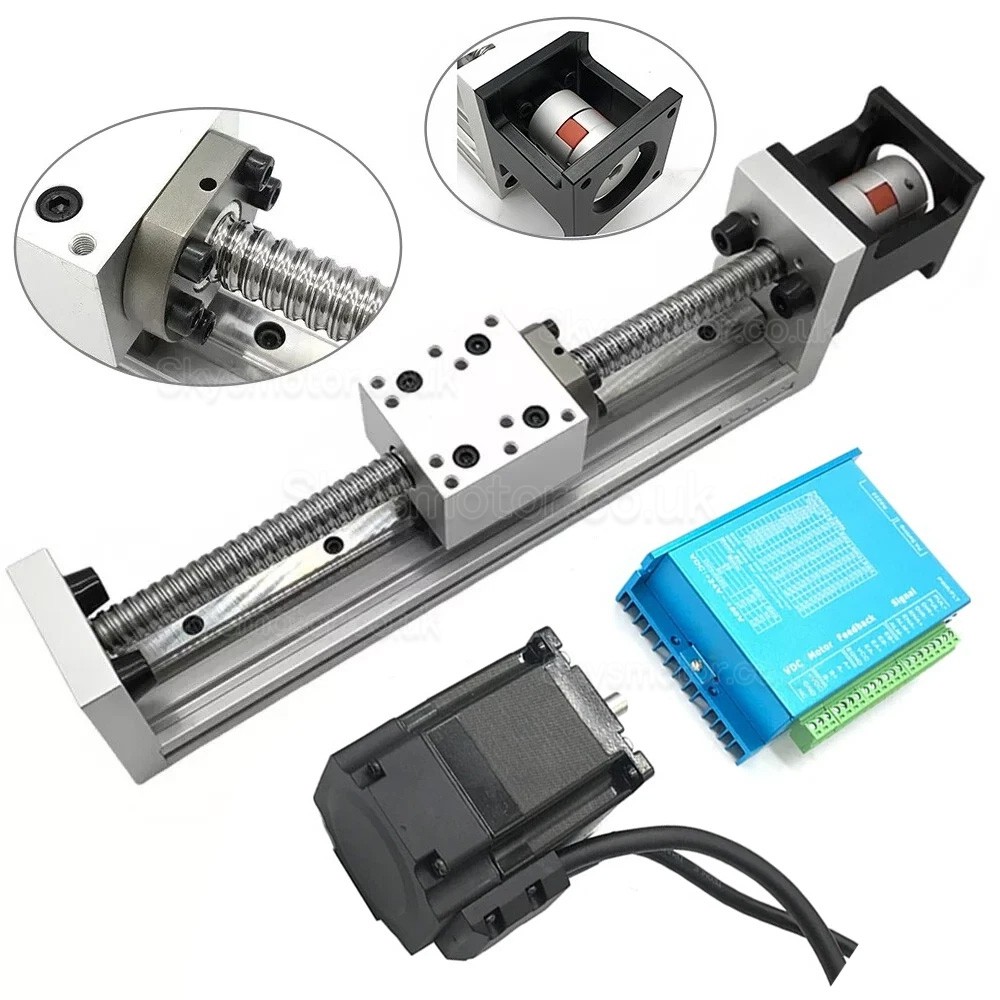

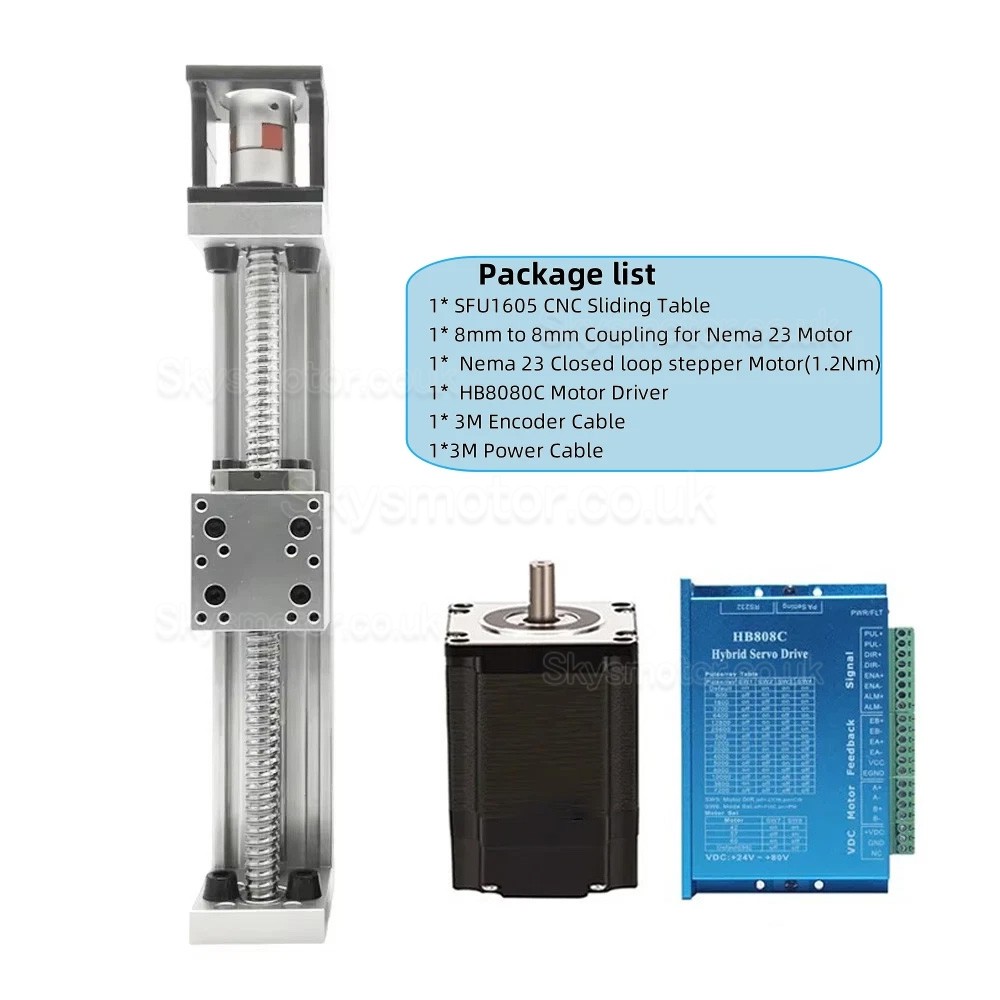

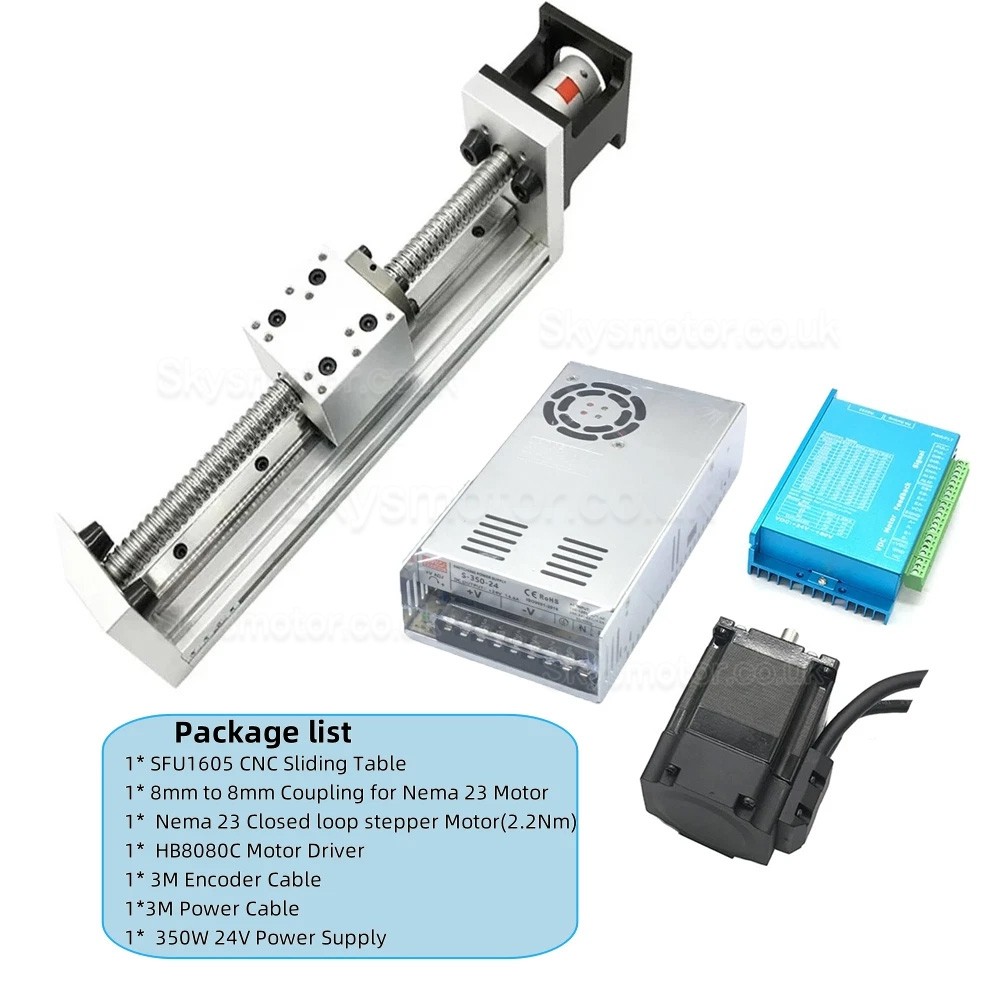

Ballscrew Linear Rail Stage DXG-YR60 CNC Slide Table Kit with Nema 23 Closed Loop Stepper Motor & Driver Kit

Ballscrew Linear Rail Stage DXG-YR60 CNC Slide Table Kit with Nema 23 Closed Loop Stepper Motor & Driver Kit

Features:

C7-grade ballscrew with repeatability of ±0.02–0.03 mm.

Supports loads up to 60 kg horizontally and 30 kg vertically.

Closed-loop motor system with encoder feedback helps prevent step loss.

16-step subdivision and 400 kHz response frequency.

Intelligent current regulation assists in reducing power consumption at low load and supports torque output at high load.

Compatible with 5–24 V input, no external resistance required.

AC 18–80 V / DC 20–110 V voltage range.

Adjustable pulse delay (default 40 ms).

External alarm and position output ports for system monitoring.

Structural components made of carbon steel, bearing steel, and aluminum alloy.

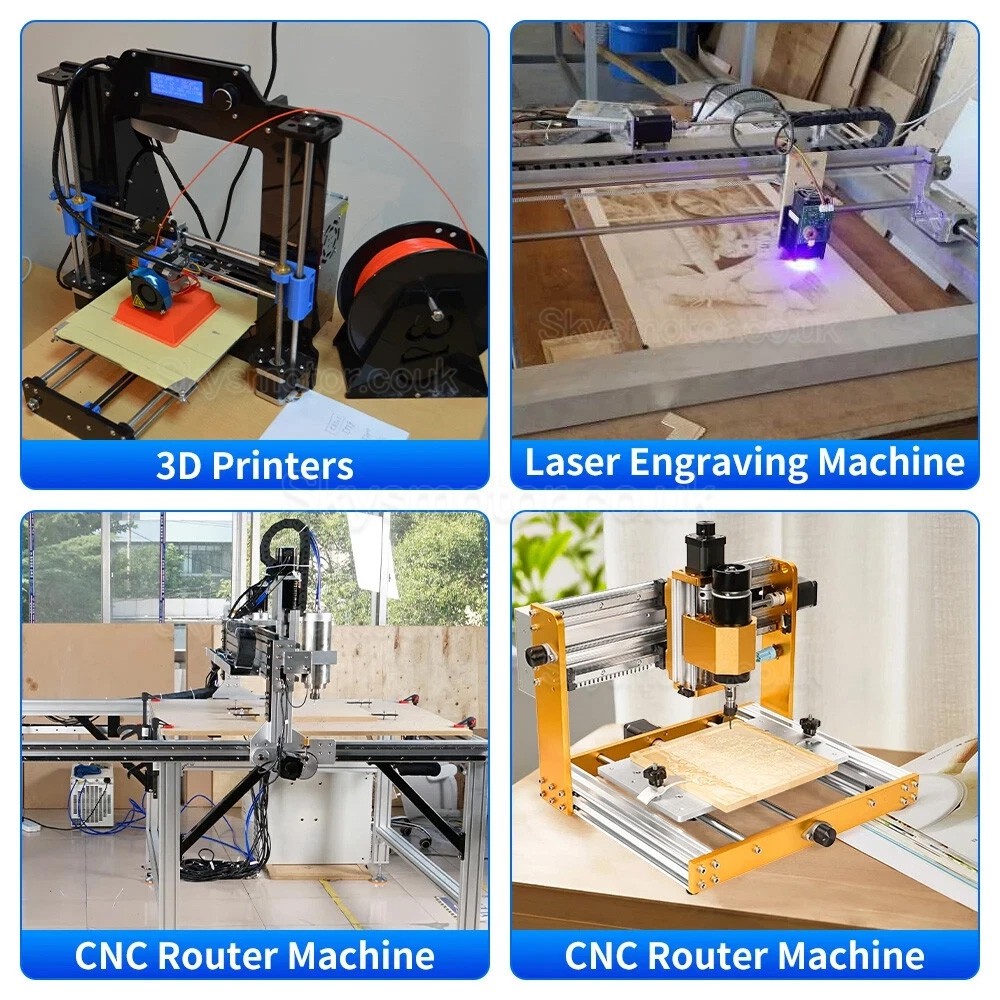

Applications:

CNC machinery (Z-axis lifts, router tables, laser engravers).

Automation systems (pick-and-place units, assembly conveyors).

Laboratory devices (microscope stages, testing platforms).

3D printers (precision motion stages).

Industrial equipment (packaging machines, fixture assemblies).


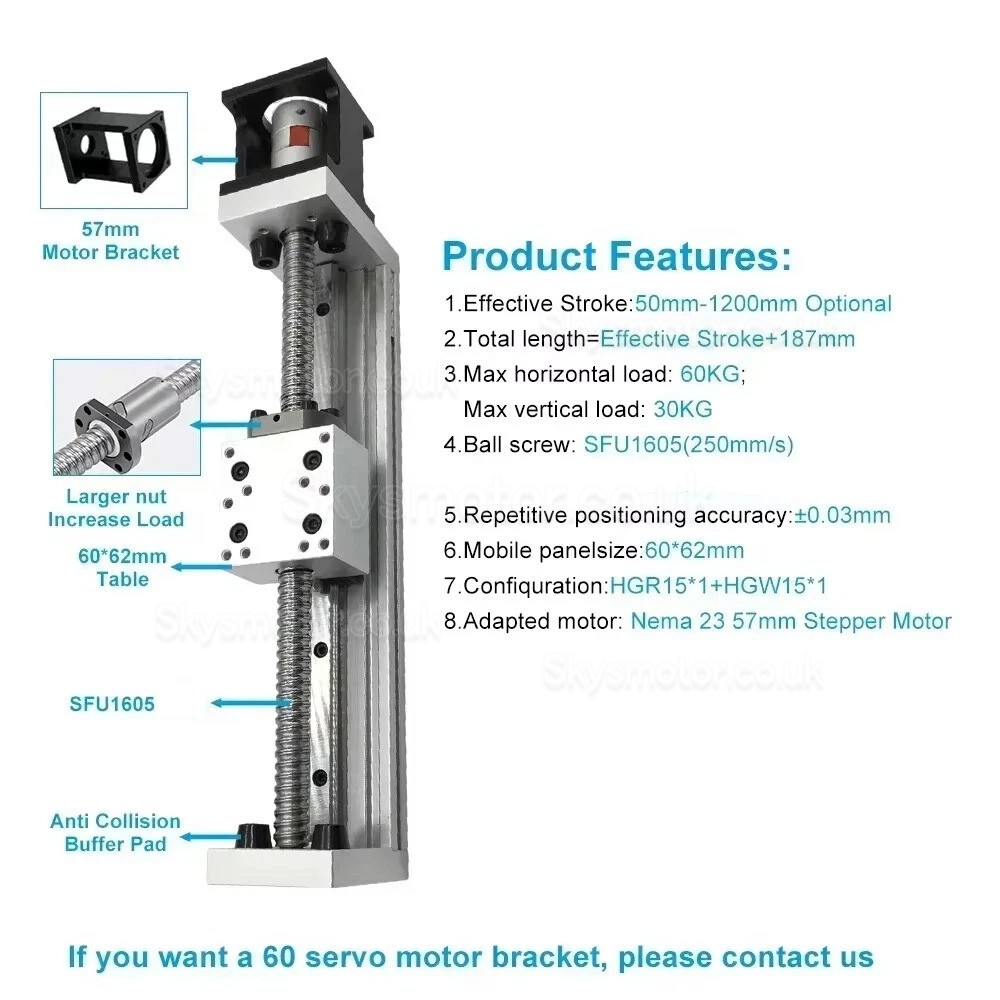

Parameters:

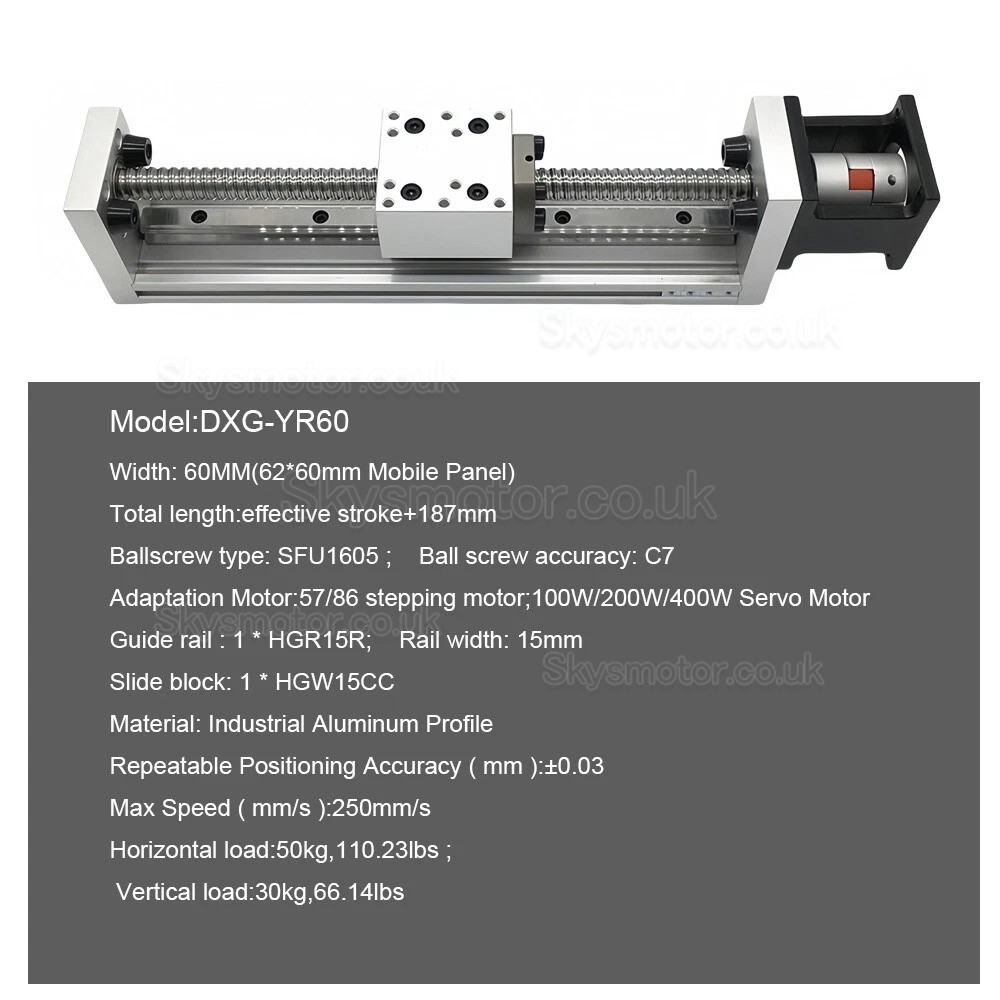

Model: DXG-YR60;

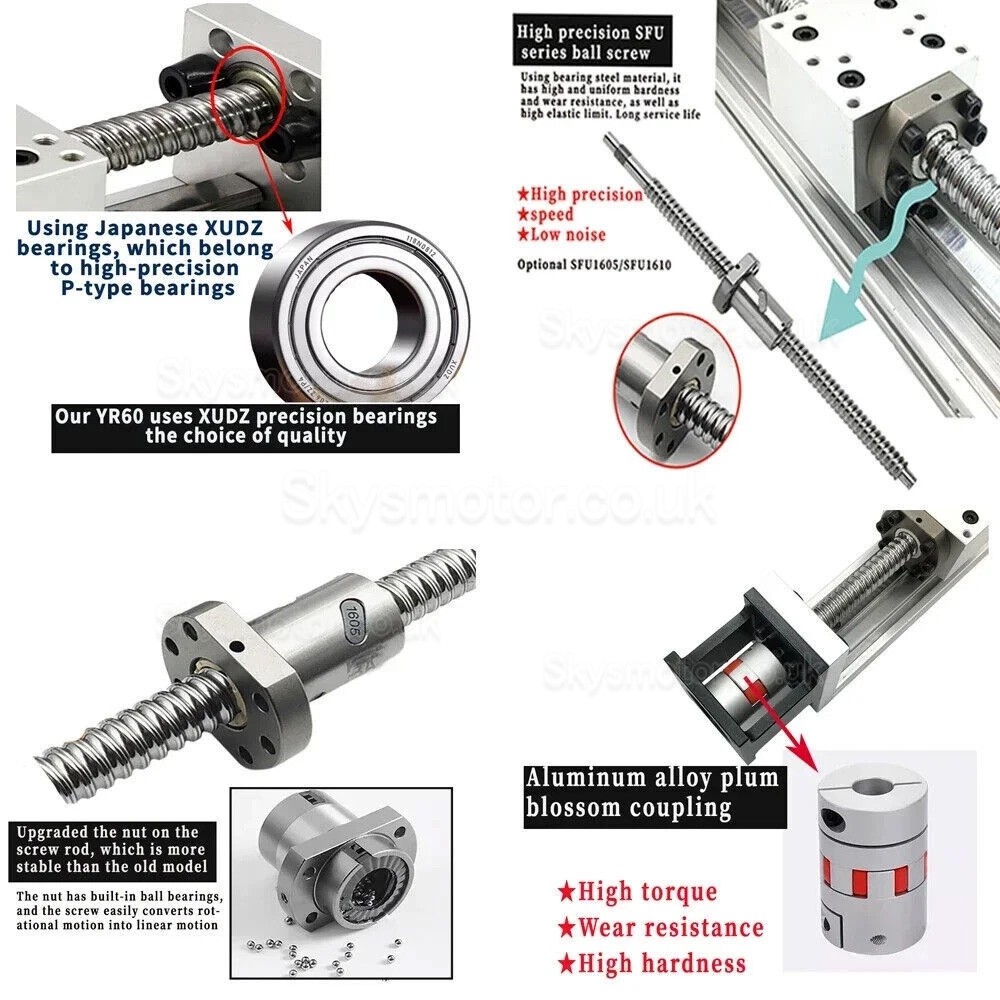

Ballscrew type: SFU1605 (16 mm diameter, 5 mm pitch);

Ballscrew accuracy: C7 grade;

Effective stroke: 100–300 mm optional;

Total length: Stroke + 187 mm;

Mobile panel: 60 × 62 mm;

Slide width: 60 mm;

Guide type: HGR15R, slider type: HGW15CC;

Horizontal load: 60 kg max;

Vertical load: 30 kg max;

Repeat positioning accuracy: ±0.02–0.03 mm;

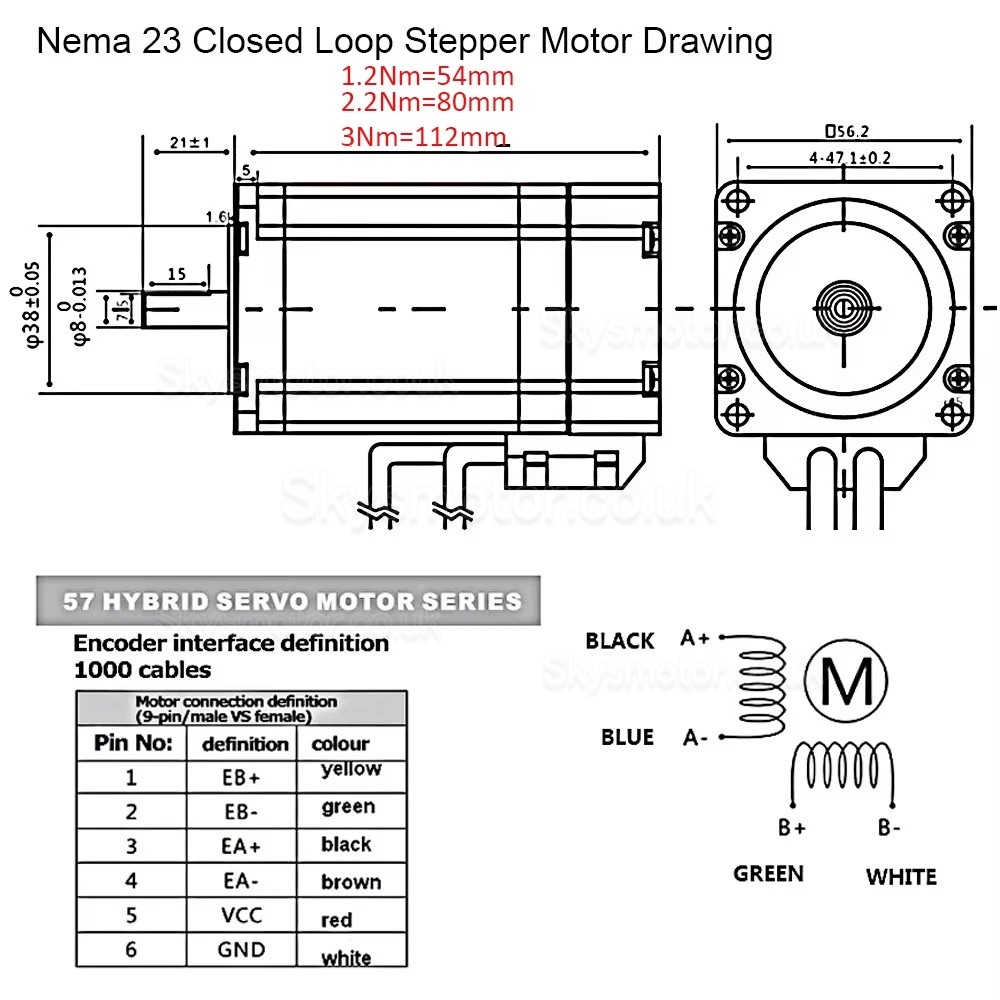

Motor support: Nema 23 stepper / 60 servo motor;

Material: Carbon steel, bearing steel, aluminum alloy;

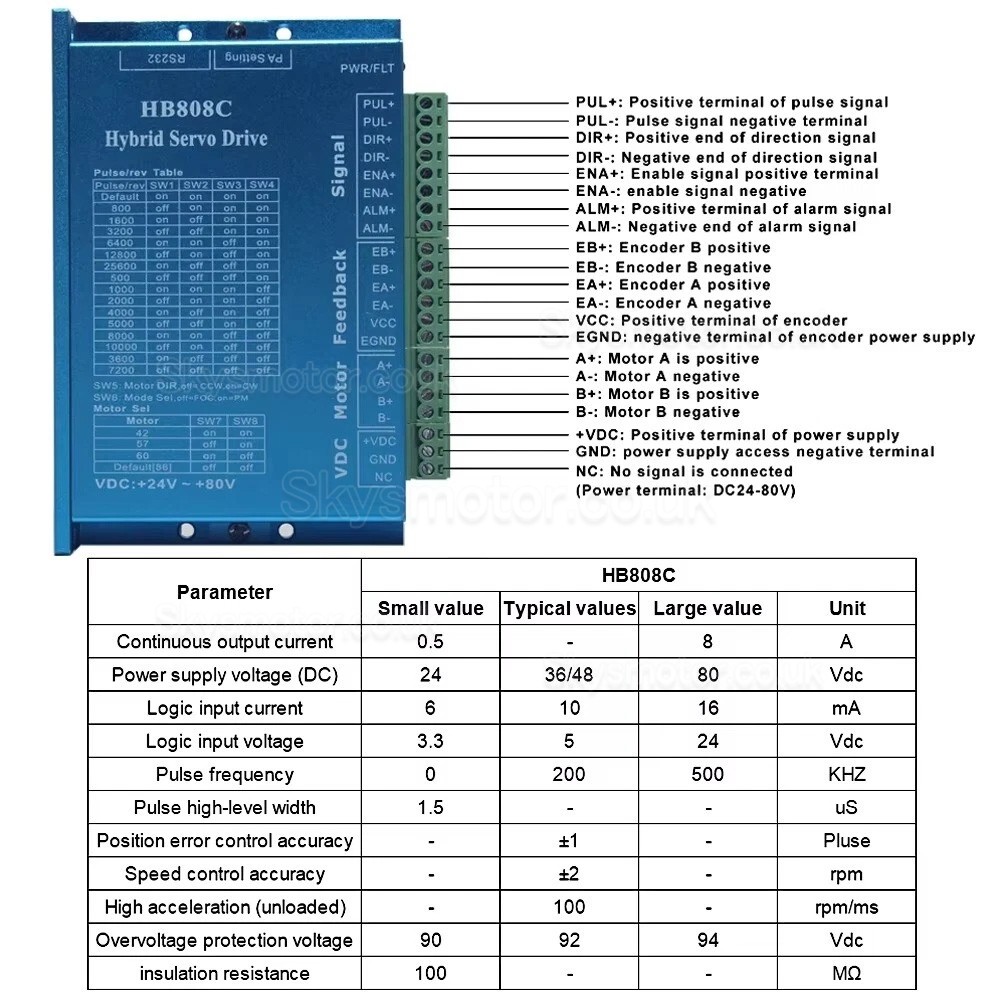

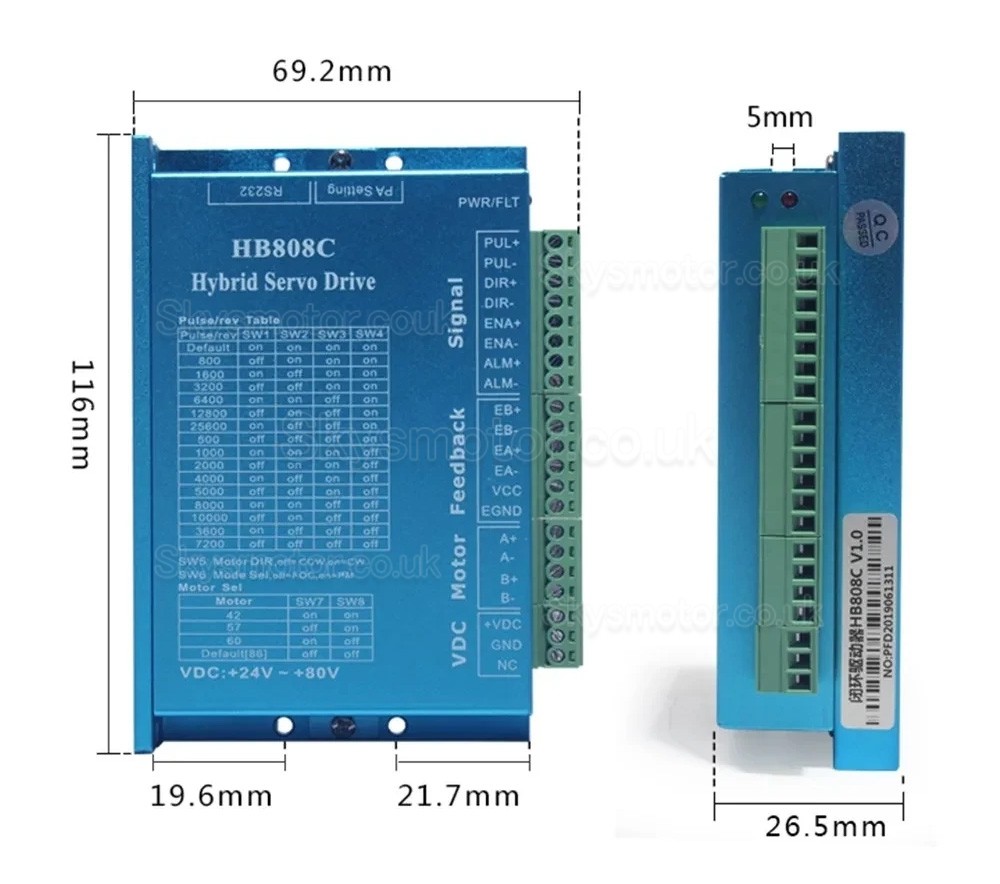

HB808C Driver Specification:

Model: HB808C

Type:DSP Closed loop stepper drive;

Maximum peak current: 8A;

Impulse response frequency: 200KHz;

Micro-stepping driver: 200~51200ppr;

Input Voltage: 20~80VAC/30-110VDC;

Protective function: Over voltage, over current, tracking error, over proof;

Signal input: Support PUL/DIR and CW/CCW modes (difference);

Compatible: 5~24V signal (Don't need a resistor);

Type of cooling: Air-cooling;

Logic Signal Current: 7-16 Ma;
