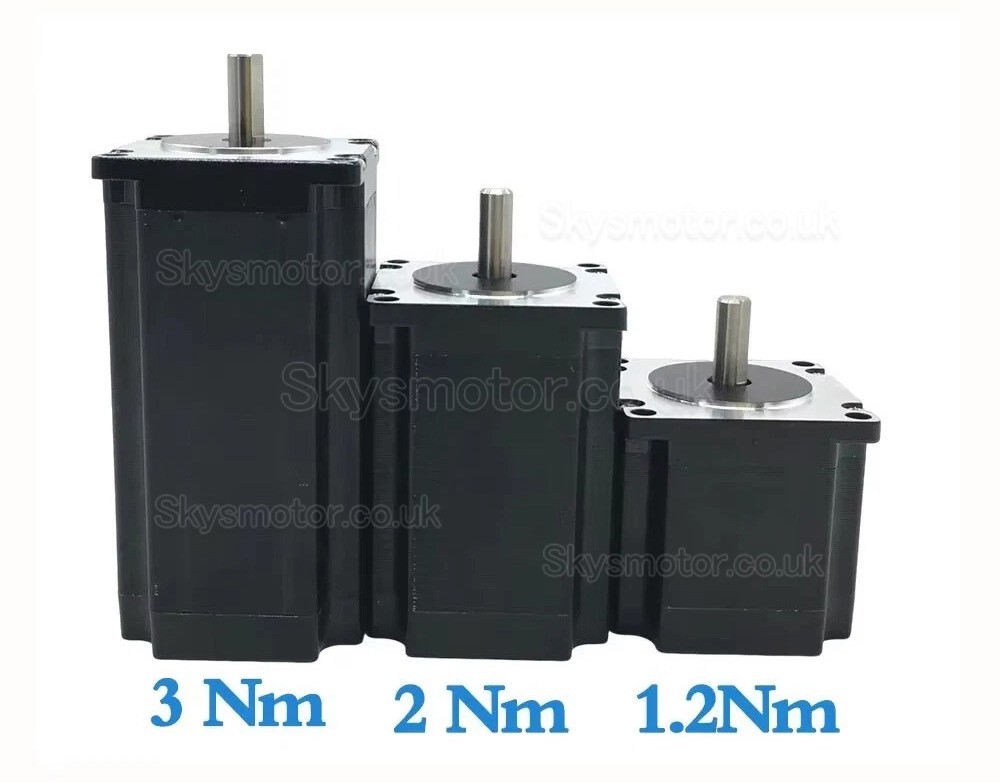

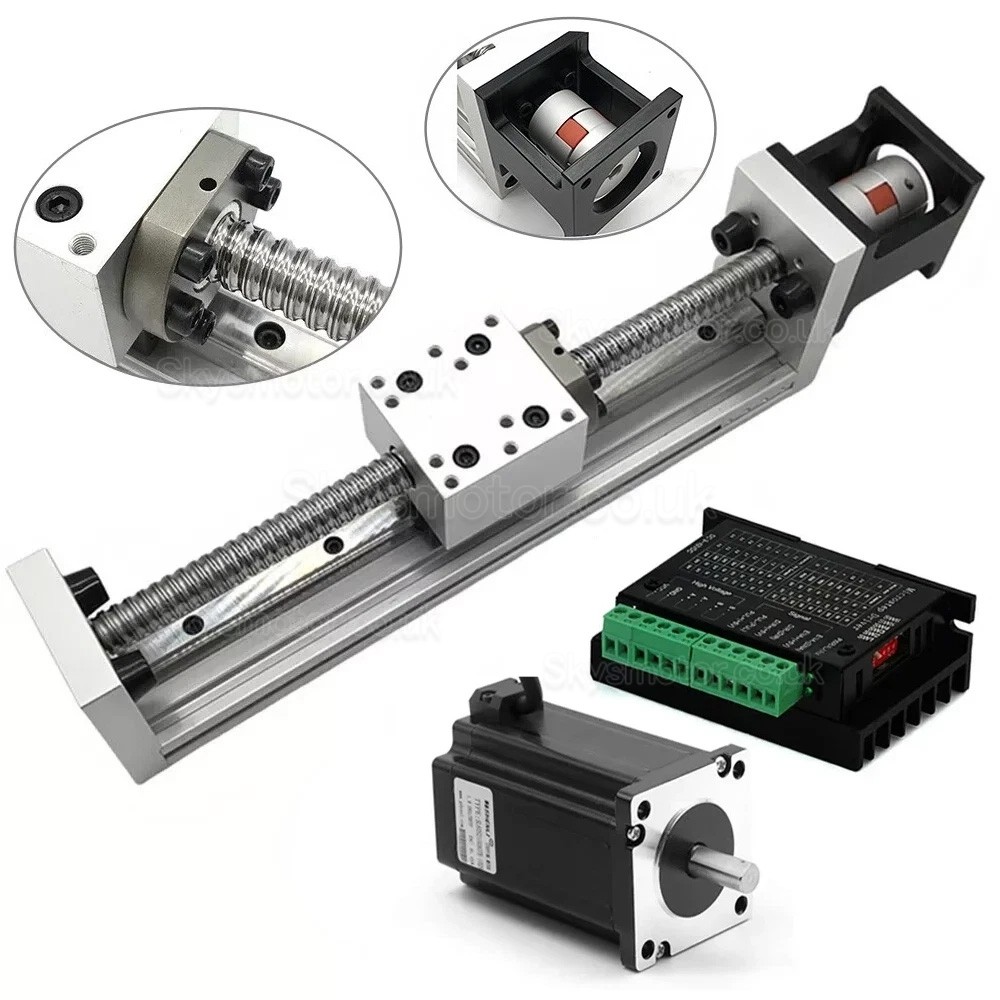

Mini Ballscrew Linear Module Table DXG-YR60+SFU1605 with 1.2/2/3Nm Nema 23 Stepper Motor & Driver Kit

Mini Ballscrew Linear Module Table DXG-YR60+SFU1605 with 1.2/2/3Nm Nema 23 Stepper Motor & Driver Kit

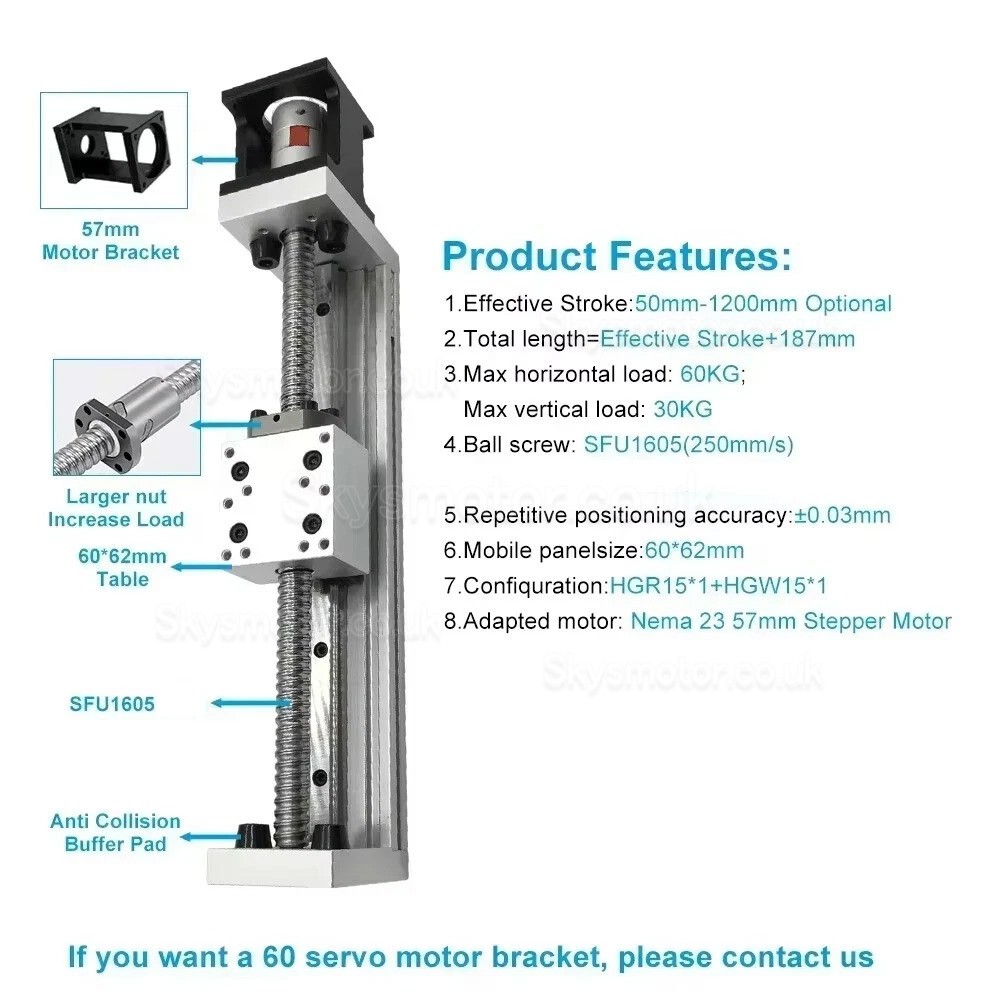

Features:

The table has a stated load capacity of 60 kg in horizontal orientation and 30 kg in vertical orientation.

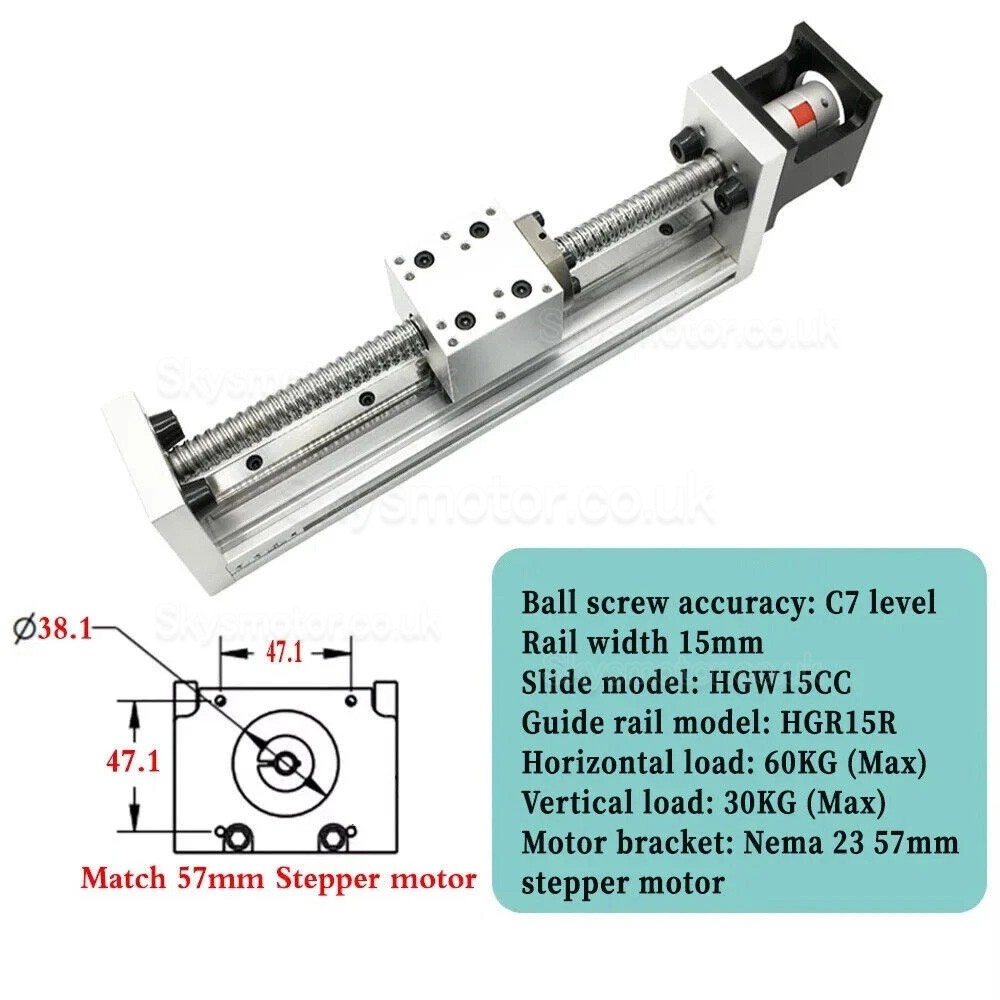

Features a C7 grade SFU1605 ballscrew with a 5mm pitch. Repeat positioning accuracy is stated as ±0.03mm. The assembly includes HGR15R linear guides and HGW15CC sliders.

Motor Integration: The base has pre-drilled mounts for Nema 23 stepper motors. The design has a 60mm width.

The base plate is made from aluminum alloy. A plum coupling is included.


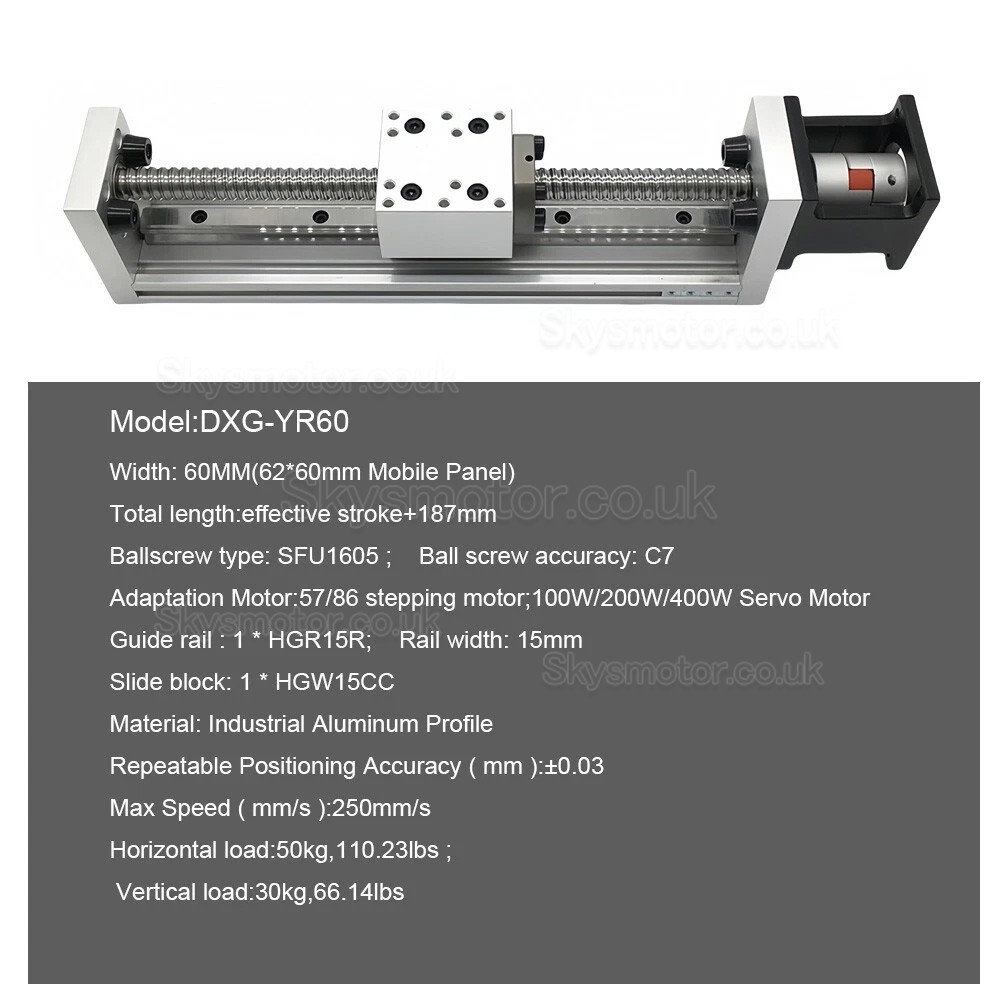

Parameters:

Model: DXG-YR60

Ballscrew Type: SFU1605 (Diameter: 16mm, Pitch: 5mm)

Ballscrew Accuracy: C7 grade

Effective Stroke: 100mm - 300mm (Optional)

Total Length: Effective Stroke + 187mm

Mobile Panel Size: 60mm x 62mm

Slide Width: 60mm

Guide Diameter: 15mm

Guide Type: HGR15R

Slider Type: HGW15CC

Horizontal Load: 60 kg

Vertical Load: 30 kg

Repeat Positioning Accuracy: 0.02-0.03mm;

Supported Motor Bracket: Nema 23 stepper motor; 60-series servo motor;

Ballscrew and Linear Rail Material: Carbon steel, Bearing steel;

Base Plate Material: Aluminum alloy;


Applications:

This sliding table may be used in areas such as CNC machinery, industrial automation systems, 3D printers, packaging equipment, welding rigs, and DIY projects.

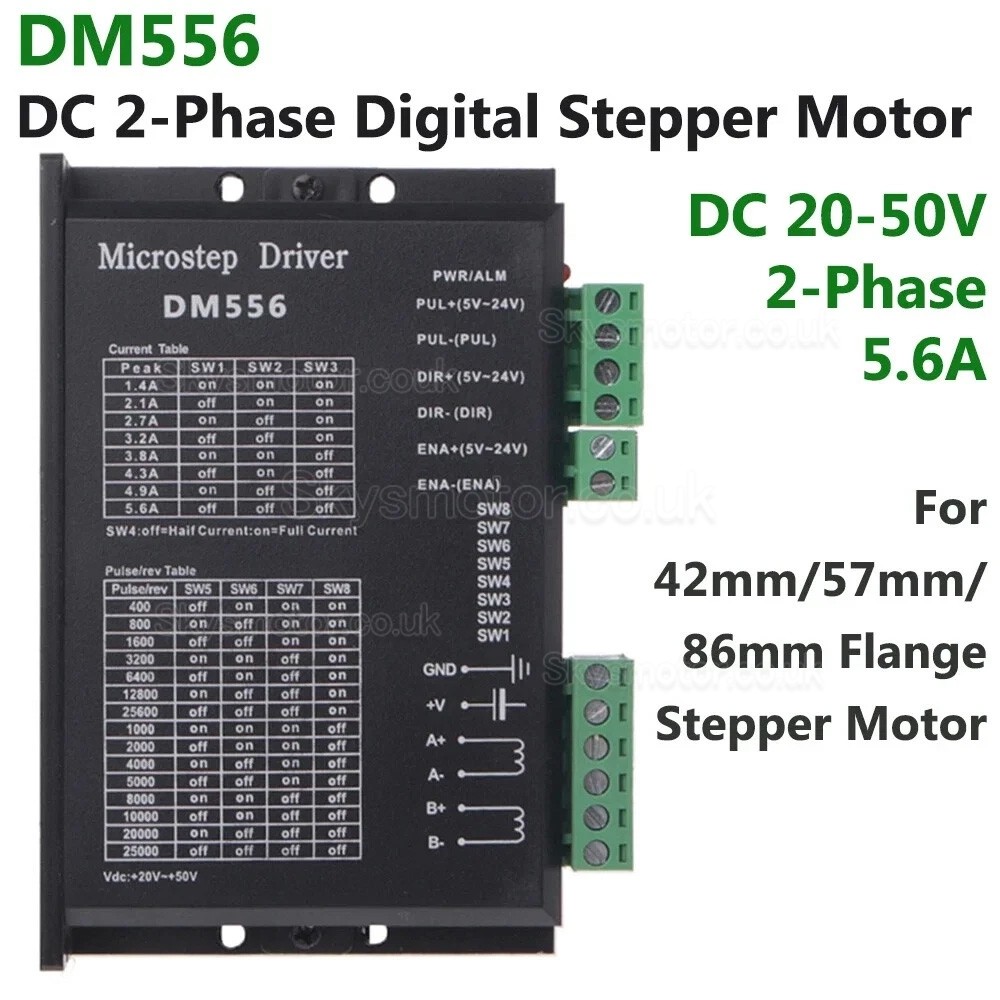

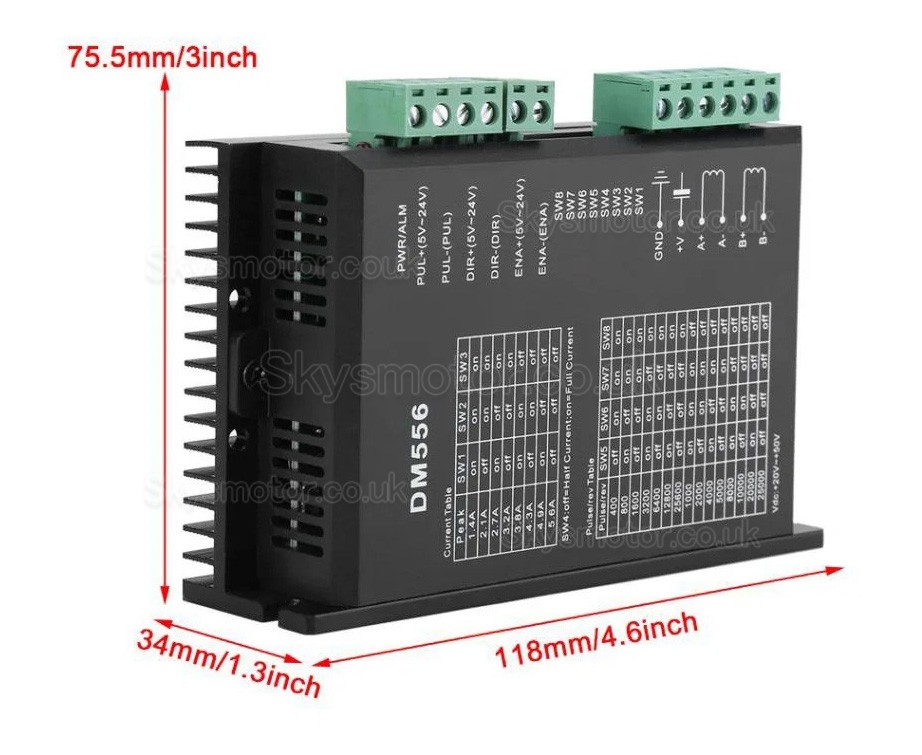

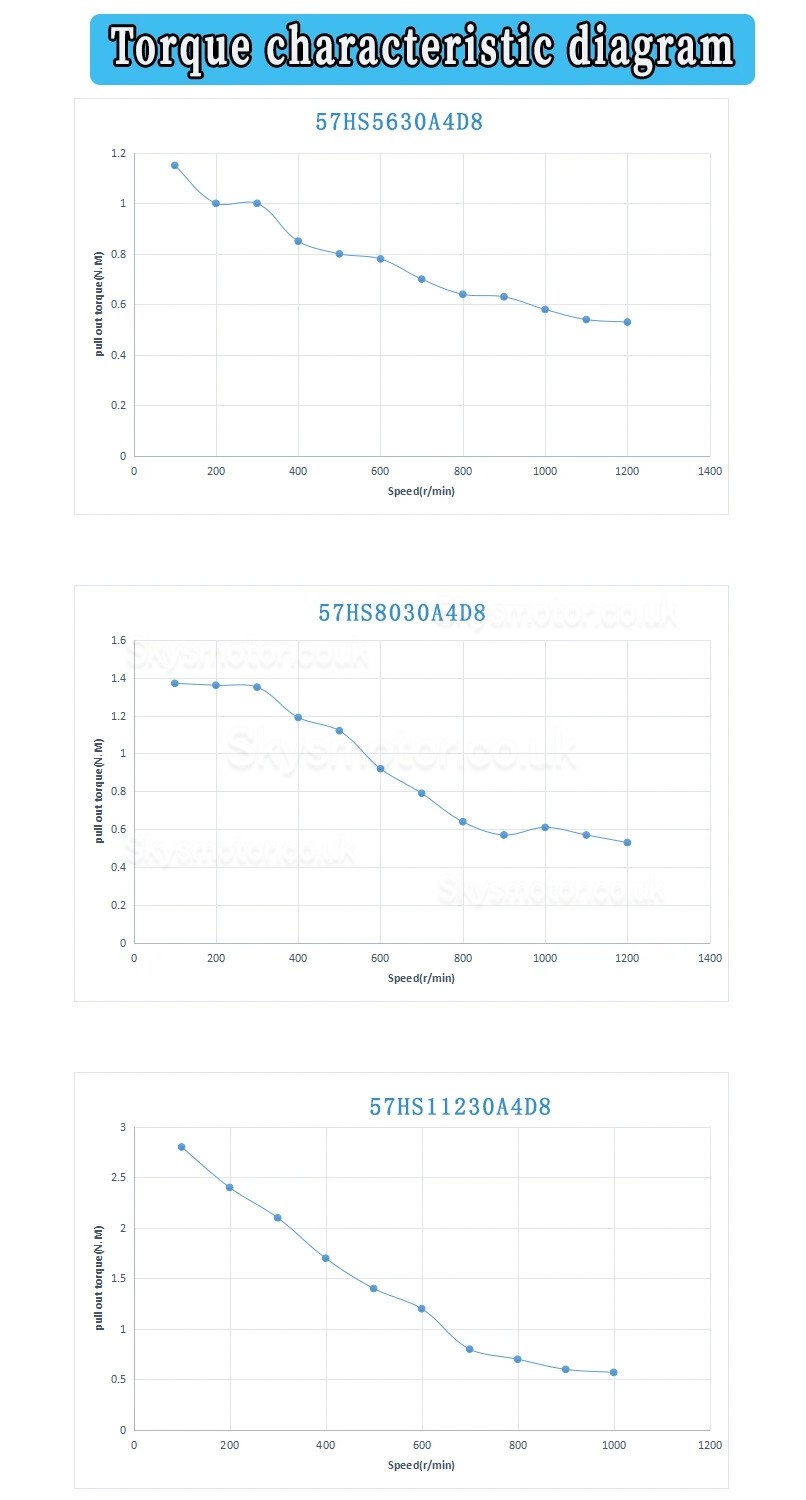

DM556 Motor Driver Parameters:

Model: DM556

Adapted motor: 42mm/57mm/86mm flange stepper motor

Input voltage: DC 20-50V

Output current: 1.0-5.6A, 8 levels adjustable, 0.5A resolution

Driver method: Bipolar constant current PWM drive

Pulse response frequency: 200kHz (Max)

Insulation resistance: 500MΩ

Insulation strength: 500V/min

Dimensions: 11875.534mm / 4.63.01.3in

Weight: Approx. 270g / 9.5oz

Cooling method: Natural or forced air cooling

Operating temperature: -5℃ to +50℃
