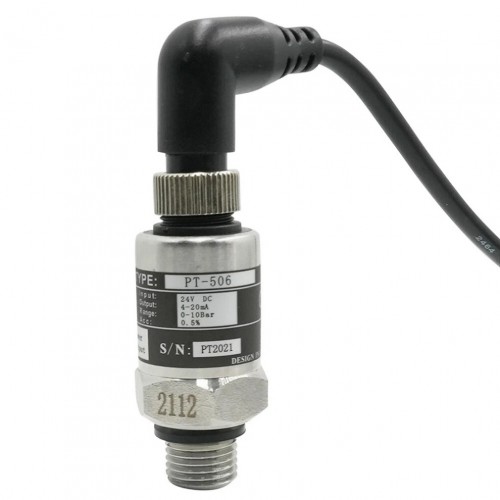

PT506 24V IP68 G1/4 Pressure Transducer Cable Pressure Transmitter Connector for Water Gas Hydraulic
PT506 24V IP68 G1/4 Pressure Transducer Cable Pressure Transmitter Connector for Water Gas Hydraulic
Specification:
Supply voltage: 24V DC (with a wide range of 10-33VDC).
Output signal: 4-20 mA.
Pressure connection: G1/4.
Operating temperature range: -40°C to 110°C.

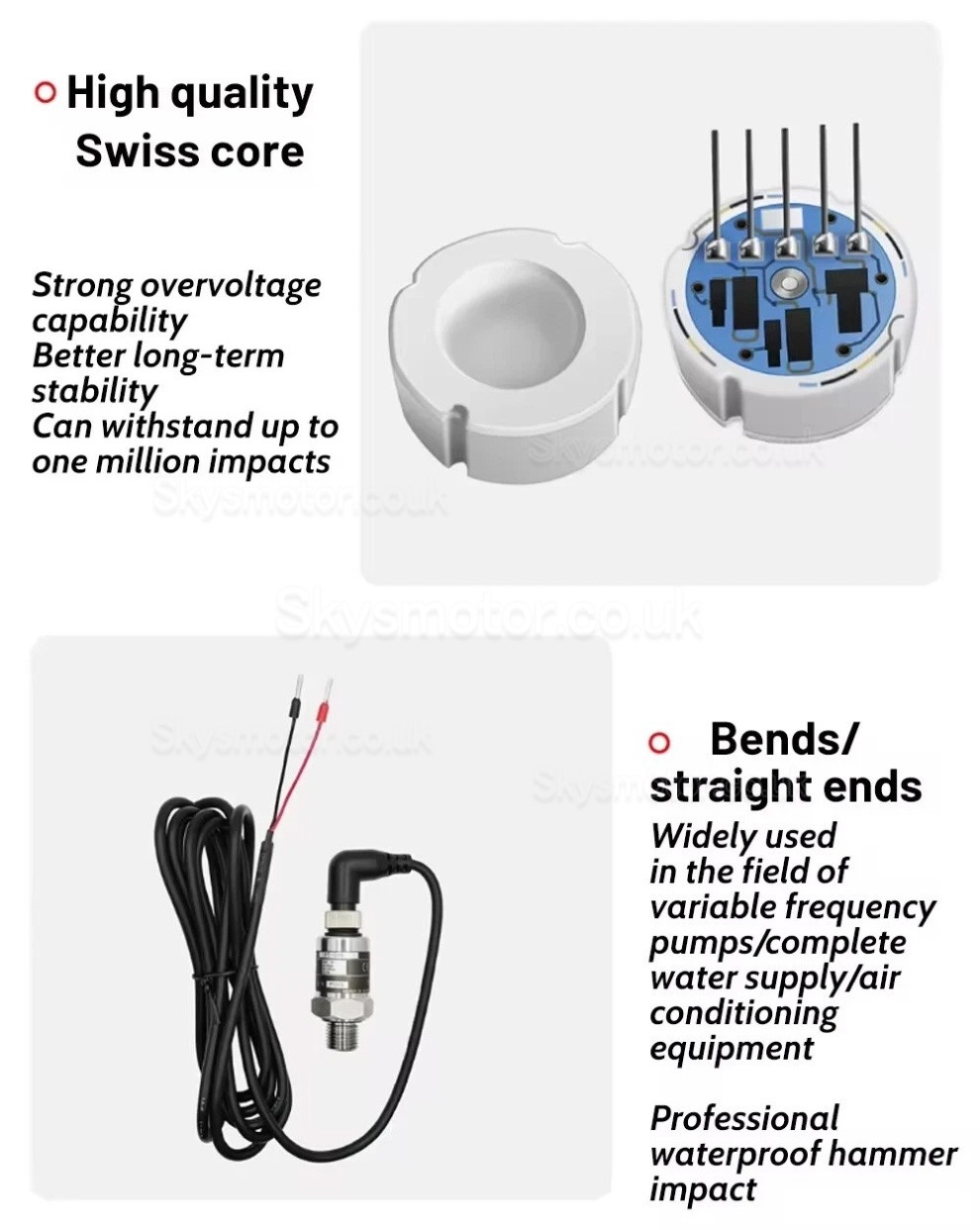

Material: The transducer is constructed from 304 stainless steel and rated IP68 for waterproofing, making it suitable for various environmental conditions.
Measuring Medium: The sensor is designed to convert the pressure of gas, liquid, and other physical media into electrical signals. The transducer supports overload capacity of 2-4 times.
Sensitivity:Built-with a sensitivity of 0.5% F.S.
Applications:
Air compressors and pumps
Liquid pressure and air pressure systems
Energy resources and water treatment systems
Refrigeration equipment
Automated detection systems
Locomotive braking systems
Environmental protection applications
Agricultural and mechanical automation systems
Specifications:

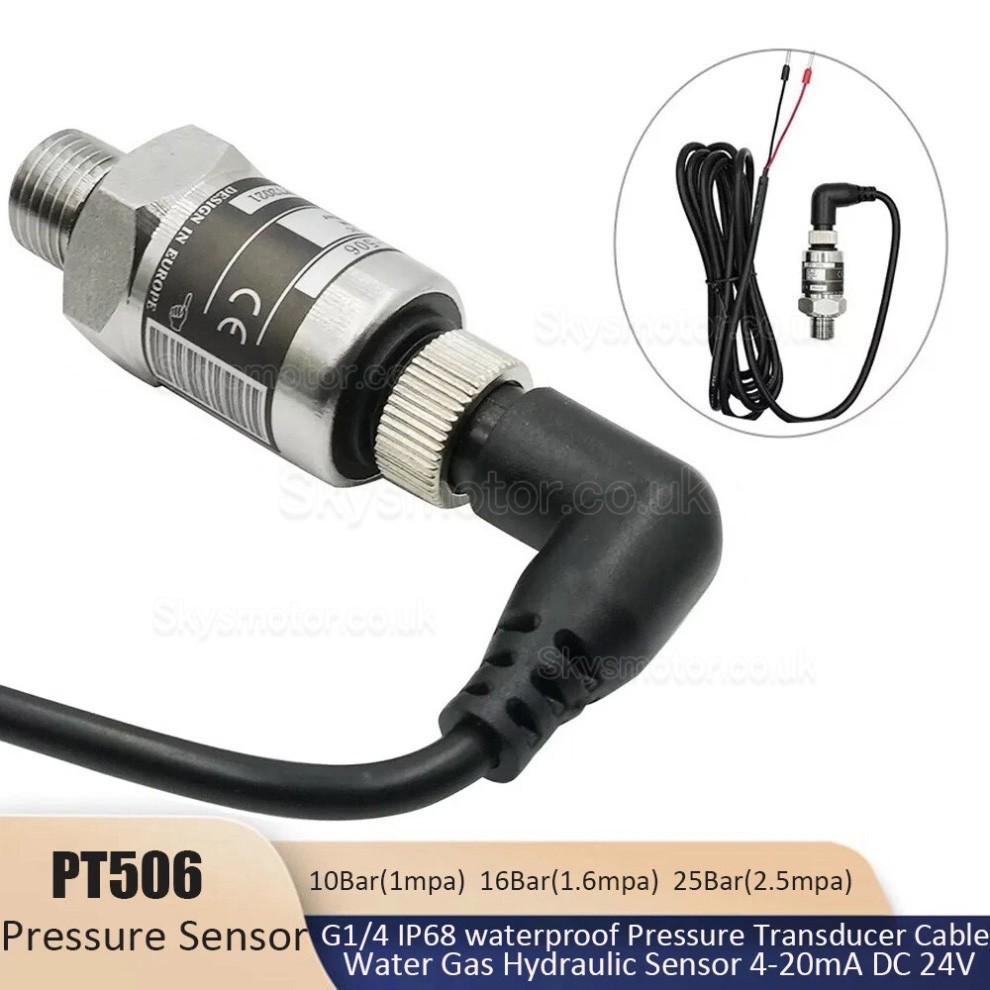

Capacity range: 0-10 Bar (150 psi), 0-16 Bar (235 psi), 0-25 Bar (365 psi)
Precision: 0.5% F.S
Working voltage: 24V DC (wide voltage range: 10-33V DC)
Output signal: 4-20 mA
Protection grade: IP68
Pressure connection: G1/4
Overload capacity: 2-4 times
Operating temperature range: -40°C to 110°C
Housing material: 304 stainless steel
Pressure connection: DIN type
Cable connection: Red (IN+), Black (IN-)
Cable length: 2 meters
Package Includes:

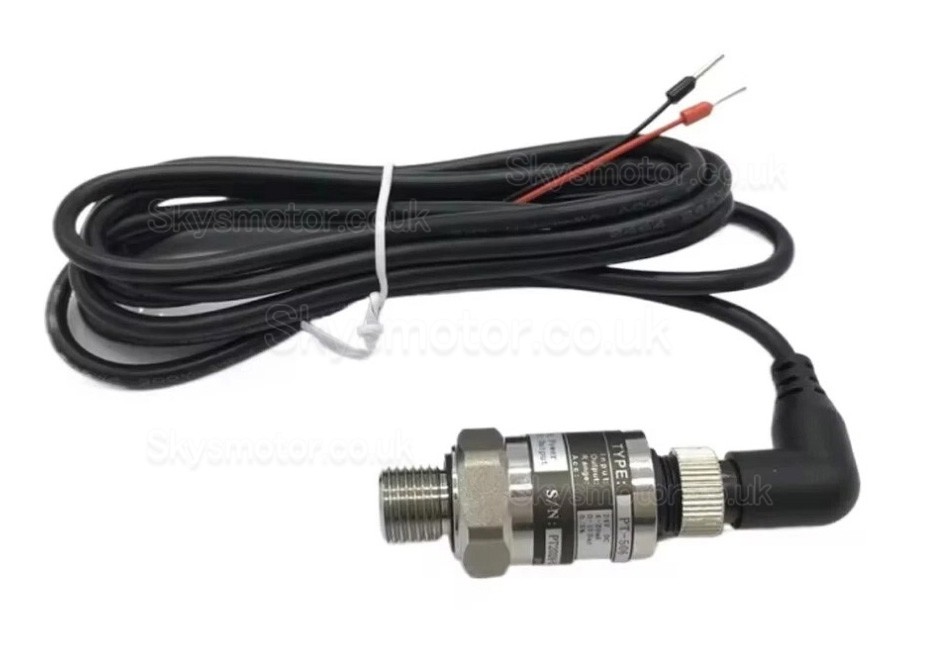

1 x Pressure Transducer with 2M cable




Application:
