Mini Linear Slide Stage OSP001606 Single Guide Rail CNC Ball Screw Module with Neme 23 Stepper Motor

Mini Linear Slide Stage OSP001606 Single Guide Rail CNC Ball Screw Module with Neme 23 Stepper Motor

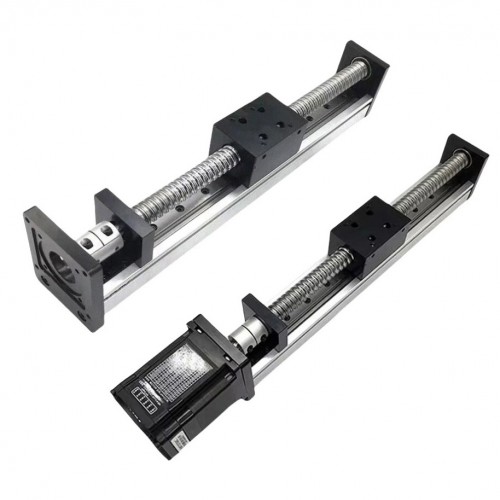

Models:
Only CNC Linear Stage (8mm Coupling)
CNC Linear Stage +Nema 23 Motor(1.2Nm)
CNC Linear Stage +Nema 23 Motor(2Nm)
CNC Linear Stage +Nema 23 Motor(3Nm)

Features:
C7-grade ballscrew with repeat positioning accuracy of 0.02–0.03mm
Stroke options of 100–300mm for flexible installation

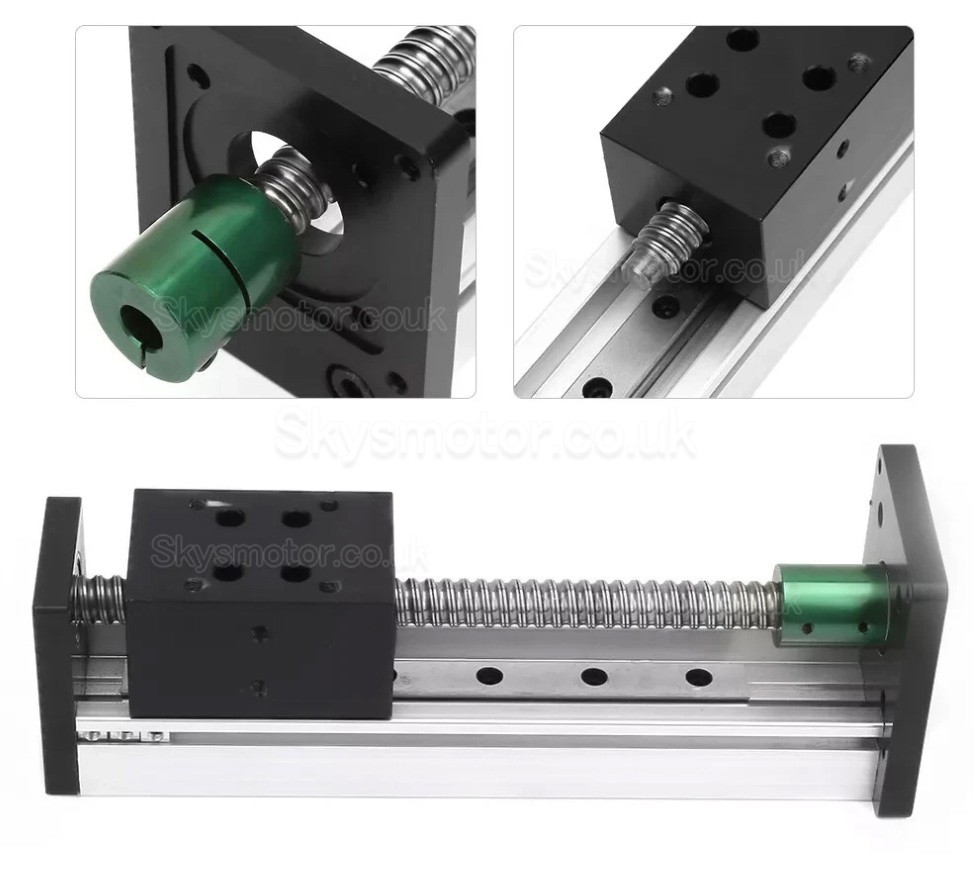

Guide system using MGW12R rails and MGW12C sliders for stable linear motion
Structural material made of industrial aluminum profile for wear resistance
Optional integrated NEMA23 stepper motor with 8mm shaft, 3A current, and 1000-line encoder
Supports use in CNC, laser cutting, 3D printing, and automation systems

Application:
The DXG6042 linear slide stage actuator uses an SFU1605 ballscrew with C7-grade precision. It is designed for CNC machinery, automation systems, and related applications requiring controlled linear motion.

Parameters:

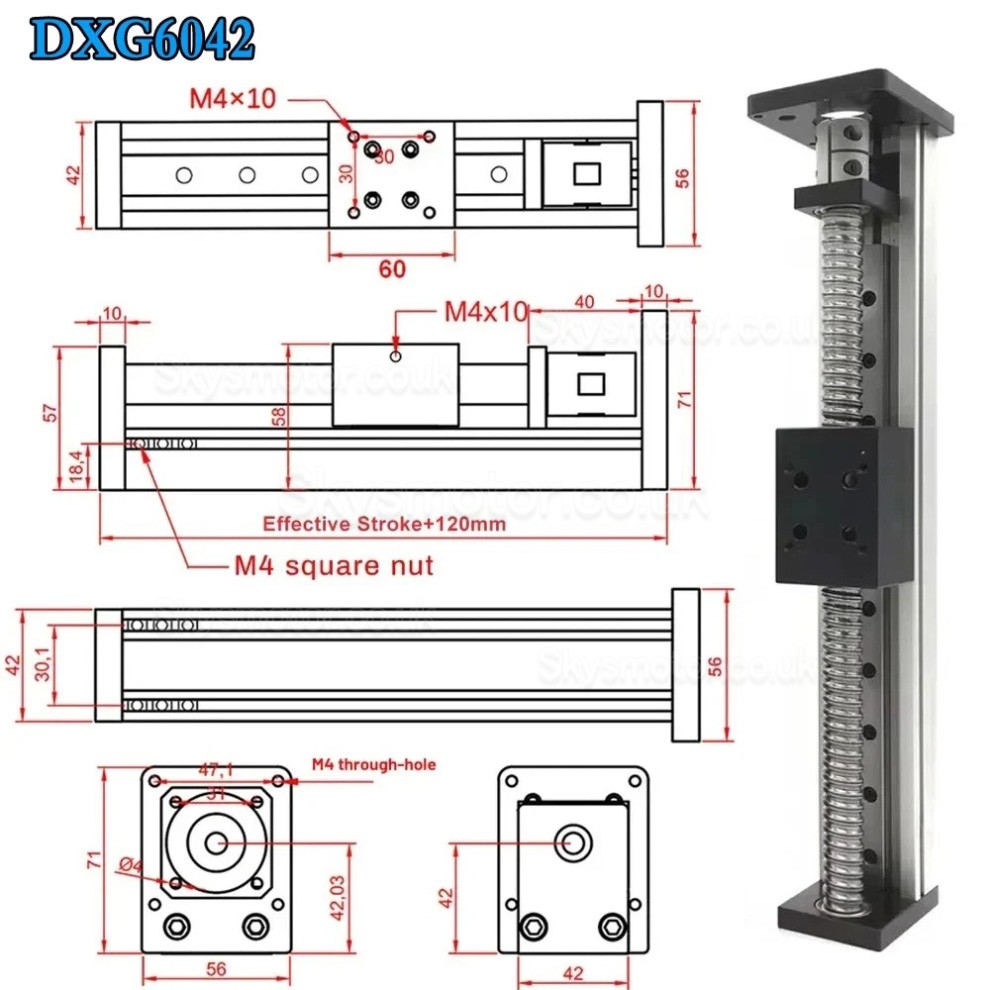

Model: DXG6042 (42mm width)
Ballscrew Type: SFU1605 (Screw Diameter 16mm, Pitch 5mm; one screw rotation moves the panel 5mm)
Ballscrew Accuracy: C7 Grade
Effective Stroke: 100–300mm (optional)
Total Length: Effective Stroke + 120mm
Motor Compatibility: Supports NEMA17 / NEMA23 stepper motors
Mobile Panel Size: 60×42mm
Module Width: 42mm
Guide Diameter: 12mm
Guide Type: MGW12R;
Slider Type: MGW12C;
Horizontal Load Capacity: 40kg (max);
Vertical Load Capacity: 20kg (max);
Maximum Speed: 500mm/s;
Repeat Positioning Accuracy: 0.02–0.03mm;
Material: Industrial Aluminum Profile;
