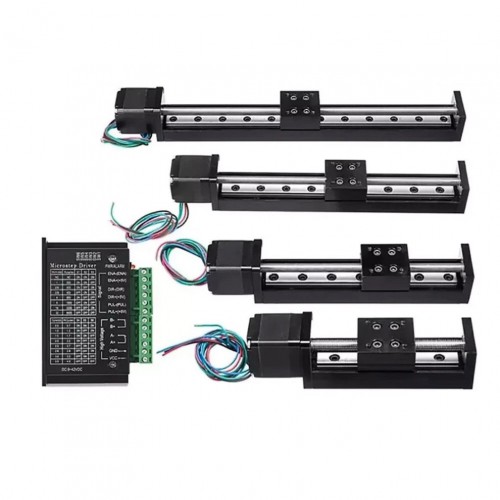

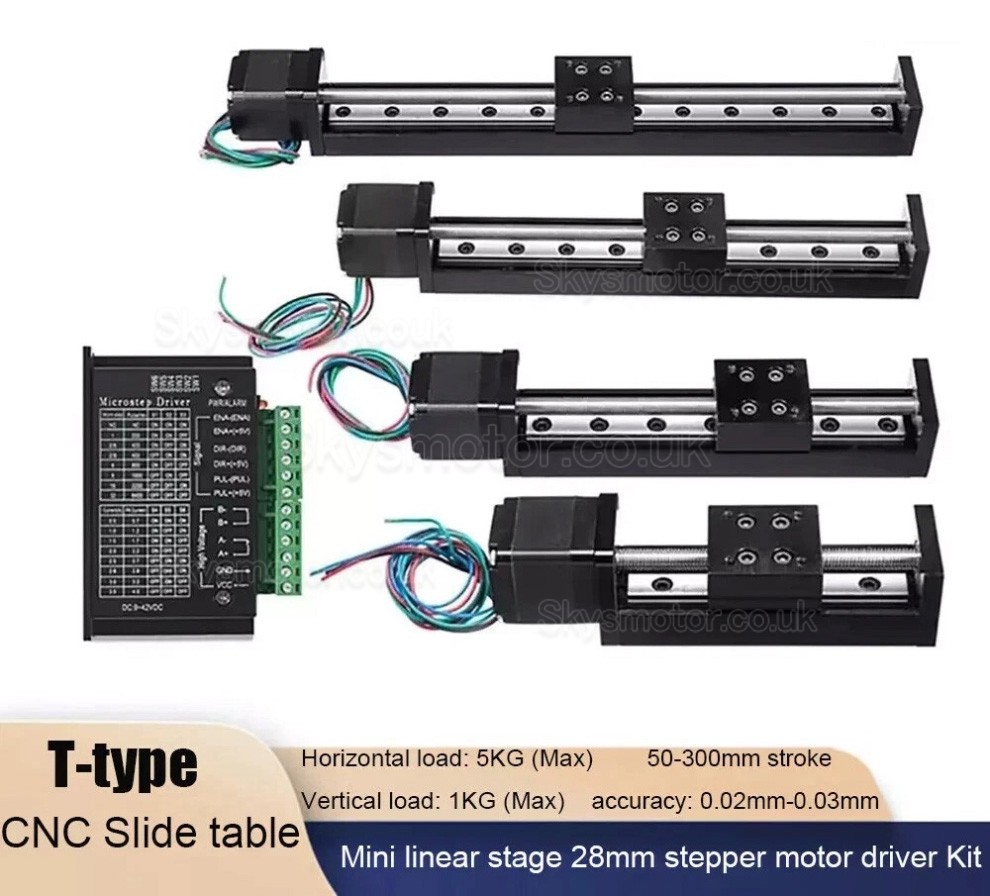

CNC Trapezoidal Screw Slide Table OSP001607 Motorized Linear Stage with Nema 11 Stepper Motor

CNC Trapezoidal Screw Slide Table OSP001607 Motorized Linear Stage with Nema 11 Stepper Motor

Slide Table Feaures:
Compact Linear Guide Slide Module (30mm width).
Aluminum alloy base with bearing steel track. Horizontal load capacity 5kg, vertical load capacity 1kg. Effective stroke range 50–300mm (adjustable).
Equipped with a handwheel and travel scale for manual adjustment. Uses a 6mm trapezoidal lead screw with optional pitches of 1mm, 2mm, 4mm, 6mm, and 12mm.
Leads of 1mm and 2mm provide self-locking when powered off.
Built-in NEMA11 (28mm) stepper motor with 0.6A current and 0.07N·m torque.

Applications:
Applicable to automation systems such as 3D printers, CNC equipment, laser cutters, screwdrivers, soldering machines, and dispensing devices.

Parameters:
Model: T06
Slide Type: Trapezoidal screw slide table
Horizontal Load: 5kg (max)
Vertical Load: 1kg (max)
Effective Stroke: 50–300mm

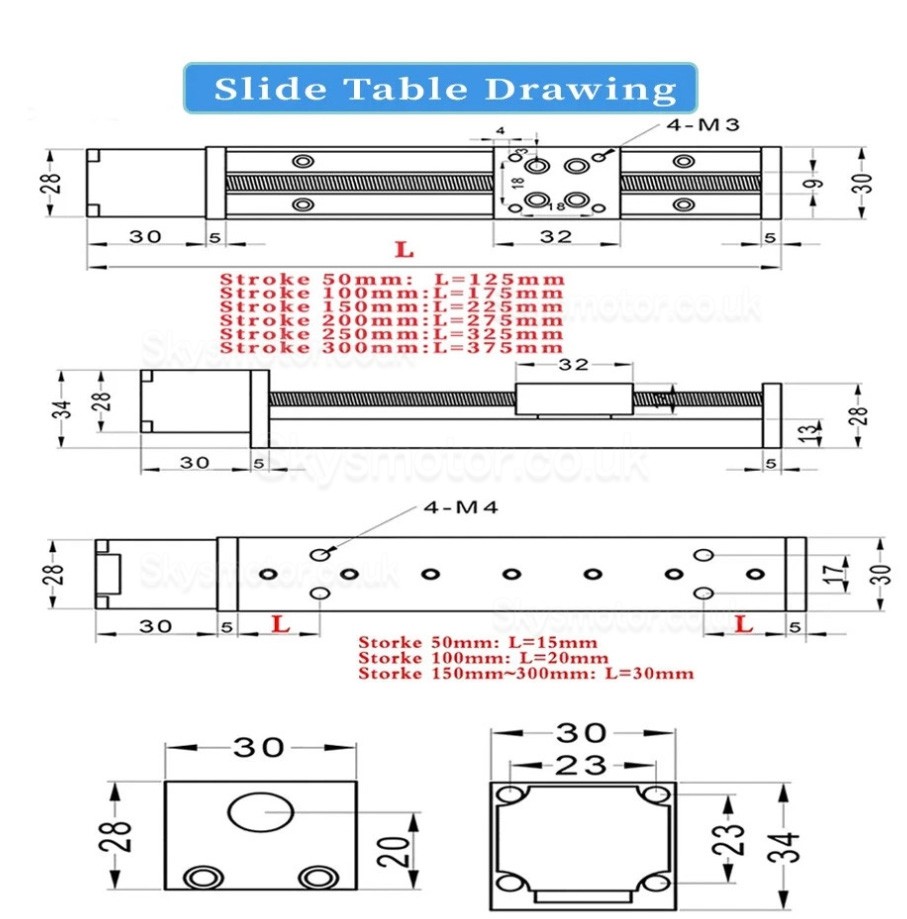

Total Length: Effective Stroke + 75mm
Panel Size: 30×32mm
Repeat Positioning Accuracy: 0.02–0.03mm
Maximum Speed: 80mm/s
Rail Width: 6mm
Block Type: MGN8H
Screw Precision: C7
Pitch: 1/2/4/6/12mm (1 rotation moves the panel by the corresponding pitch value);

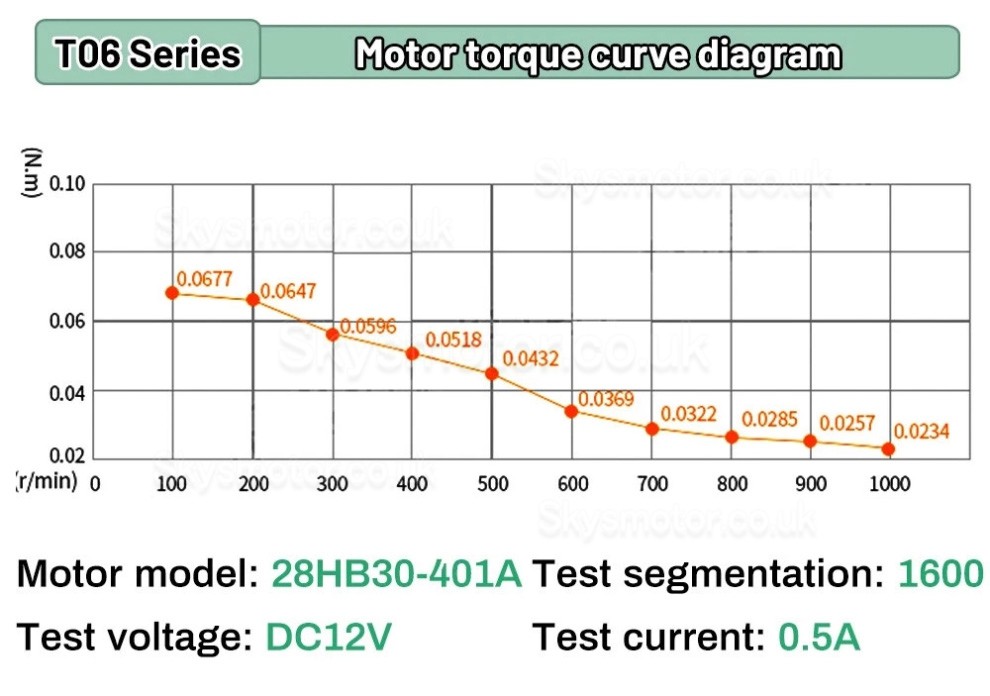

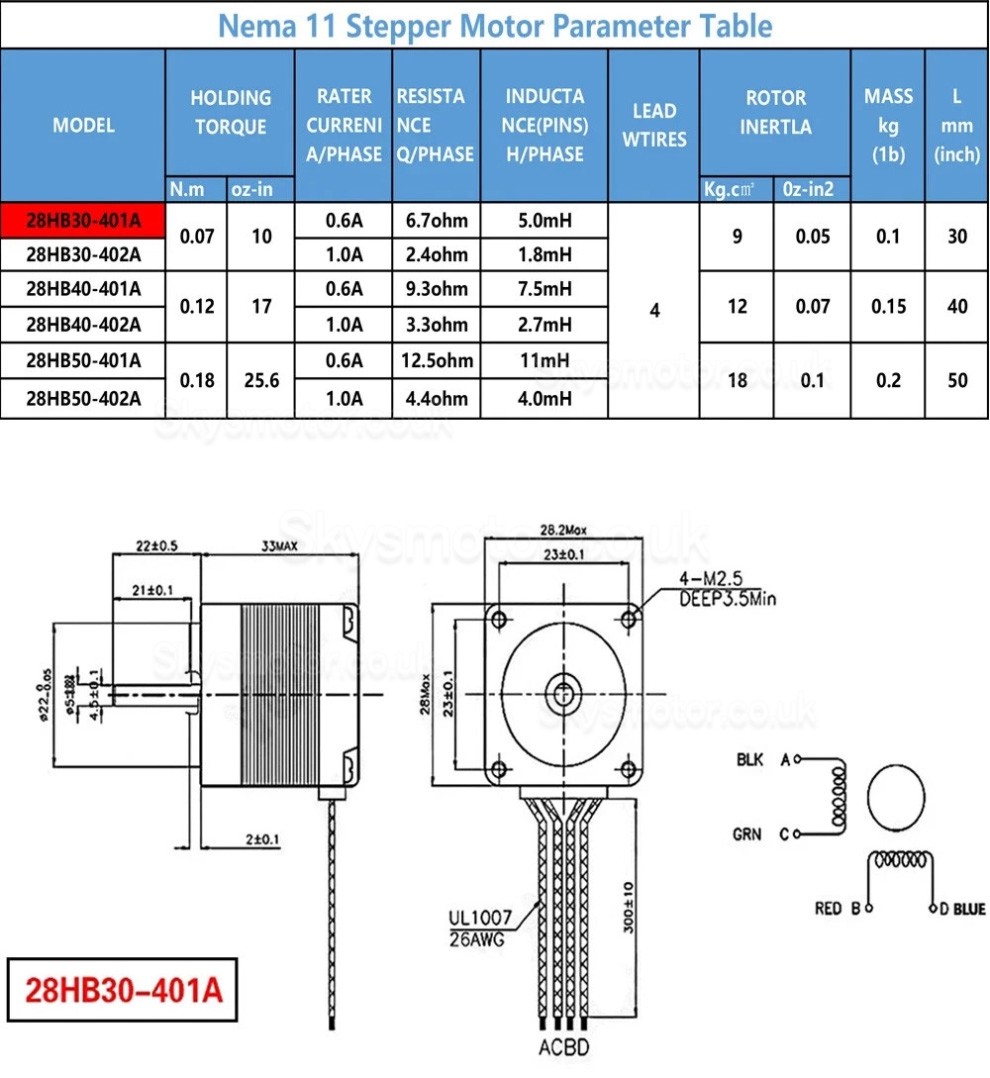

Stepper Motor Parameters
Model: 28HB30-401A (supports 28HB40-401A)
Flange Size: NEMA11 (28mm)
Holding Torque: 0.07N·m
Body Length: 30mm
Shaft Diameter: 5mm
Motor Type: 2-phase motor
Current: 0.6A
Step Angle: 1.8°;
