Nema 34 Right Angle Bevel Gearbox Ratio 2:1/3:1/5:1 for NEMA 34 Stepper/ 80mmServo Motor

Nema 34 Right Angle Bevel Gearbox Ratio 2:1/3:1/5:1 for NEMA 34 Stepper/ 80mmServo Motor

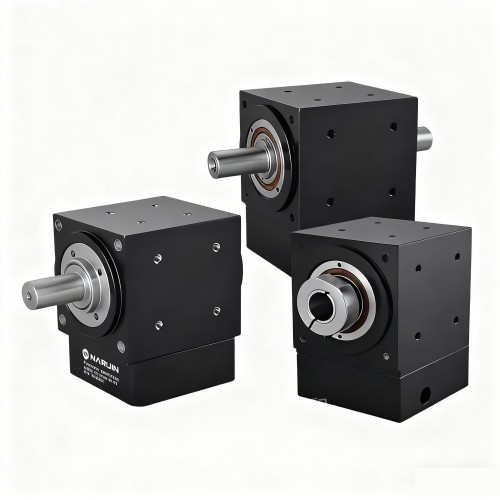

Models:

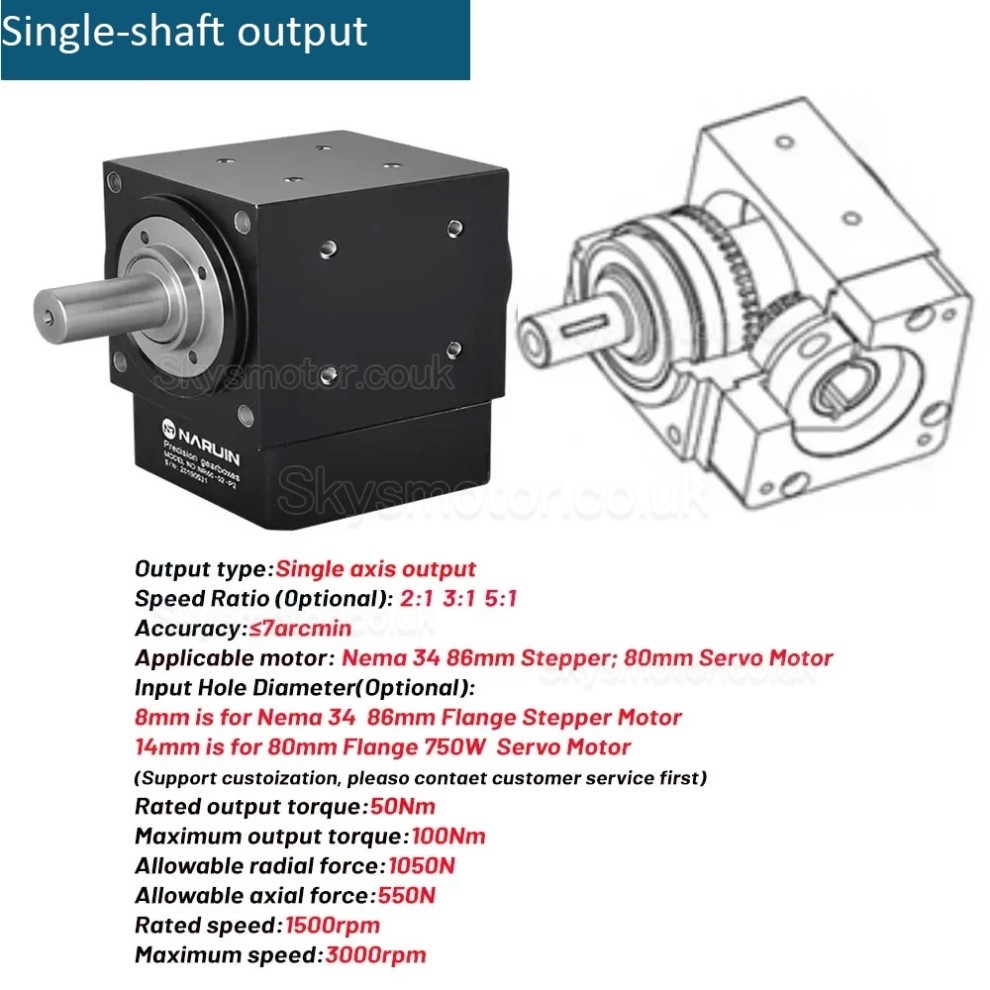

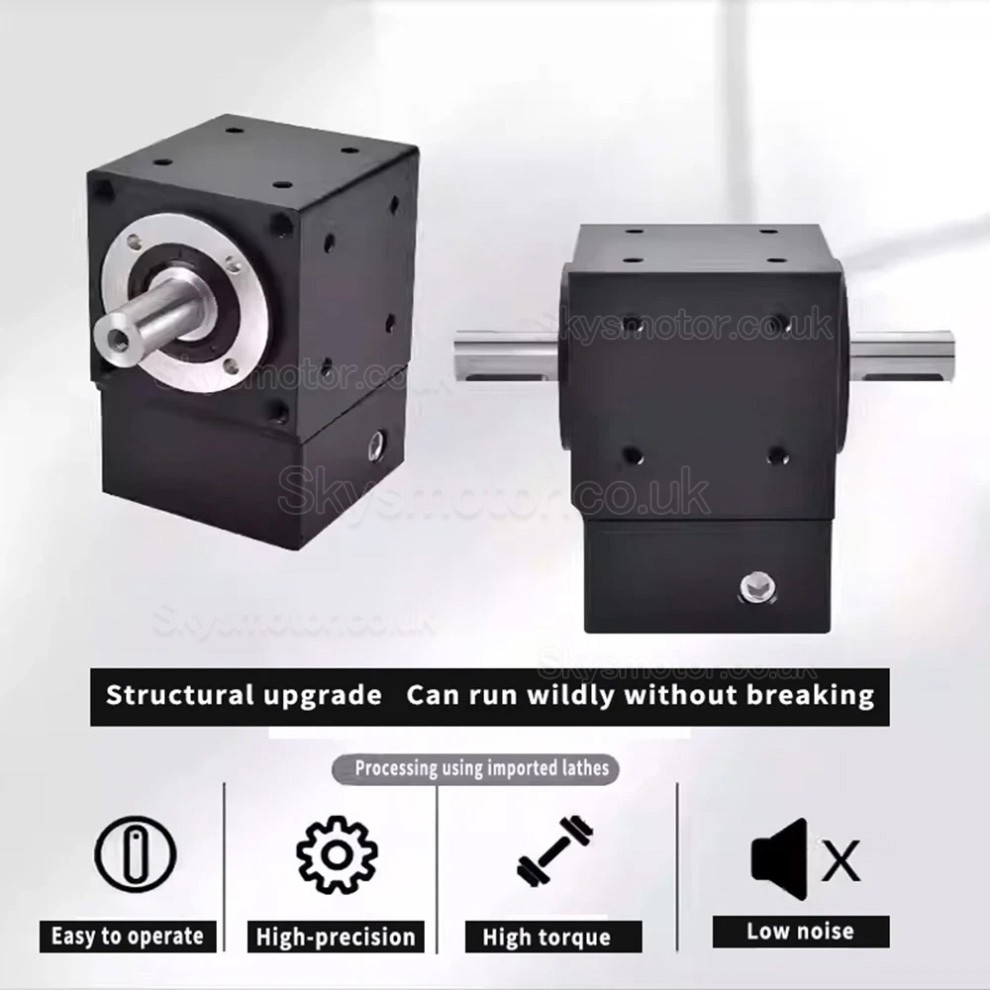

Single Shaft Output

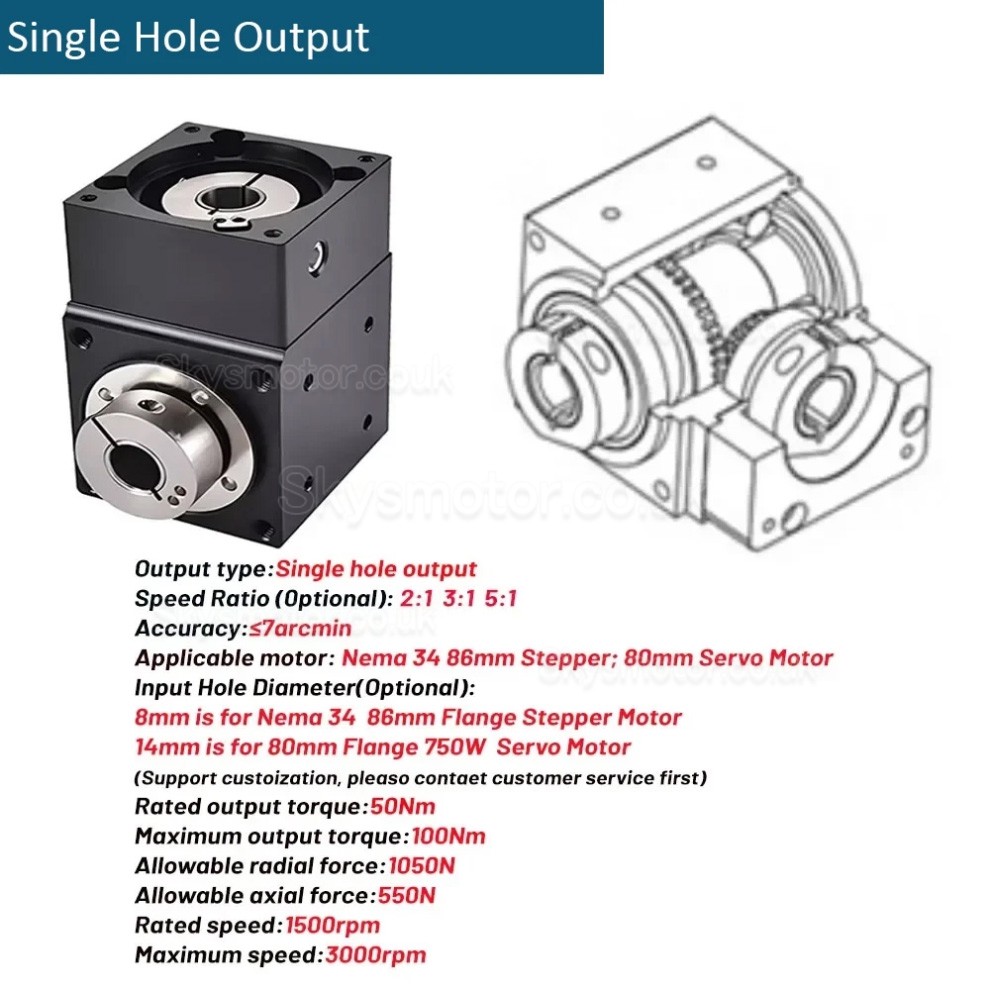

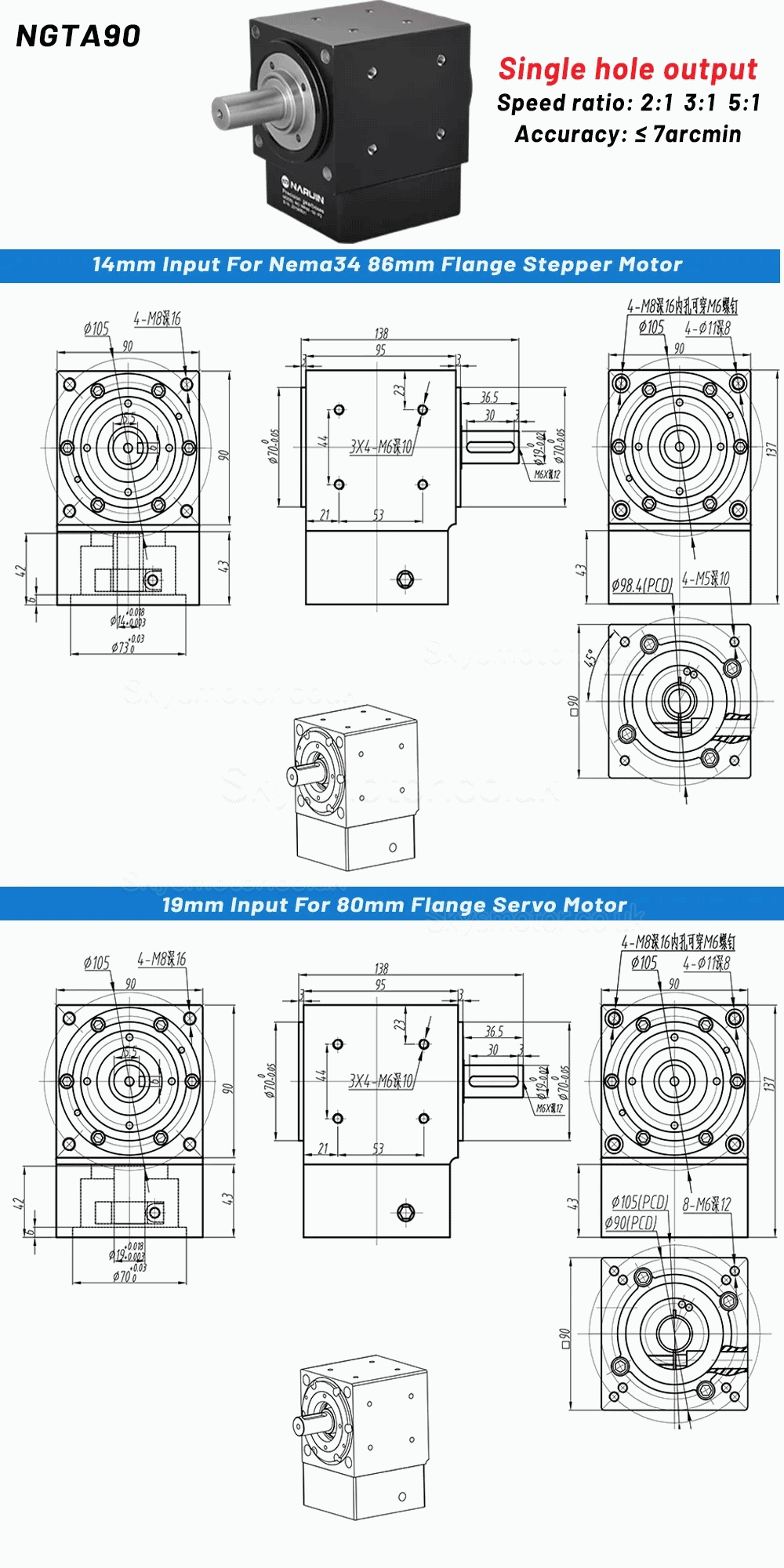

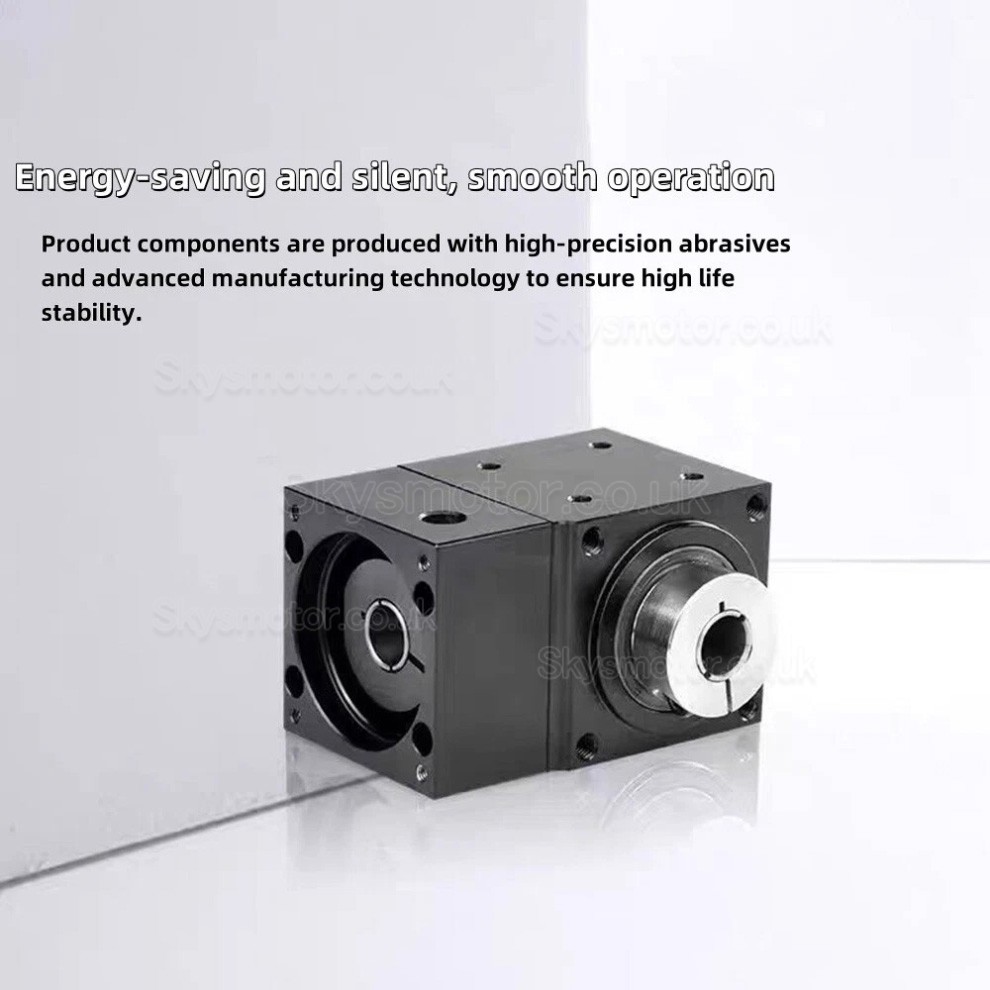

Single Hole Output

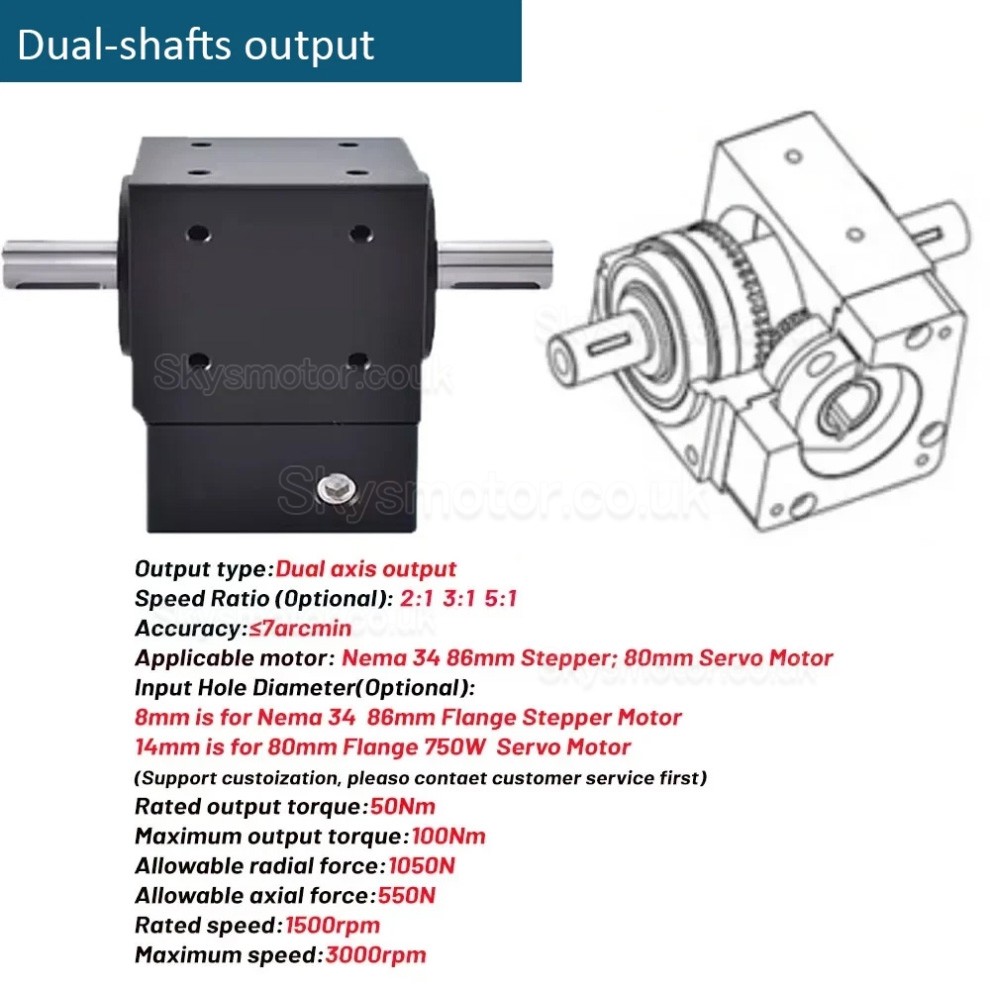

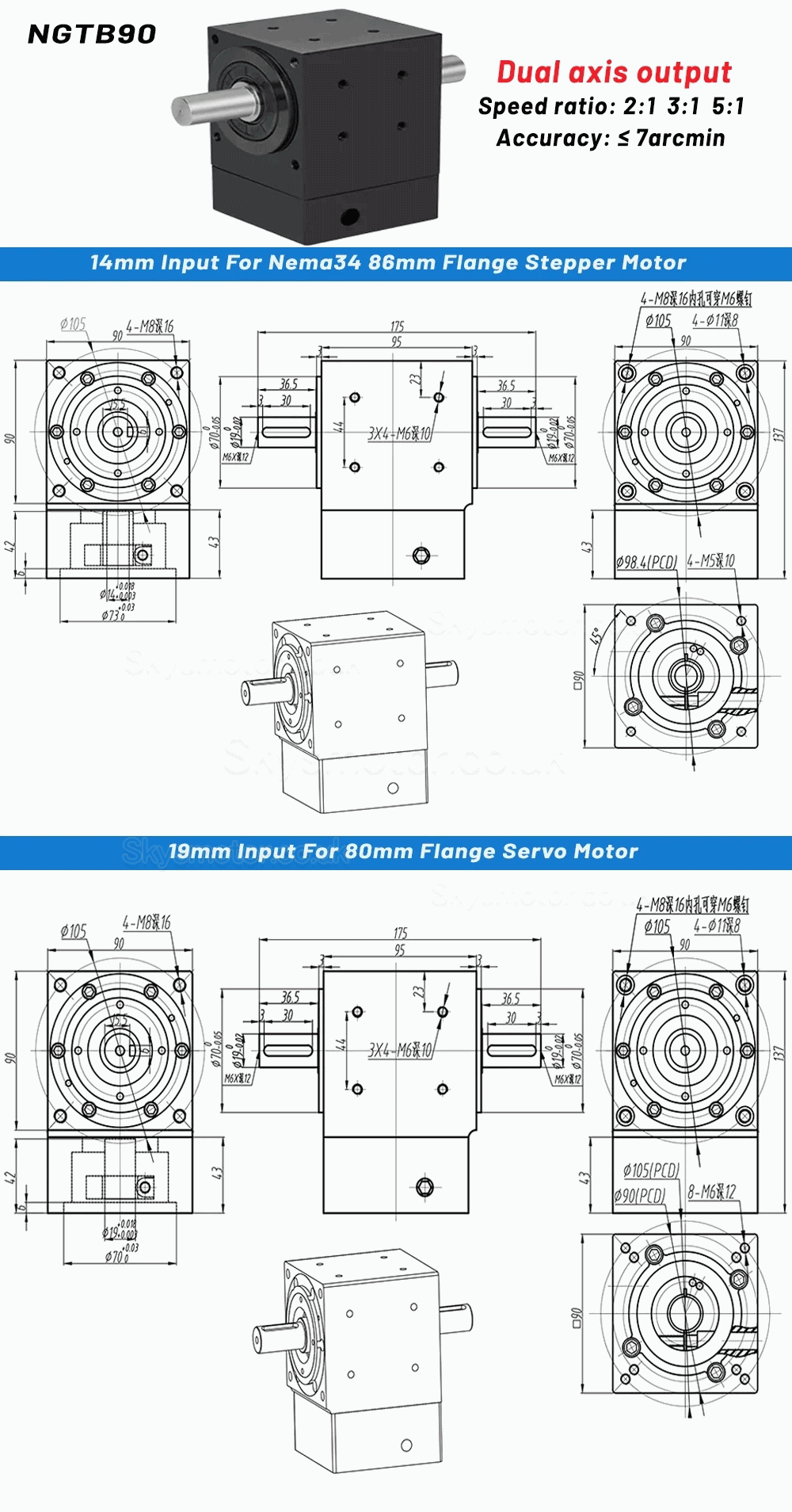

Double Shaft Output

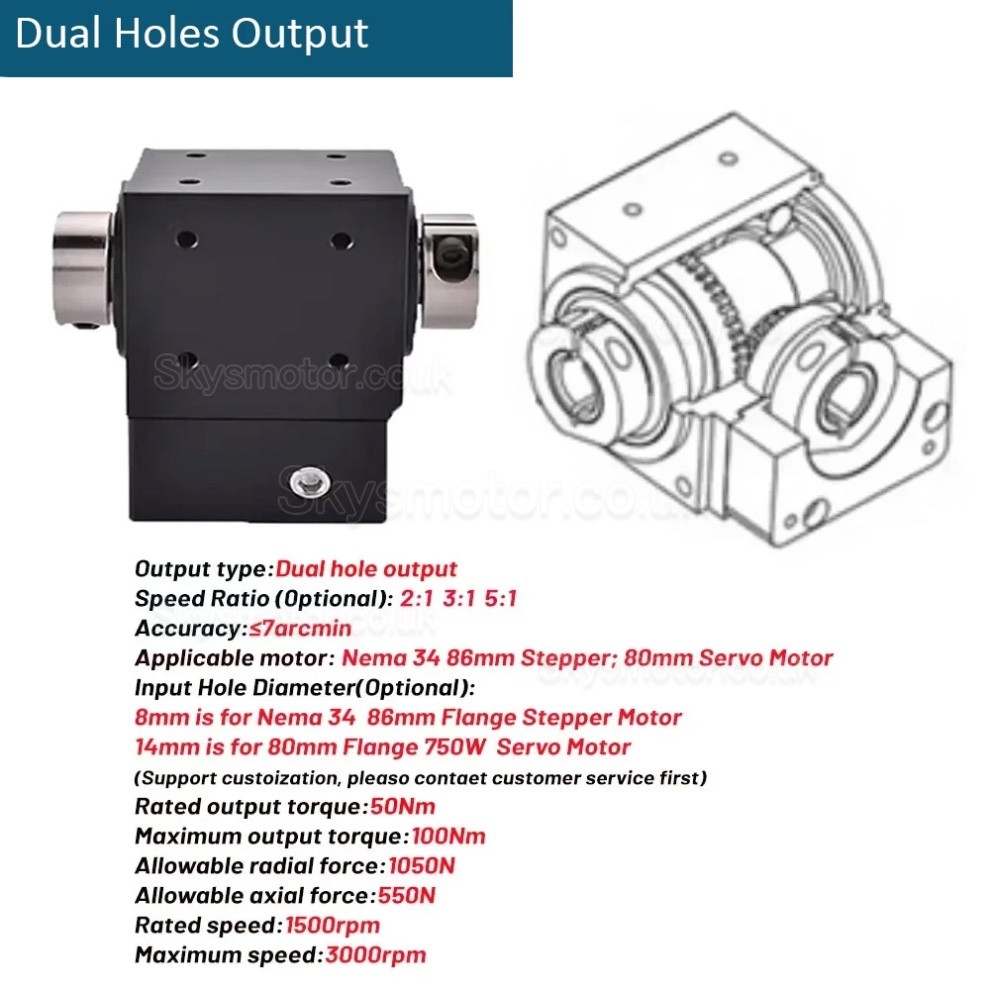

Double Hole Output
For Nema 34 Stepper Motor 14mm Shaft
For 80mm AC Servo Motor 19mm Shaft


Description:

Right Angle Steering Gearbox with backlash ≤7 arc minutes.

Available in single shaft, single hole, double shafts, and double holes output types to support different installation configurations.

Compatible with NEMA 34 86mm stepper motors/80mm servo motor. Ratio 2:1, 3:1 or 5:1 are optional.

Maximum speed: 3000 rpm; Maximum output torque: 25 Nm.

Protection level: IP65; Operation is simple and user-friendly.

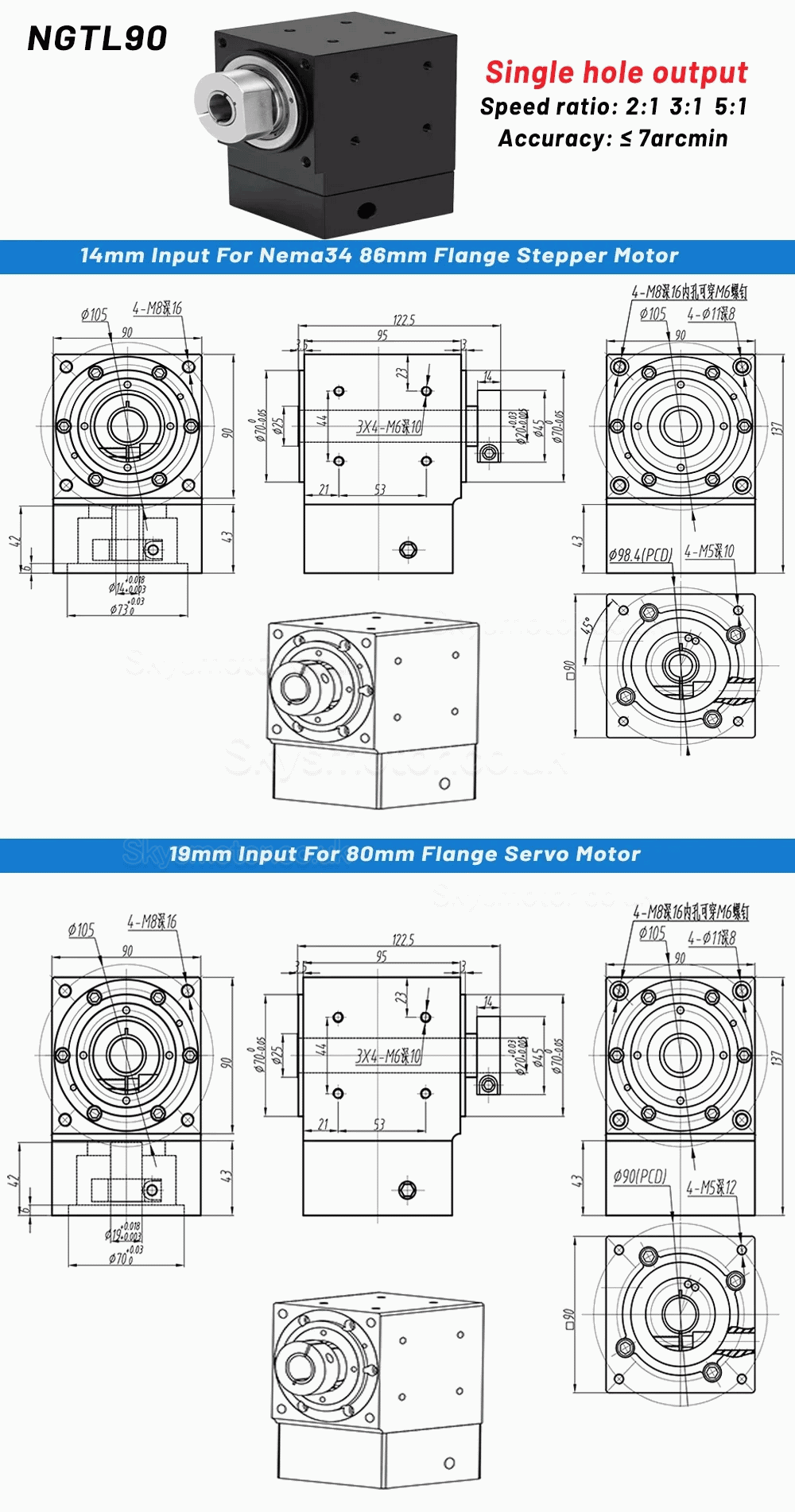

NEMA34 hole output type: nominal ratio 5:1, rated speed 1500 rpm.

Moment of inertia: 0.08 kg·cm²; Allowable axial force: 160 N.

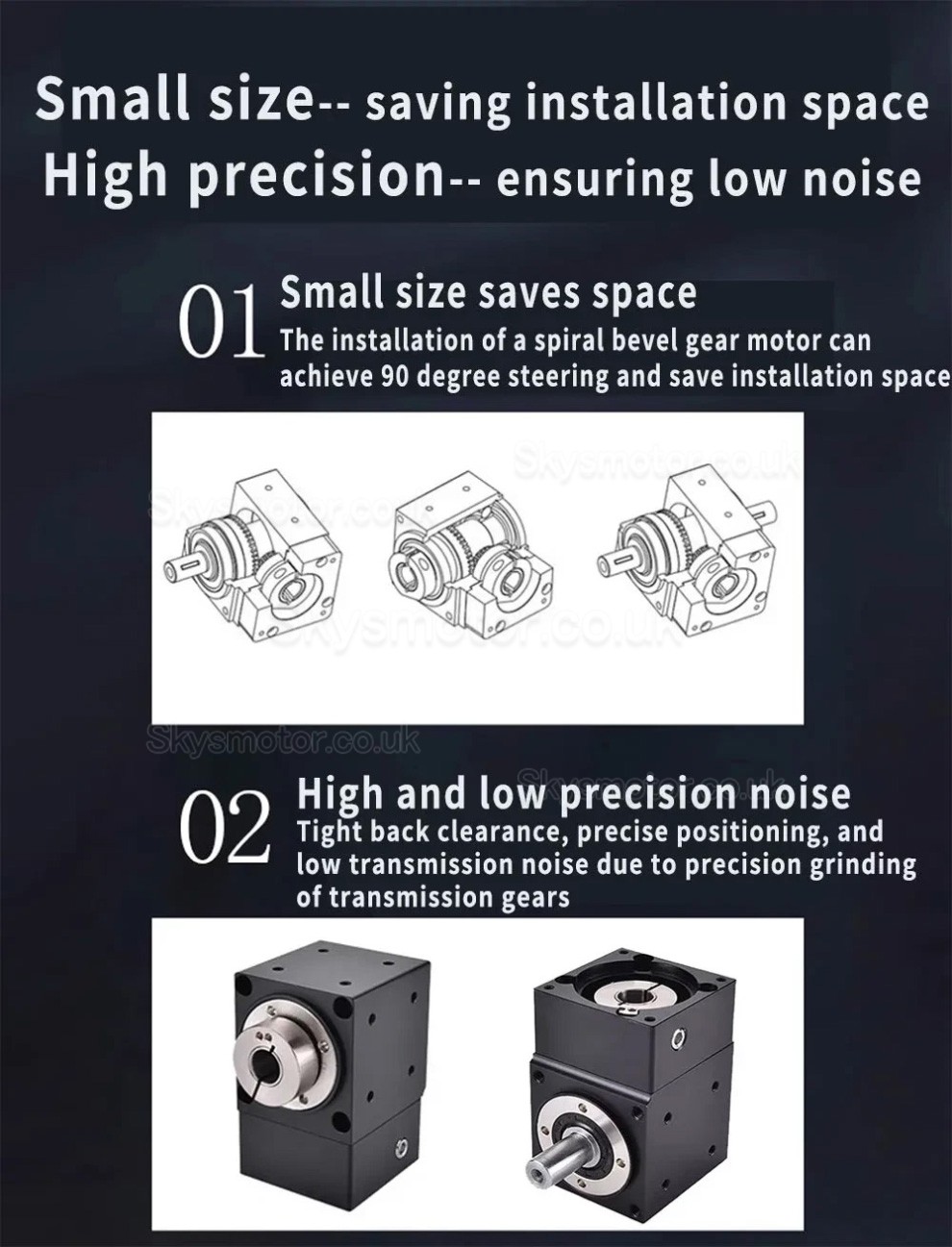

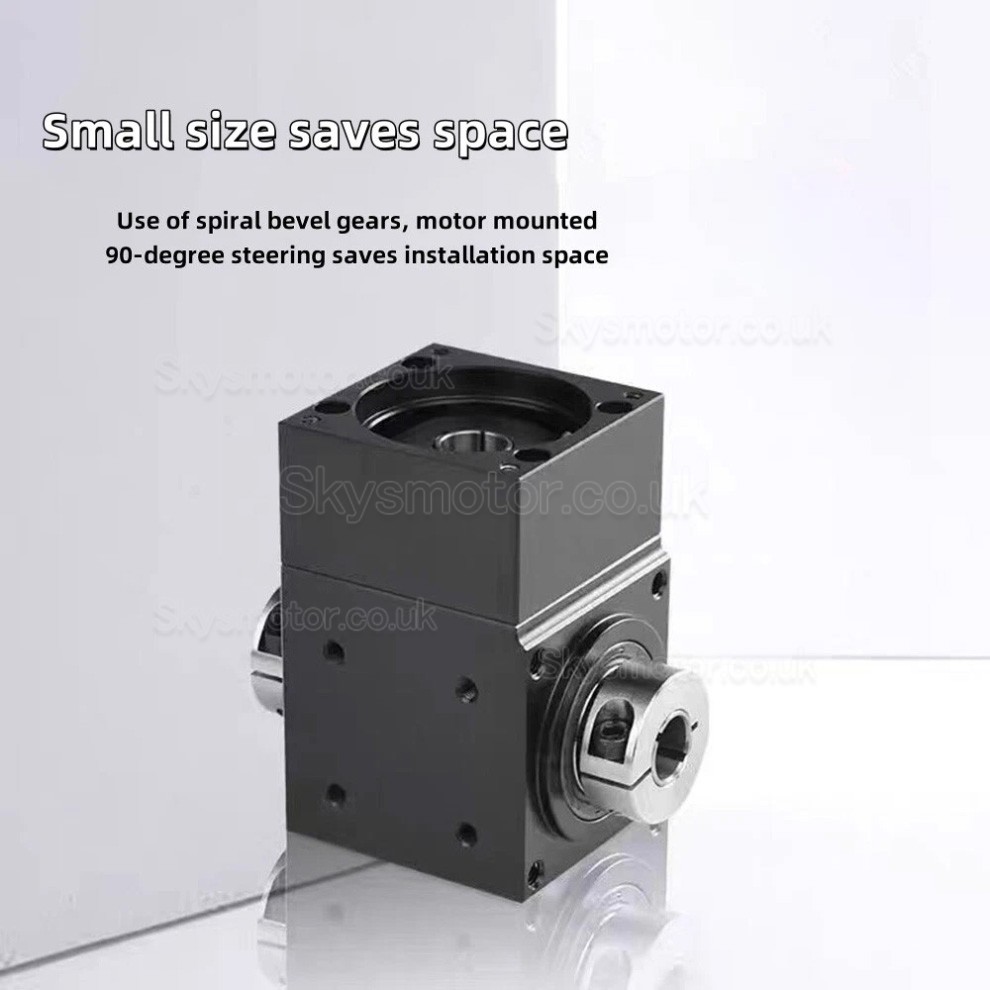

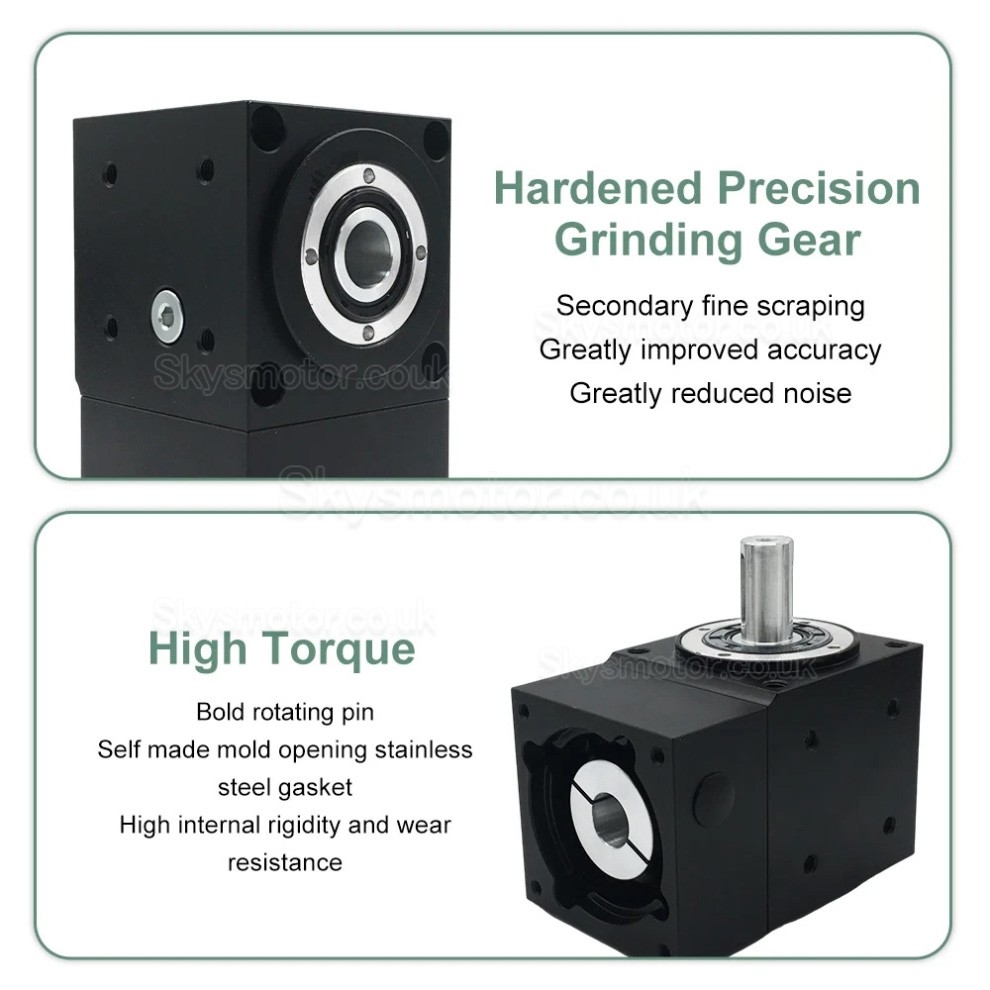

Uses spiral bevel gears to achieve 90° transmission, helping reduce installation space.


Applications:
Industrial Automation: Robotic arms, conveyor systems, pick-and-place machines.
CNC & Machinery: Rotary tables, spindle drives, milling equipment.
Medical Devices: Imaging systems, lab automation requiring precise motion.
Packaging & Printing: High-speed labeling, cutting, and winding mechanisms.


Parameters:
Rated output torque (Nm): 50;
Maximum output torque (Nm): 100;
Rated speed (rpm): 1500;
Maximum speed (rpm): 3000;
Backlash(arcmin): 7;
Allowable radial force (N):1050;
Allowable axial force (N):550;
Moment of inertia (Kg. cm ²): 0.08;
Work efficiency: 97;
Service life h ≥ 20000;
Operating environment temperature: ° C -20~+90;

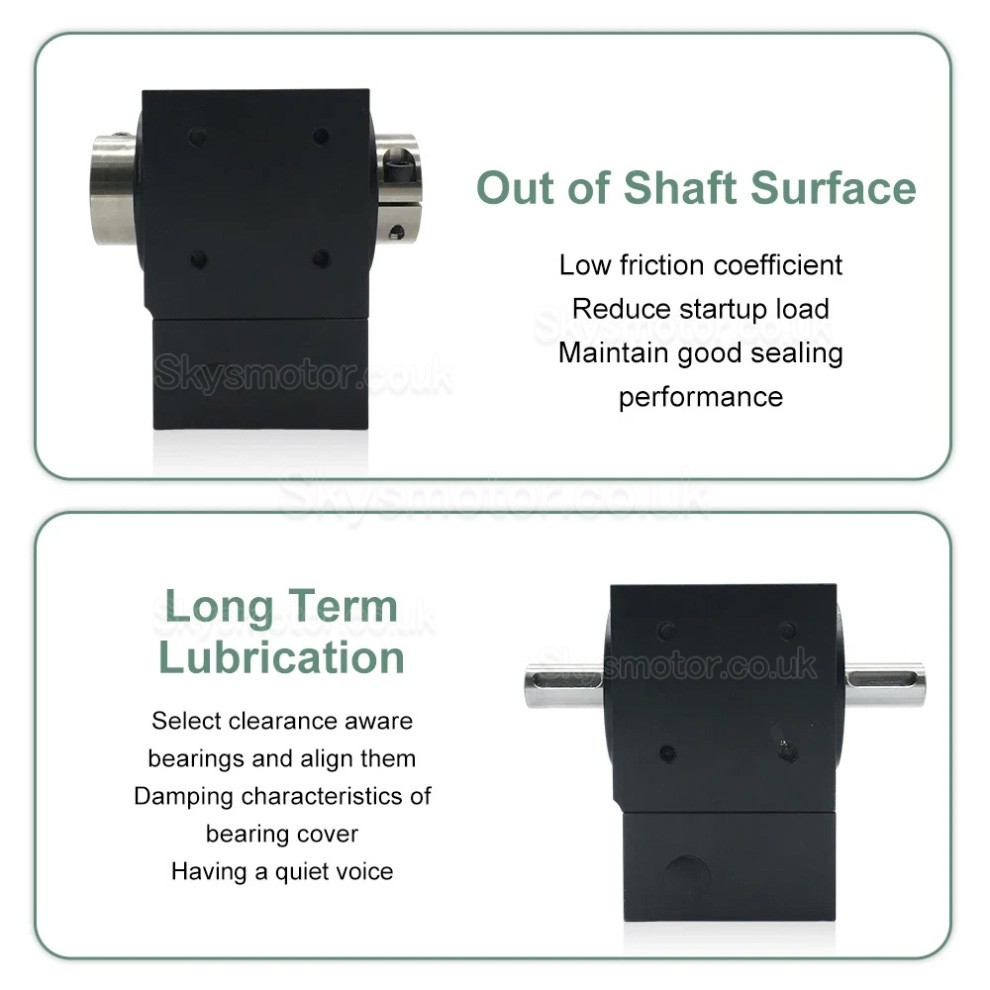

Lubrication method (Lup): Long term lubrication;
Protection level (PC): IP65;
Installation method (MP): in any direction;
Noise Db ≤ 62;
